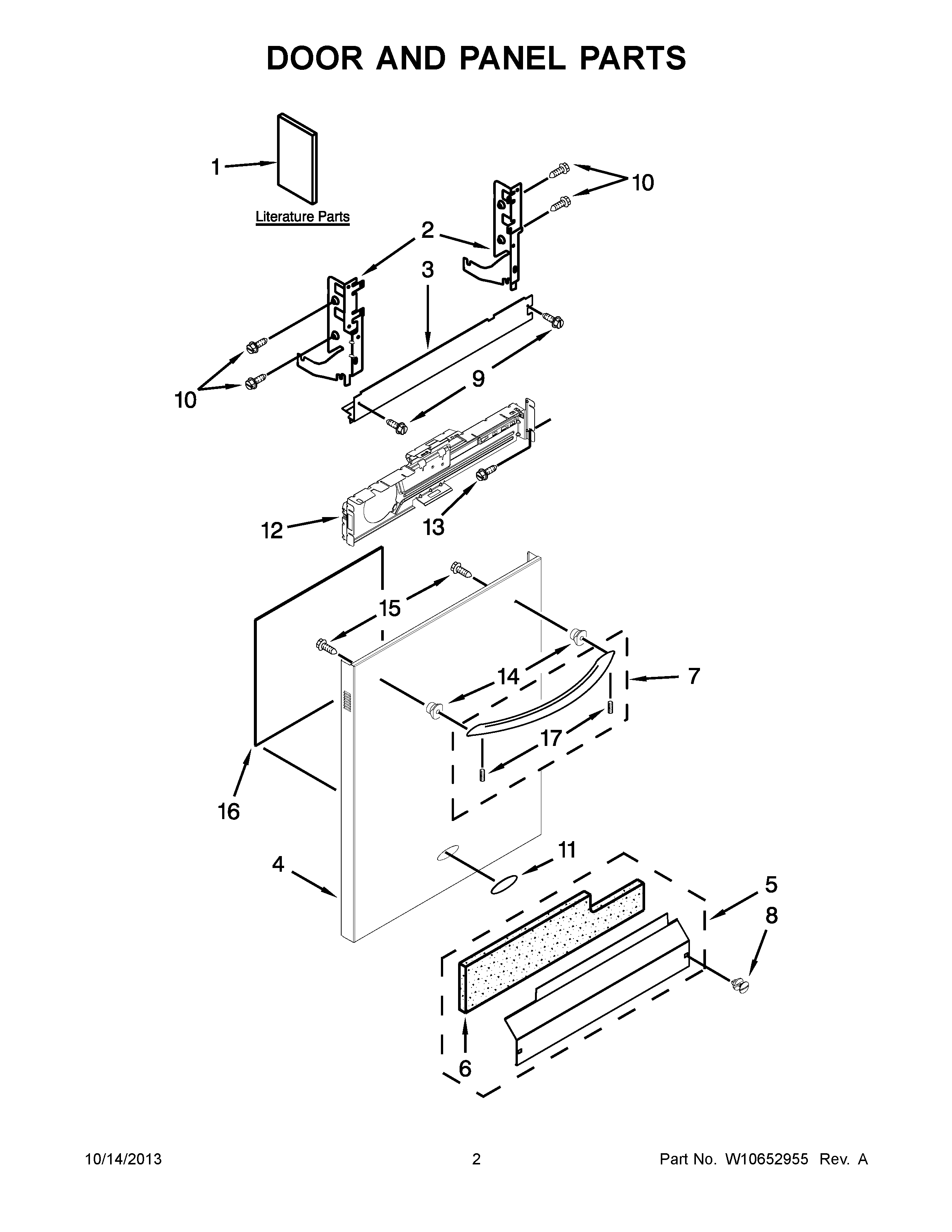

WDT790SLYM3 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1ENERGY GUIDE
1INSTRUCTIONS, INSTALLATION
1USE & CARE GUIDE, ENGLISH/FRENCH
1TECH SHEET, ENGLISH
1TECH SHEET, FRENCH
2W11612302 Whirlpool Dishwasher Door Hinge
2W11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10323562 Whirlpool Dishwasher Panel
5W10827631 Whirlpool Toe Panel
6SHIELD
7HANDLE (STAINLESS)
8WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
9WP489069 Whirlpool Compactor Screw
10WP3390631 Whirlpool Screw
11WPW10393264 Whirlpool Refrigerator Nameplate
12WPW10350242 Whirlpool Dishwasher Control Bracket
13WP3400071 Whirlpool Screw
14W11157086 Whirlpool Dishwasher Door Handle Stud
15W10826179 Whirlpool Dishwasher Screw
16WPW10073520 Whirlpool Dishwasher Insulation Pad
17WP8534008 Whirlpool Screw
