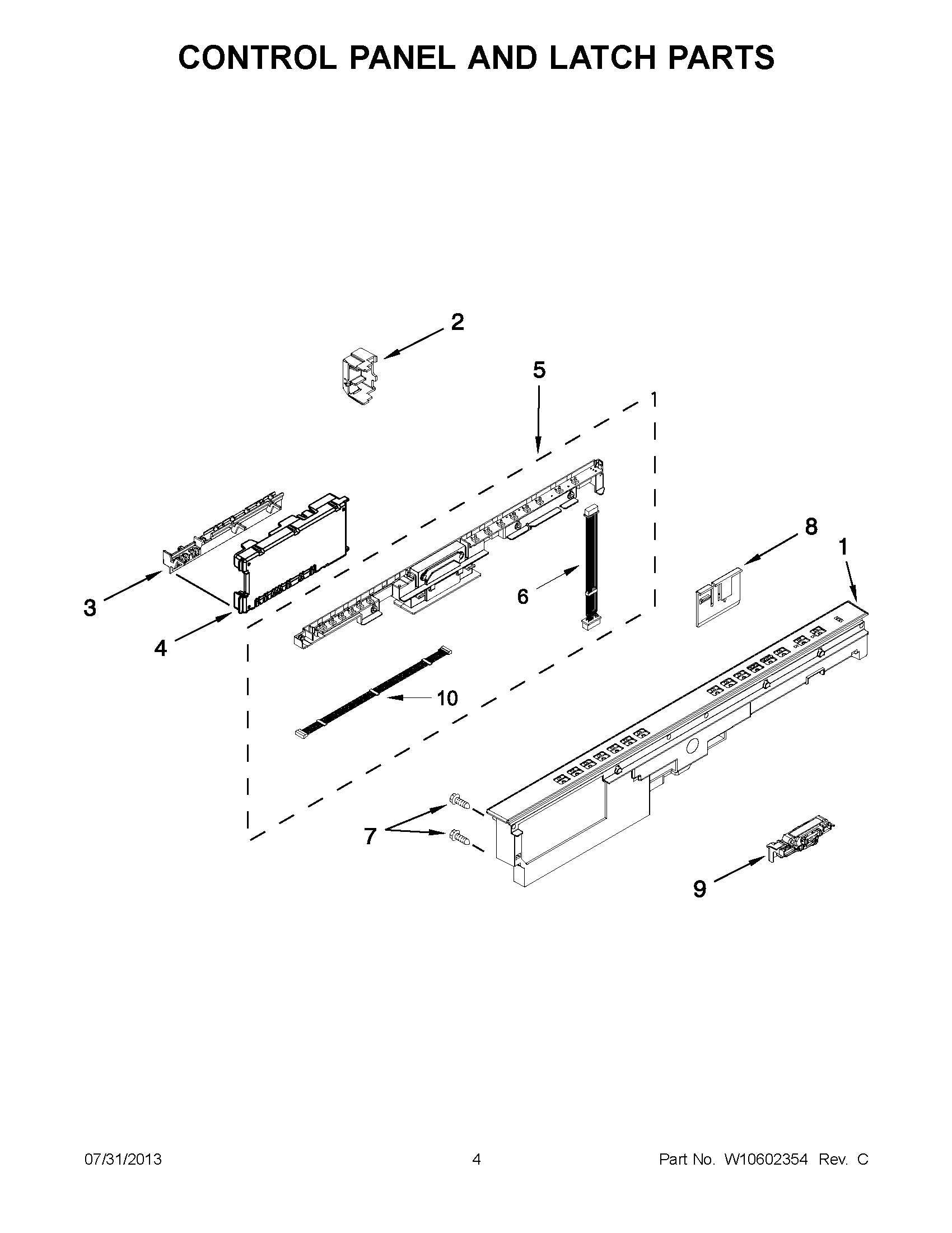

WDT790SLYW2 02 – CONTROL PANEL AND LATCH PARTS

WDT790SLYW2 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDT790SLYW2 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W10380070 Whirlpool Dishwasher Control Panel
1WPW10380071 Whirlpool Dishwasher Control Panel
2W10783730 Whirlpool Dishwasher Connector
3WPW10194937 Whirlpool Dishwasher Control Bracket
4W10595569 Whirlpool Dishwasher Electronic Control Board
5WPW10629159 Whirlpool Dishwasher UI Housing
6W10300781 Whirlpool Dishwasher Wire
7WPW10348408 Whirlpool Dishwasher Screw
8W11256107 Whirlpool Dishwasher Clip
9W10619006 Whirlpool Door Latch
10W10347251 Whirlpool Dishwasher Wire
