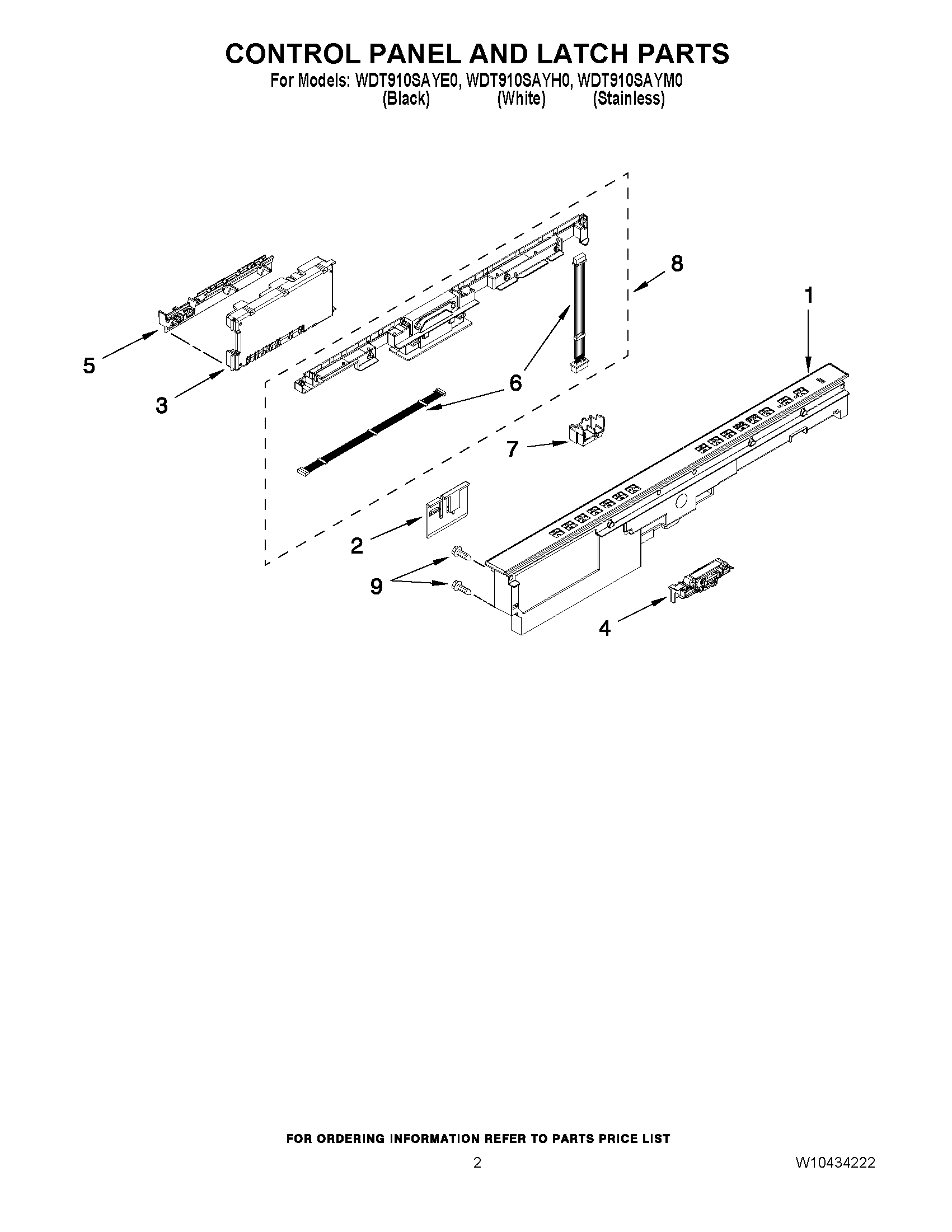

WDT910SAYE0 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10350259 Whirlpool Dishwasher Control Panel
1WPW10350258 Whirlpool Dishwasher Control Panel
1WPW10350260 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10482988 Whirlpool Dishwasher Electronic Control Board
4W10619006 Whirlpool Door Latch
5WPW10194937 Whirlpool Dishwasher Control Bracket
6W10347251 Whirlpool Dishwasher Wire
6W10300781 Whirlpool Dishwasher Wire
7W10783730 Whirlpool Dishwasher Connector
8HOUSING, USER INTERFACE
9WPW10177098 Whirlpool Dishwasher Screw
