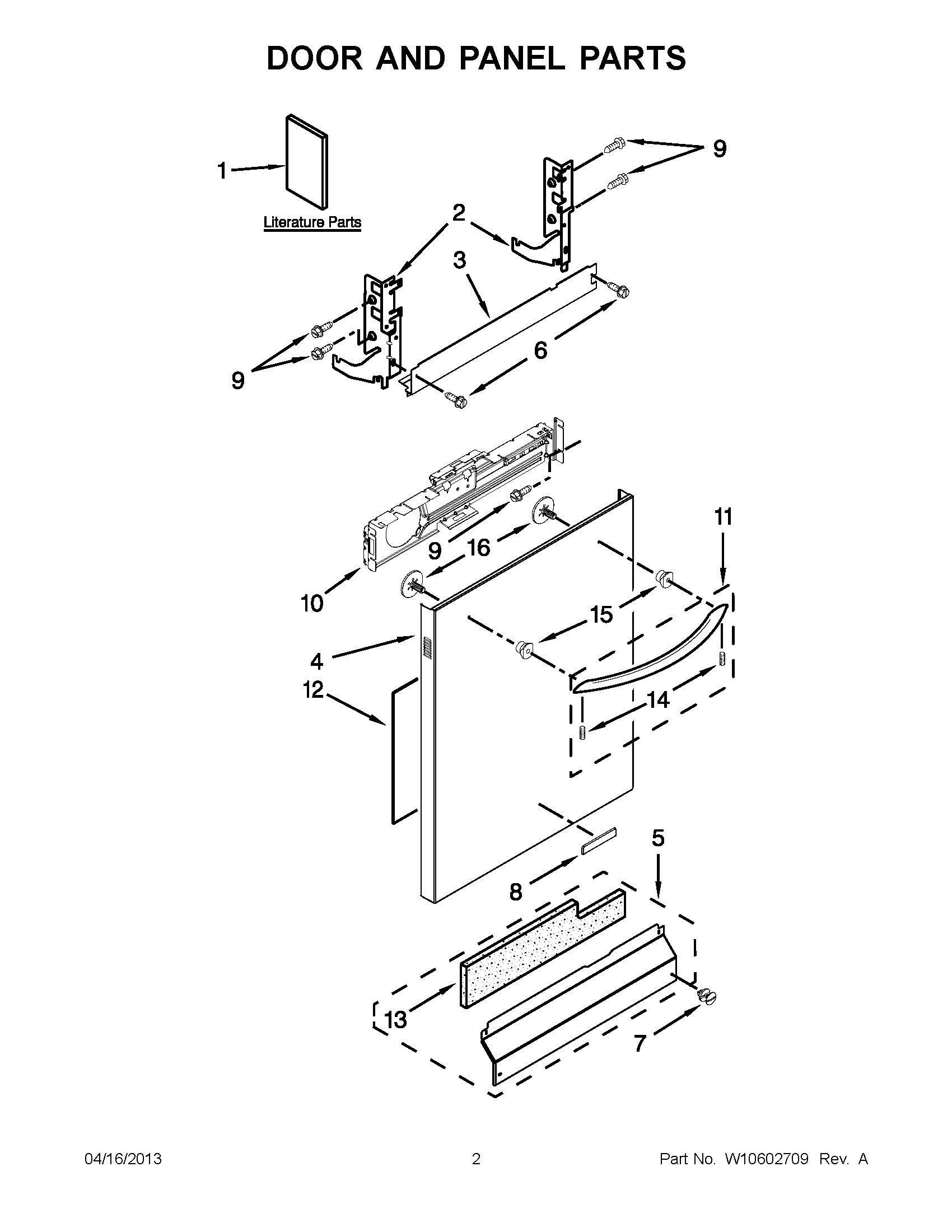

WDT910SAYE2 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1	USE & CARE GUIDE, SPANISH
1	TECH SHEET, FRENCH
1	TECH SHEET, ENGLISH
1	USE & CARE GUIDE, ENGLISH/FRENCH
1	INSTRUCTIONS, INSTALLATION
2	W11612303 Whirlpool Door Hinge
2	W11612302 Whirlpool Dishwasher Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	WPW10323568 Whirlpool Dishwasher Control Panel
4	PANEL FRONT (BLACK)
4	WPW10323562 Whirlpool Dishwasher Panel
5	W10827631 Whirlpool Toe Panel
5	W10827632 Whirlpool Dishwasher Control Panel
6	WP489069 Whirlpool Compactor Screw
7	WPW10503549 Whirlpool Dishwasher Retainer Clip
7	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8	W11178521 Whirlpool Dishwasher Nameplate
8	WPW10393264 Whirlpool Refrigerator Nameplate
9	WP3400071 Whirlpool Screw
10	WPW10350242 Whirlpool Dishwasher Control Bracket
11	HANDLE (STAINLESS)
12	WPW10073520 Whirlpool Dishwasher Insulation Pad
13	SHIELD
14	WP8534008 Whirlpool Screw
15	W11157086 Whirlpool Dishwasher Door Handle Stud
16	W10826179 Whirlpool Dishwasher Screw
