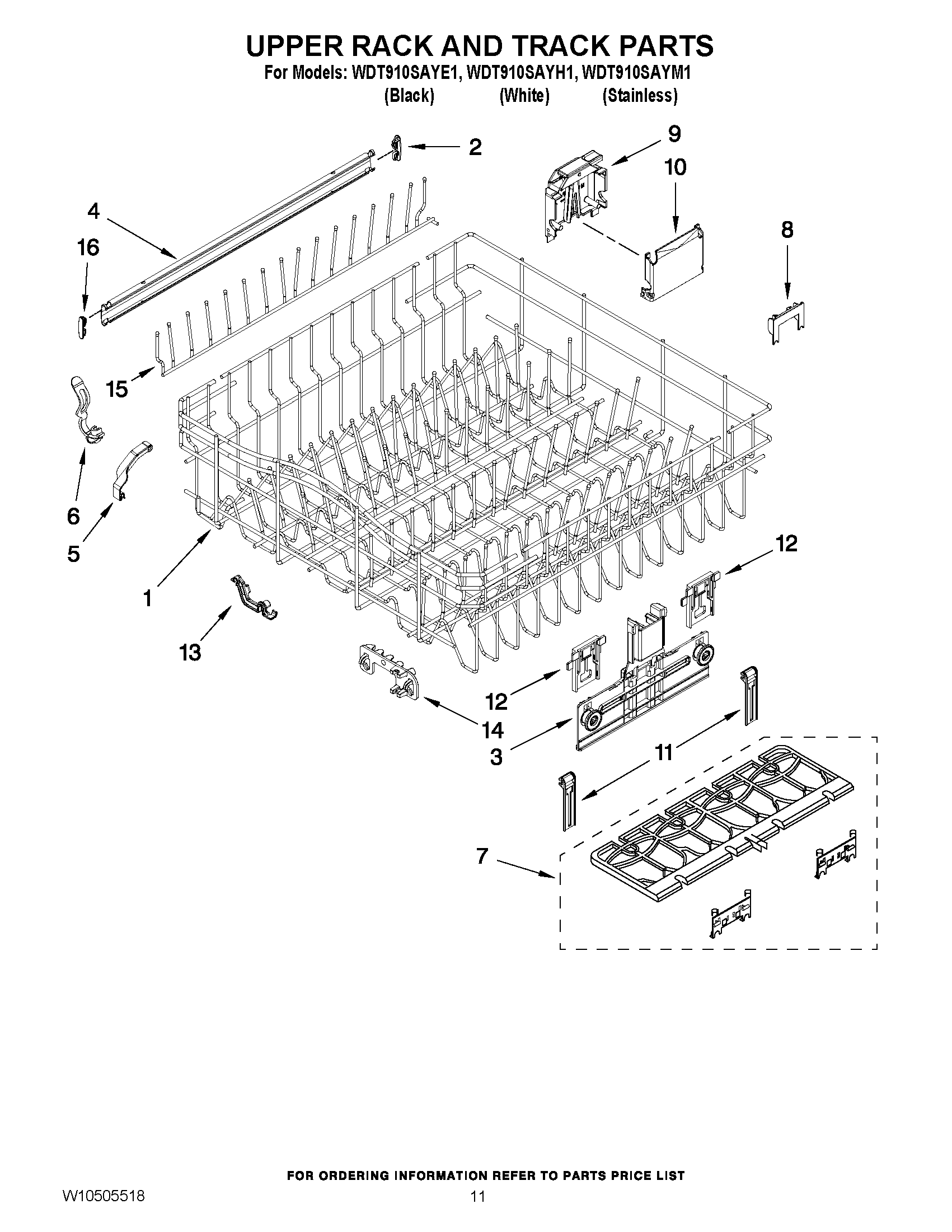

WDT910SAYH1 09 – UPPER RACK AND TRACK PARTS

WDT910SAYH1 09 – UPPER RACK AND TRACK PARTS

Written by

in

WDT910SAYH1 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10727422 Whirlpool Dishwasher Dishrack
3W10712395 Whirlpool Dishwasher Dishrack Adjuster
4WP3385089 Whirlpool Track
5WPW10254690 Whirlpool Dishwasher Clip
6WP8539113 Whirlpool Dishwasher No Flip Dishrack Clip
7WPW10082810 Whirlpool Dishwasher Cup Shelf
8WPW10250160 Whirlpool Clip
9WPW10195373 Whirlpool Housing
9WPW10195372 Whirlpool Housing
10COVER
11WPW10195839 Whirlpool Dishwasher Rack Adjuster
12WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
13PIVOT-TINE
14WP8539119 Whirlpool Dishwasher Positioner
15W10727426 Whirlpool Dishwasher Rack Tine
16WP8565925 Whirlpool Slide Rail Stop
