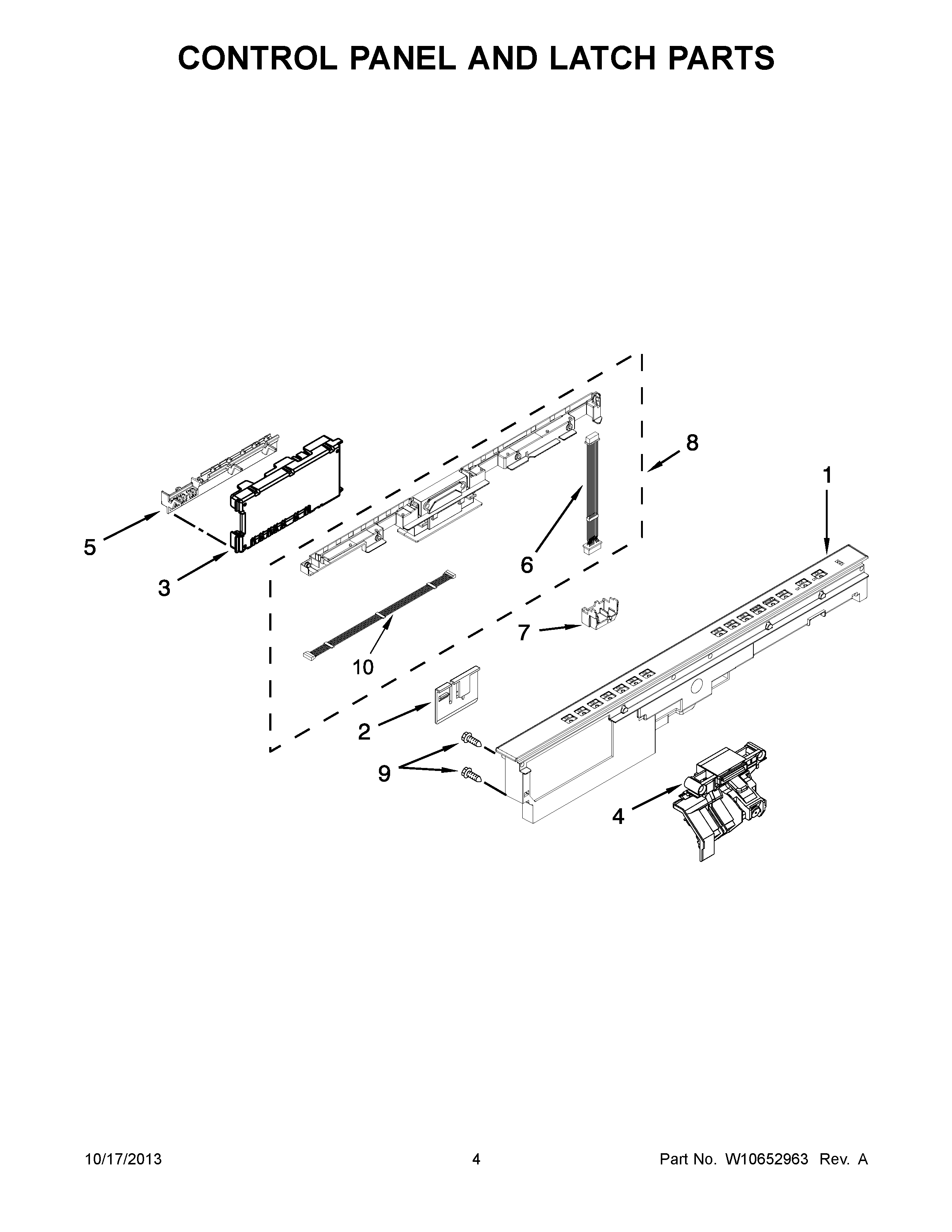

WDT910SAYH3 03 – CONTROL PANEL AND LATCH PARTS

WDT910SAYH3 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDT910SAYH3 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10350260 Whirlpool Dishwasher Control Panel
1WPW10350259 Whirlpool Dishwasher Control Panel
1WPW10350258 Whirlpool Dishwasher Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10595569 Whirlpool Dishwasher Electronic Control Board
4WPW10653840 Whirlpool Door Latch
5WPW10194937 Whirlpool Dishwasher Control Bracket
6W10300781 Whirlpool Dishwasher Wire
7W10783730 Whirlpool Dishwasher Connector
8HOUSING, USER INTERFACE
9WPW10348408 Whirlpool Dishwasher Screw
10W10347251 Whirlpool Dishwasher Wire
