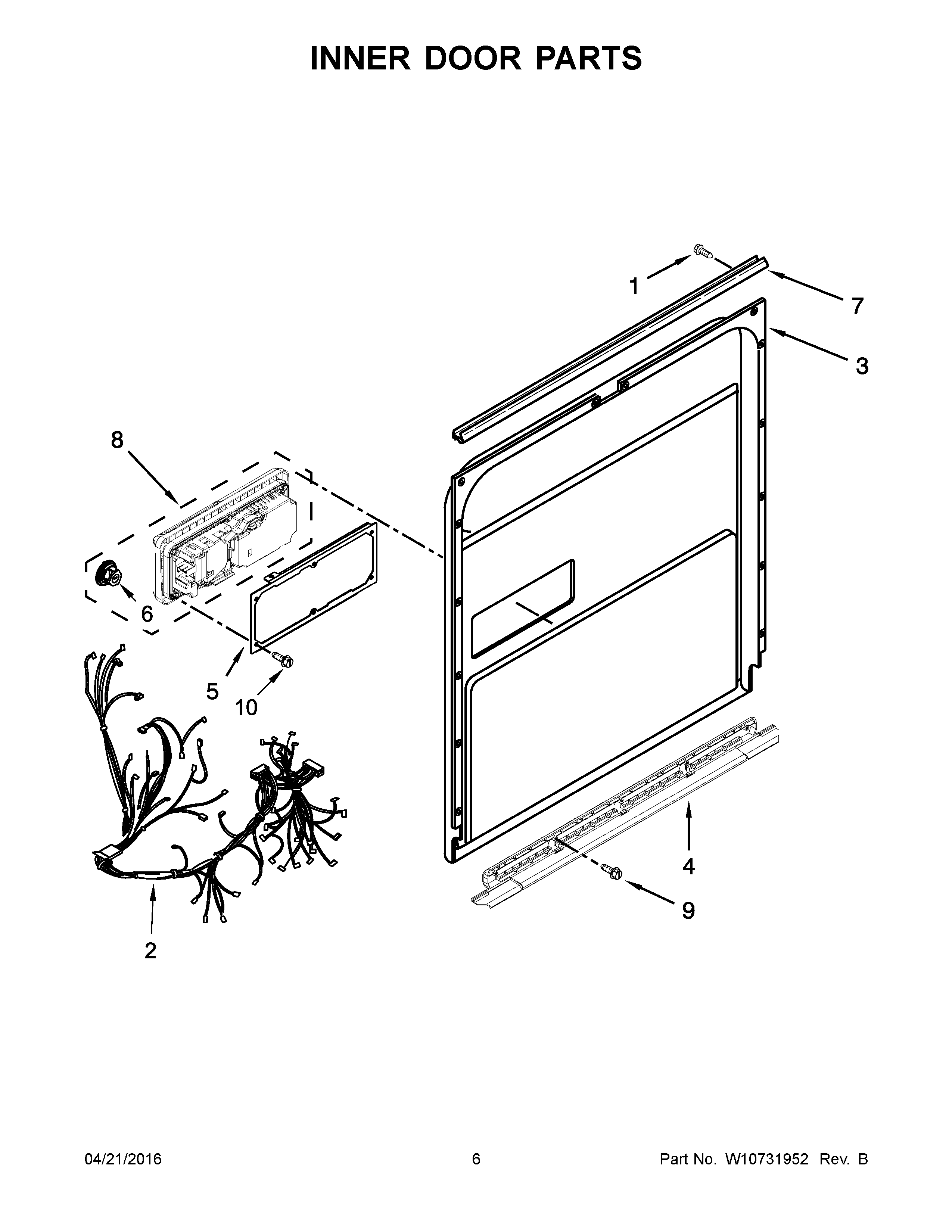

WDT920SADE0 04 – INNER DOOR PARTS

WDT920SADE0 04 – INNER DOOR PARTS

Written by

in

WDT920SADE0 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2WPW10612062 Whirlpool Dishwasher Wire Harness
3WPW10380376 Whirlpool Dishwasher Inner Door
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
6WPW10524920 Whirlpool Dishwasher Rinse Aid Dispenser Cap
7WPW10195007 Whirlpool Dishwasher Seal
8DISPENSER (DISHWASHER)
9W11631670 Whirlpool Screw
10WPW10177098 Whirlpool Dishwasher Screw
