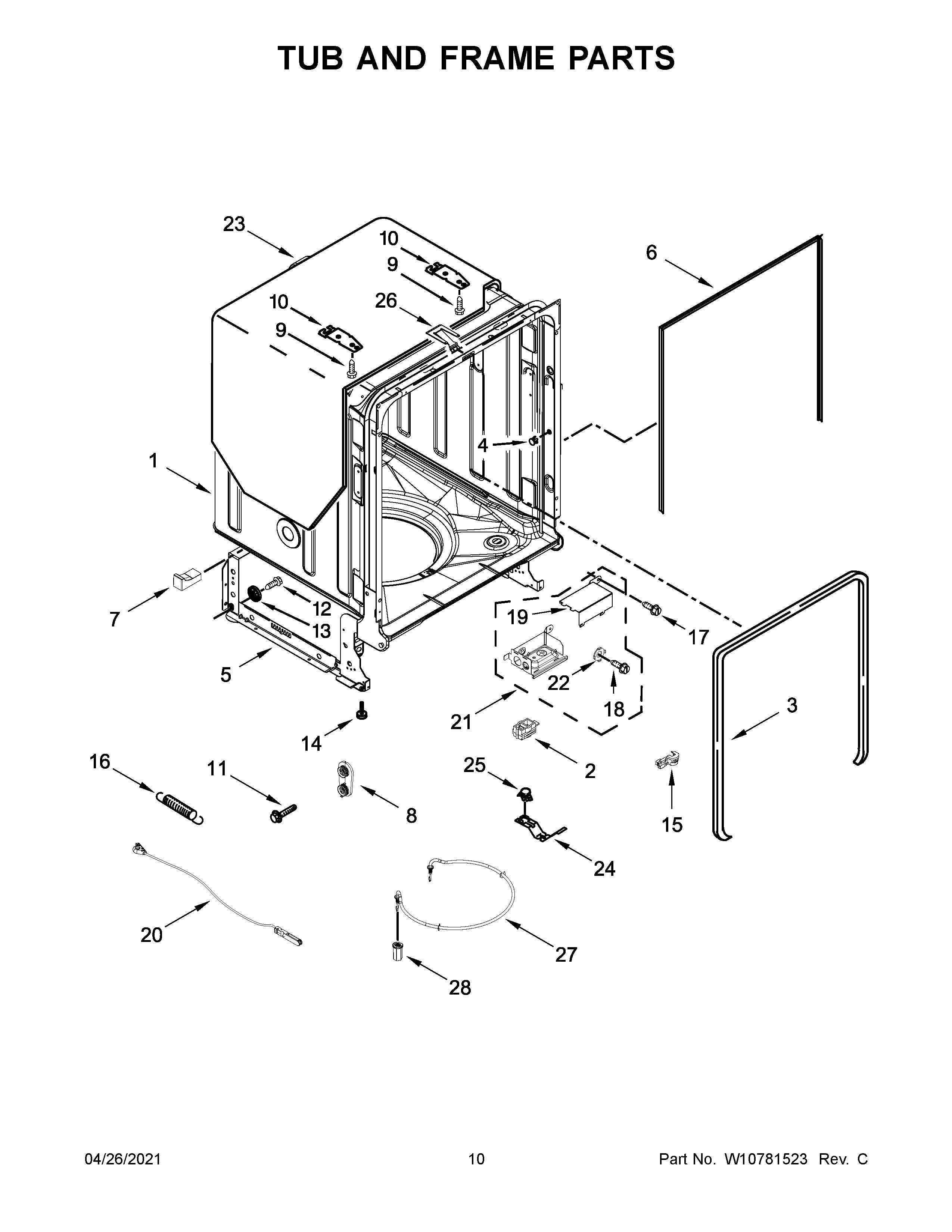

WDT920SADE1 06 – TUB AND FRAME PARTS

Products

Position	Product
1	WPW10681507 Whirlpool Dishwasher Tub
2	W10292870 Whirlpool Dishwasher Housing
3	W11177741 Whirlpool Dishwasher Door Gasket
4	W10795980 Whirlpool Cap
5	WPW10681564 Whirlpool Dishwasher Support
6	SEAL
7A	W10195631 Whirlpool Dishwasher Tank Spacer
7	W10195630 Whirlpool Dishwasher Spacer
8	WPW10084086 Whirlpool Dishwasher Mount
9	WP308685 Whirlpool Microwave Screw
10	WP8269145 Whirlpool Dishwasher Mounting Bracket
11	WP3400074 Whirlpool Dishwasher Screw
12	WPW10348411 Whirlpool Roller Wheel Screw
13	WPW10190778 Whirlpool Dishwasher Wheel
14	8193716 Whirlpool Leveling Leg
15	STRAIN RELIEF
16	SPRING
17	WP3400014 Whirlpool Dishwasher Screw
18	WP3400892 Whirlpool Dishwasher Screw
19	W10847918 Whirlpool Dishwasher Cover
20	8194001 Whirlpool Dishwasher Door Balance Link Kit
21	W11167239 Whirlpool Dishwasher Cover Assembly
22	WP3378128 Whirlpool Dishwasher Washer
23	W11086533 Whirlpool Dishwasher Shield
24	W10300703 Whirlpool Dishwasher Bracket Stat
25	WPW10195091 Whirlpool Thermostat
26	WPW10544004 Whirlpool Dishwasher Strike
27	W10703867 Whirlpool Dishwasher Heating Element
28	WPW10687139 Whirlpool Dishwasher Terminal Nut
