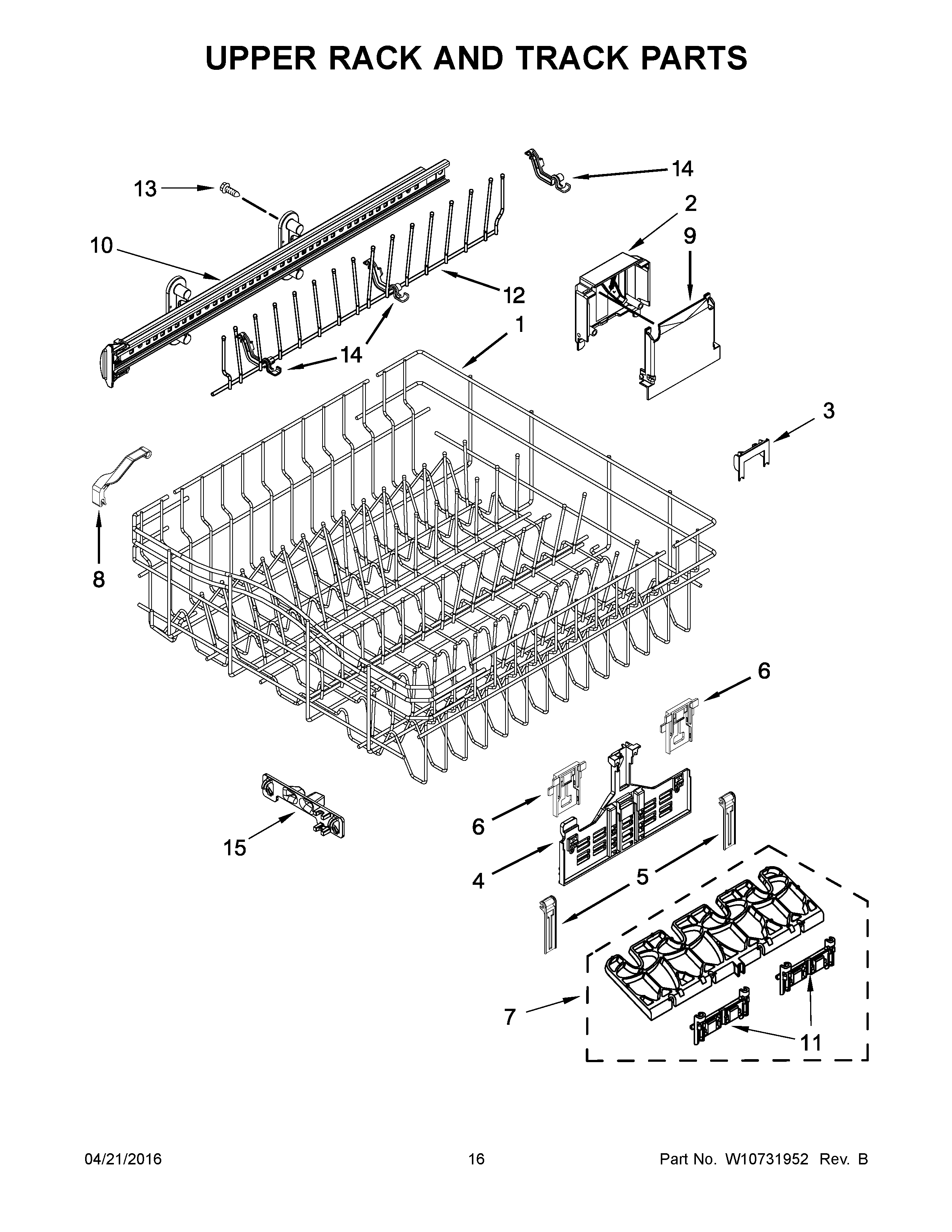

WDT920SADH0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10727422 Whirlpool Dishwasher Dishrack
2W11162099 Whirlpool Dishwasher Housing
2AW11197024 Whirlpool Dishwasher Housing
3WPW10250160 Whirlpool Clip
4W10837306 Whirlpool Dishwasher Adjuster
4AW10838949 Whirlpool Dishwasher Adjuster
5WPW10195839 Whirlpool Dishwasher Rack Adjuster
6WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
7WPW10082649 Whirlpool Dishwasher Cup Shelf
8WPW10267076 Whirlpool Guard Clip
9COVER
10TRACK, DISHRACK
11WPW10082848 Whirlpool Clip
12W10727426 Whirlpool Dishwasher Rack Tine
13WPW10309090 Whirlpool Dishwasher Screw
14WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
15W10803790 Whirlpool Dishwasher Dishrack Tine Tips
