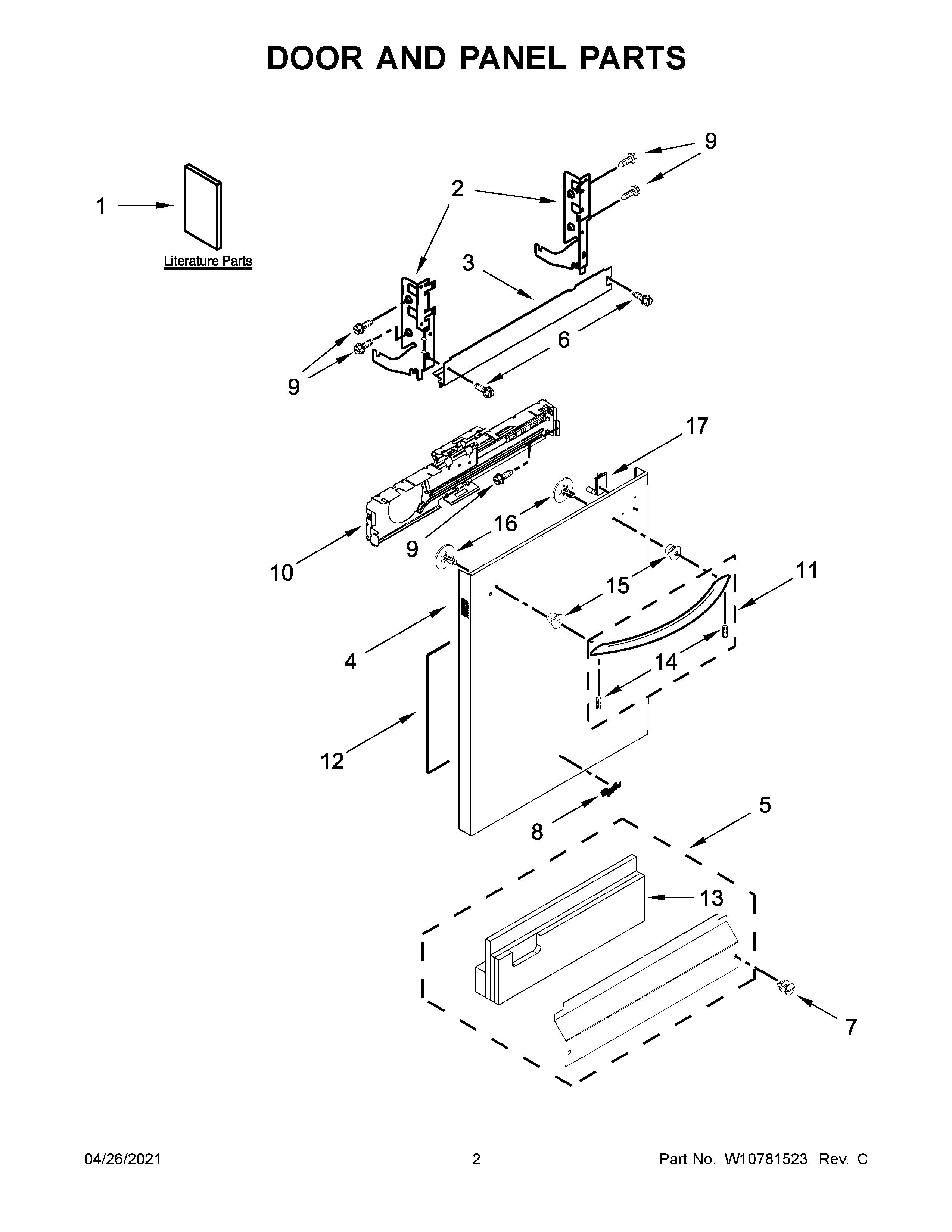

WDT920SADH1 02 – DOOR AND PANEL PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1C	TECH SHEET, ENGLISH
1D	TECH SHEET, FRENCH
1B	USE & CARE GUIDE
1A	ENERGY GUIDE
2A	W11612303 Whirlpool Door Hinge
2	W11612302 Whirlpool Dishwasher Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4	W10847439 Whirlpool Dishwasher Panel
4A	W10914509 Whirlpool Dishwasher Panel
4B	WPW10644289 Whirlpool Dishwasher Panel
5	WPW10526114 Whirlpool Dishwasher Access Panel
5A	WPW10526115 Whirlpool Dishwasher Panel
6	WP489069 Whirlpool Compactor Screw
7	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
7A	WPW10503549 Whirlpool Dishwasher Retainer Clip
8	W11178521 Whirlpool Dishwasher Nameplate
9	WP3400071 Whirlpool Screw
10	W11116870 Whirlpool Dishwasher Control Bracket
11	W11028176 Whirlpool Dishwasher Handle
12	WPW10073520 Whirlpool Dishwasher Insulation Pad
13	SHIELD
14	W10907991 Whirlpool Screw
15	W11157086 Whirlpool Dishwasher Door Handle Stud
16	W10826179 Whirlpool Dishwasher Screw
17	W10500331 Whirlpool Dishwasher Indicator Light
