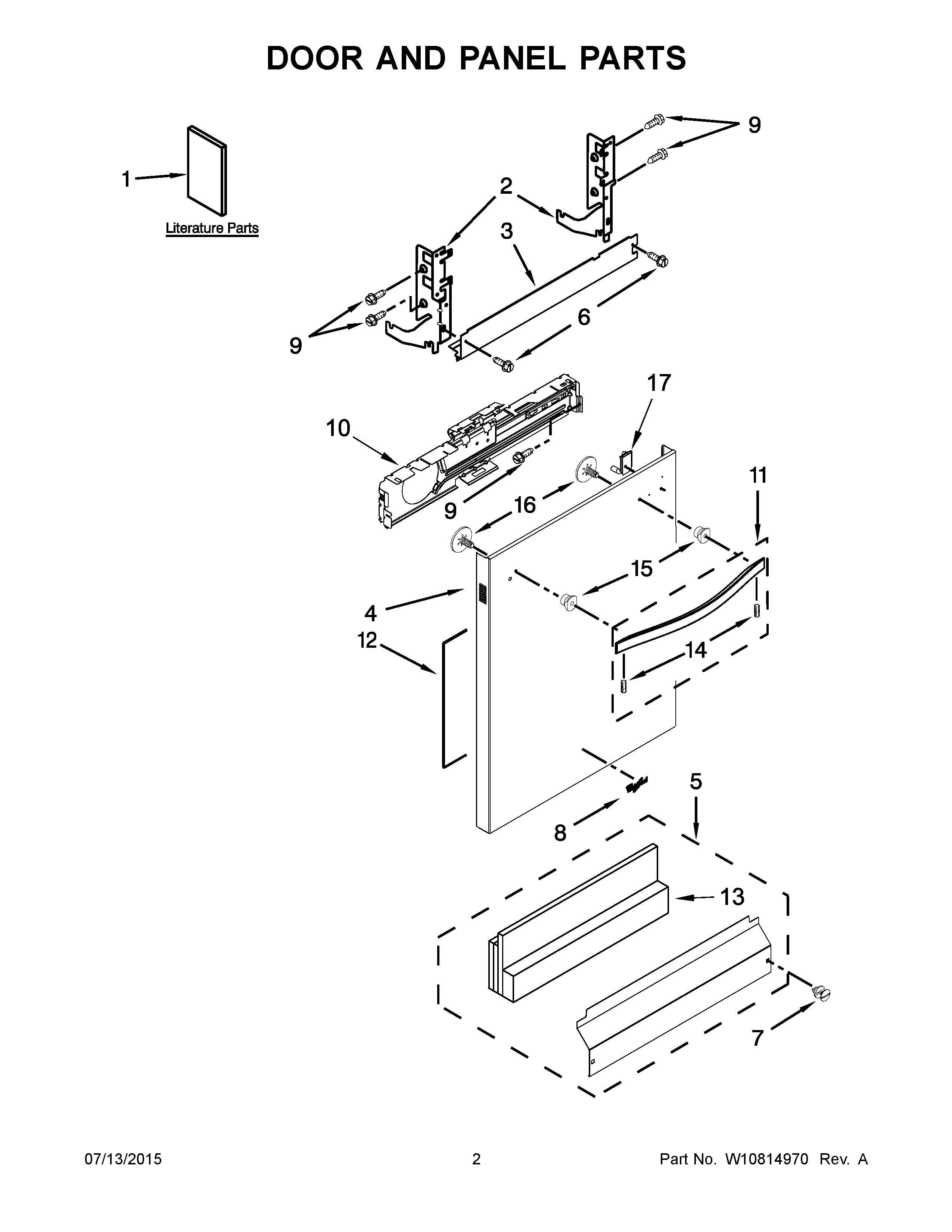

WDT920SADH2 02 – DOOR AND PANEL PARTS

WDT920SADH2 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1INSTALLATION INSTRUCTIONS
1CTECH SHEET, ENGLISH
1DTECH SHEET, FRENCH
1BUSE & CARE GUIDE
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W10847439 Whirlpool Dishwasher Panel
4AW10914509 Whirlpool Dishwasher Panel
4BWPW10644289 Whirlpool Dishwasher Panel
5WPW10526114 Whirlpool Dishwasher Access Panel
5AWPW10526115 Whirlpool Dishwasher Panel
6WP489069 Whirlpool Compactor Screw
7AWPW10503549 Whirlpool Dishwasher Retainer Clip
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8AW11178521 Whirlpool Dishwasher Nameplate
8WPW10393264 Whirlpool Refrigerator Nameplate
9WP3400071 Whirlpool Screw
10W11116870 Whirlpool Dishwasher Control Bracket
11W11028176 Whirlpool Dishwasher Handle
12WPW10073520 Whirlpool Dishwasher Insulation Pad
13SHIELD
14W10907991 Whirlpool Screw
15W11157086 Whirlpool Dishwasher Door Handle Stud
16W10826179 Whirlpool Dishwasher Screw
17W10500331 Whirlpool Dishwasher Indicator Light
