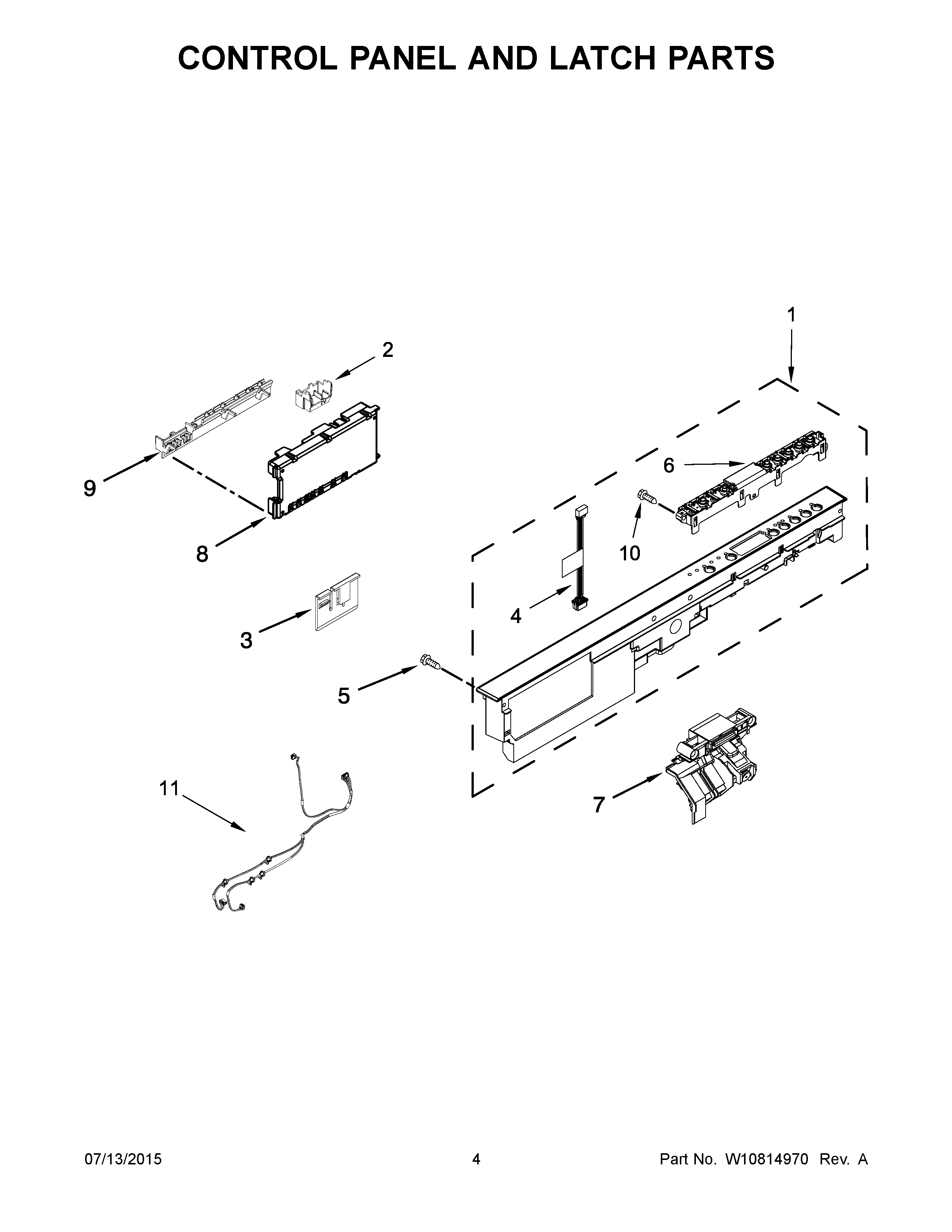

WDT920SADM2 03 – CONTROL PANEL AND LATCH PARTS

WDT920SADM2 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

WDT920SADM2 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1BW10859914 Whirlpool Dishwasher Control Panel
1AW10644262 Whirlpool Dishwasher Control Panel
1W10644261 Whirlpool Dishwasher Control Panel
2W10783730 Whirlpool Dishwasher Connector
3W11256107 Whirlpool Dishwasher Clip
4W11028004 Whirlpool Dishwasher Wire
5WPW10348408 Whirlpool Dishwasher Screw
6W10629151 Whirlpool Dishwasher UI Housing
7WPW10653840 Whirlpool Door Latch
8W10854221 Whirlpool Dishwasher Electronic Control Board
9WPW10194937 Whirlpool Dishwasher Control Bracket
10WPW10177098 Whirlpool Dishwasher Screw
11W10751782 Whirlpool Dishwasher Wire
