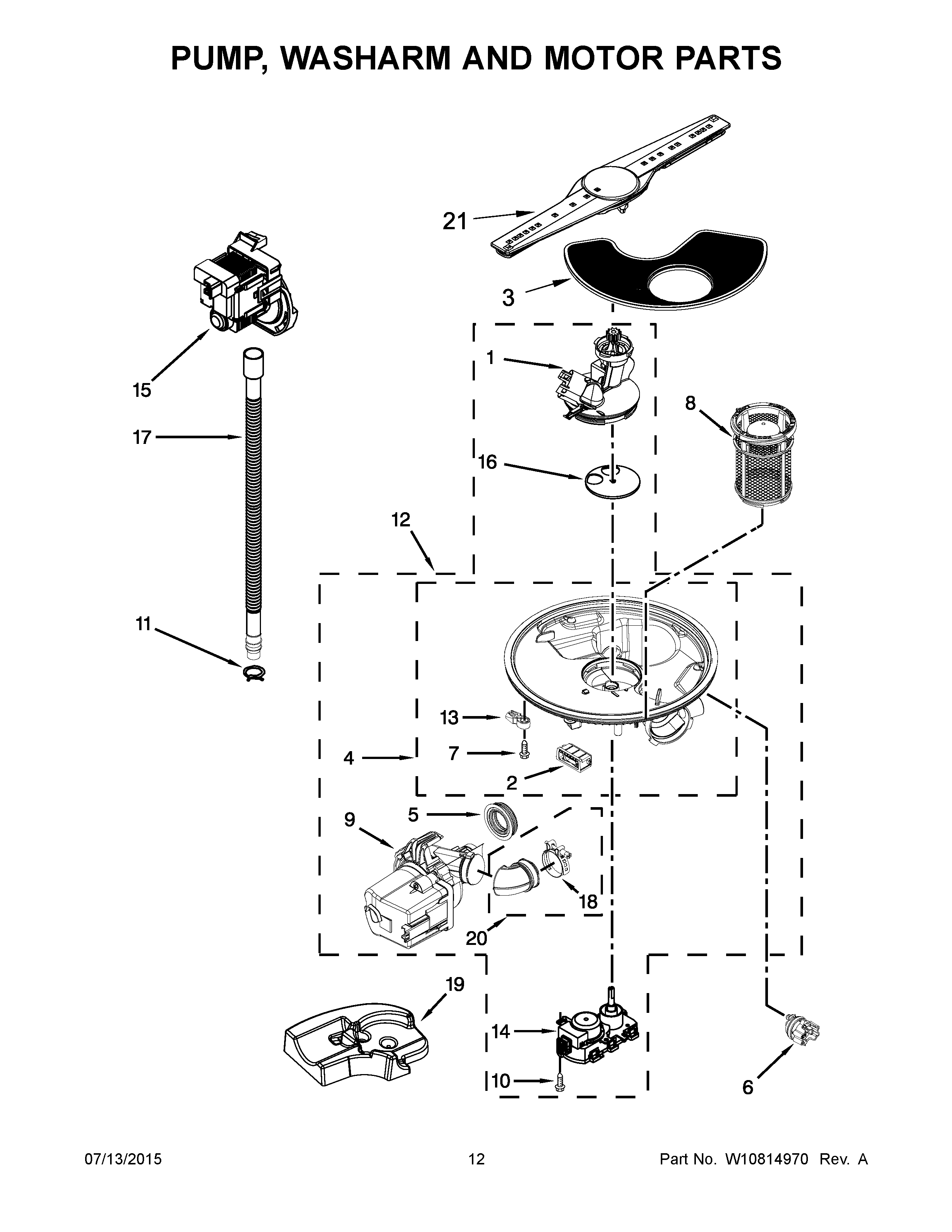

WDT920SADM2 07 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	W10629542 Whirlpool Dishwasher Cover
2	W11243394 Whirlpool Dishwasher Support
3	WPW10463906 Whirlpool Dishwasher Screen Filter Cover
4	WPW10455268 Whirlpool Sump
5	WPW10538166 Whirlpool Grommet Pump
6	WPW10705575 Whirlpool Dishwasher Sensor
7	WPW10348407 Whirlpool Dishwasher Screw
8	W10872845 Whirlpool Dishwasher Filter Cup Trap
9	W11032770 Whirlpool Dishwasher Circulation Pump & Motor
10	WP9741232 Whirlpool Dishwasher Screw
11	WP8269146 Whirlpool Dishwasher Clamp
12	WPW10671942 Whirlpool Dishwasher Pump and Motor
13	WPW10372113 Whirlpool Dishwasher Sump Tab
14	W10537869 Whirlpool Dishwasher Motor
15	WPW10348269 Whirlpool Washer Drain Pump
16	WPW10476221 Whirlpool Dishwasher Diffuser
17	8269144A Whirlpool Dishwasher Drain Hose
18	W10789434 Whirlpool Dishwasher Hose Clamp
19	W10350335 Whirlpool Dishwasher Damper
20	W10445975 Whirlpool Dishwasher Sump Hose with Wash Pump and 2 Clamps
21	W10837249 Whirlpool Lower Wash Arm
