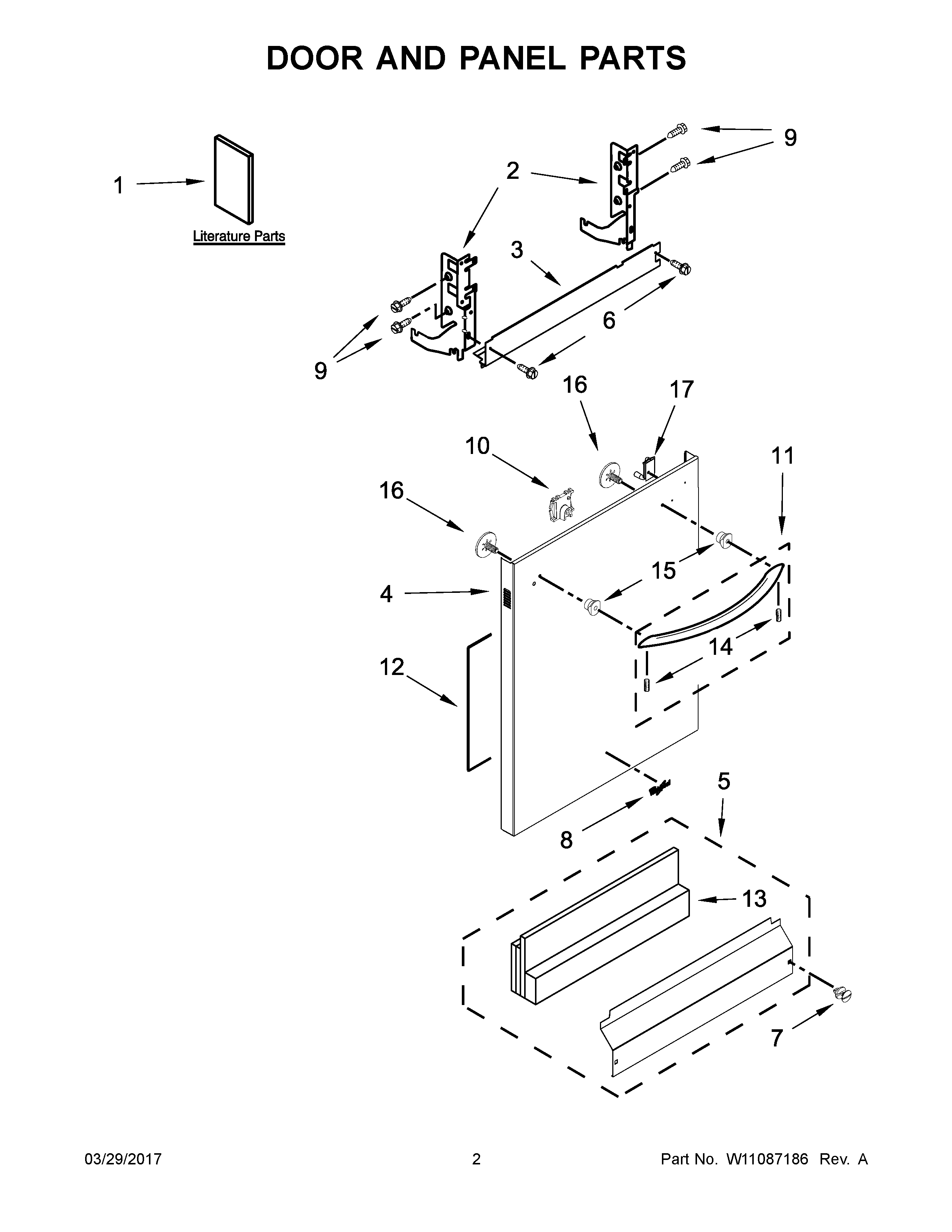

WDT970SAHW0 02 – DOOR AND PANEL PARTS

Products

Position	Product
1C	TECH SHEET
1B	USE & CARE GUIDE
1A	ENERGY GUIDE
1	INSTALLATION INSTRUCTIONS
2	W11612302 Whirlpool Dishwasher Door Hinge
2A	W11612303 Whirlpool Door Hinge
3	W10850371 Whirlpool Dishwasher Door Brace
4A	W11087373 Whirlpool Dishwasher Panel
4B	W11087375 Whirlpool Dishwasher Panel
4	W11087372 Whirlpool Dishwasher Panel
5A	WPW10526115 Whirlpool Dishwasher Panel
5	WPW10526114 Whirlpool Dishwasher Access Panel
6	WP489069 Whirlpool Compactor Screw
7	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
7A	WPW10503549 Whirlpool Dishwasher Retainer Clip
8	W11178521 Whirlpool Dishwasher Nameplate
9	WP3400071 Whirlpool Screw
10	W10692757 Whirlpool Dishwasher Nut Assembly
11	W10907189 Whirlpool Dishwasher Handle
11B	W11685317 Whirlpool Handle Assembly
12	WPW10073520 Whirlpool Dishwasher Insulation Pad
13	SHIELD
14	W10907991 Whirlpool Screw
15	W11157086 Whirlpool Dishwasher Door Handle Stud
16	W10826179 Whirlpool Dishwasher Screw
17	W10901145 Whirlpool Dishwasher Indicator Light
