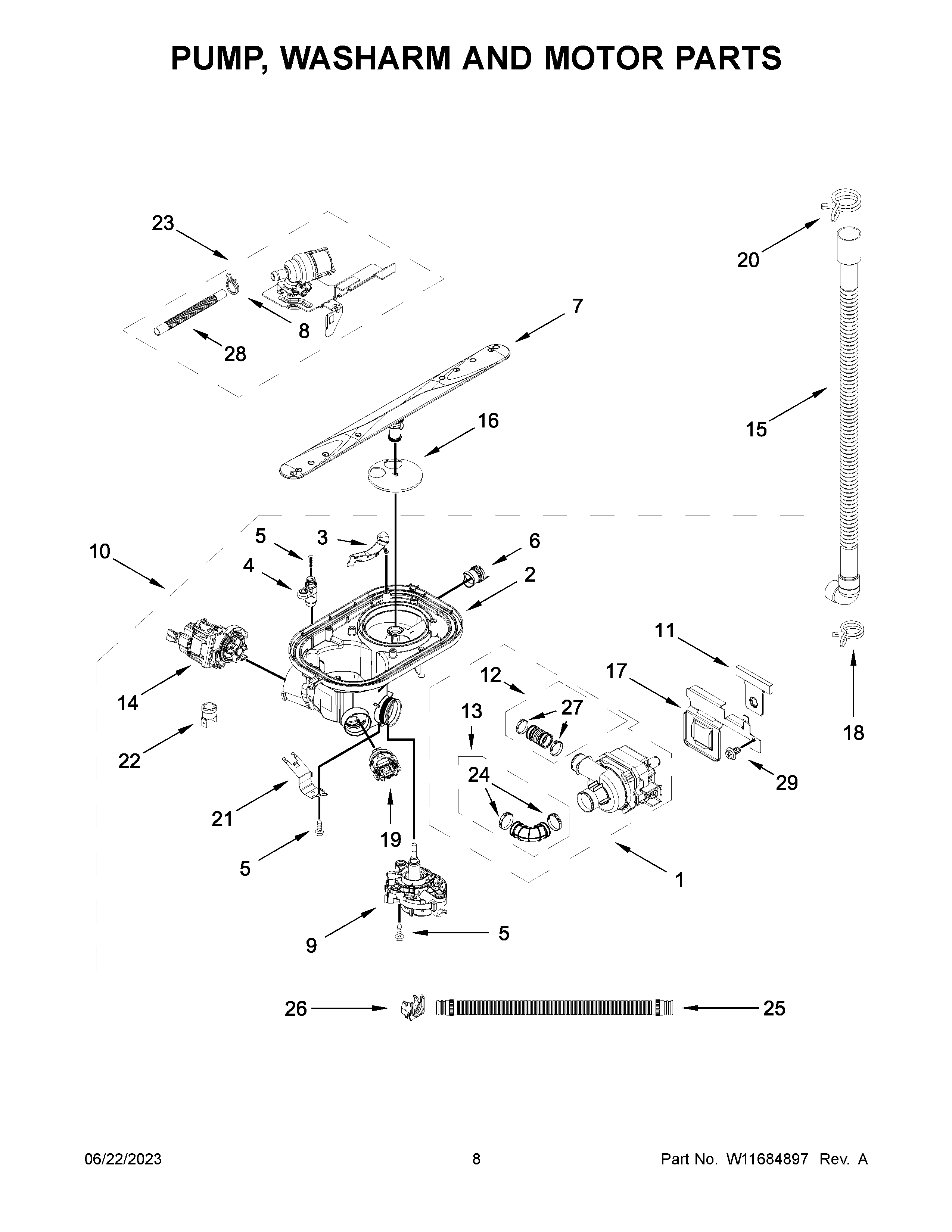

WDT970SAKV2 05 – PUMP, WASHARM AND MOTOR PARTSadmin2025-04-26T13:09:09+00:00WDT970SAKV2 05 – PUMP, WASHARM AND MOTOR PARTS ProductsPositionProduct1W11460963 Whirlpool Dishwasher Circulation Motor Pump Assembly2W11443105 Whirlpool Sump3W10891543 Whirlpool Retainer4W11050773 Whirlpool Check Ball5WP9741232 Whirlpool Dishwasher Screw6W11622925 Whirlpool Check Valve7W11579565 Whirlpool Spray Arm8WP596669 Whirlpool Hose Clamp9DIVERTER VALVE MOTOR (NOT SERVICED)10W11460945 Whirlpool Pump and Motor Assembly11W11450247 Whirlpool Support12W11419334 Whirlpool Hose13W11460960 Whirlpool Hose14PUMP-DRAIN15W11414944 Whirlpool Drain Hose16W11580016 Whirlpool Dishwasher Diffuser17W11497568 Whirlpool Bracket18W11545578 Whirlpool Hose Clamp19W11410464 Whirlpool Sensor20WP285655 Whirlpool Hose Clamp21W11163419 Whirlpool Bracket - Stat22W11573758 Whirlpool Thermostat23VALVE-INLT25W11614117 Whirlpool Drain Hose26W11596052 Whirlpool Clip27W10783615 Whirlpool Dishwasher Clamp28W11627534 Whirlpool Fill Hose29W11104048 Whirlpool Cover
