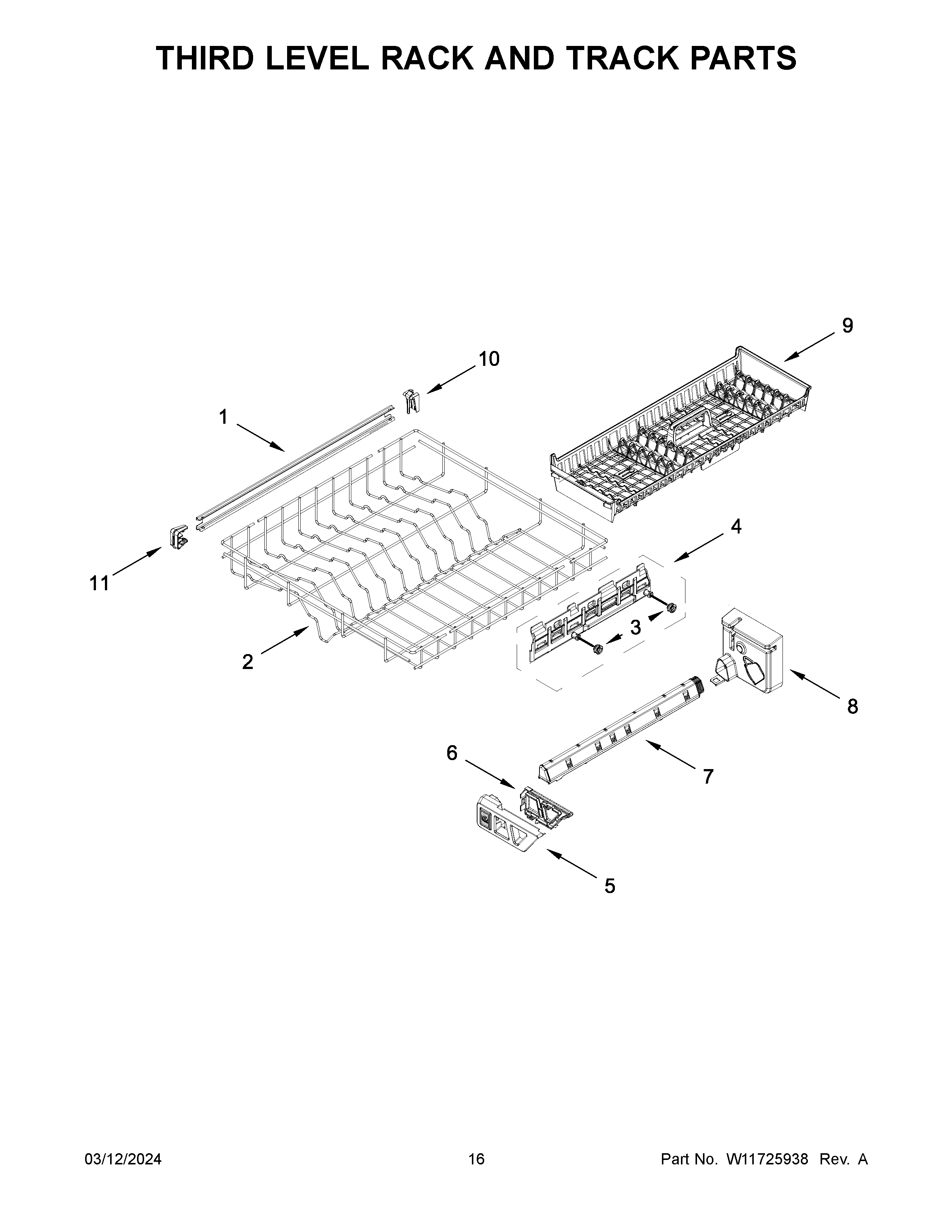

WDT970SAKZ3 09 – THIRD LEVEL RACK AND TRACK PARTS

WDT970SAKZ3 09 – THIRD LEVEL RACK AND TRACK PARTS

Written by

in

WDT970SAKZ3 09 – THIRD LEVEL RACK AND TRACK PARTS

Products

PositionProduct
1W11561204 Whirlpool Track Assembly
2W11127770 Whirlpool Dishrack
3W11568789 Whirlpool Wheel
4AW11675848 Whirlpool Rack Mount Support
4W11662340 Whirlpool Dryer Mount
5W11175556 Whirlpool Manifold Assembly
6W11324430 Whirlpool Manifold
7W11175552 Whirlpool Feed Tube Assembly
8W11324432 Whirlpool Manifold
9W11690650 Whirlpool Basket Ware
10W11579392 Whirlpool Stop
11W11545307 Whirlpool Dishwasher Rack Stop Clip
