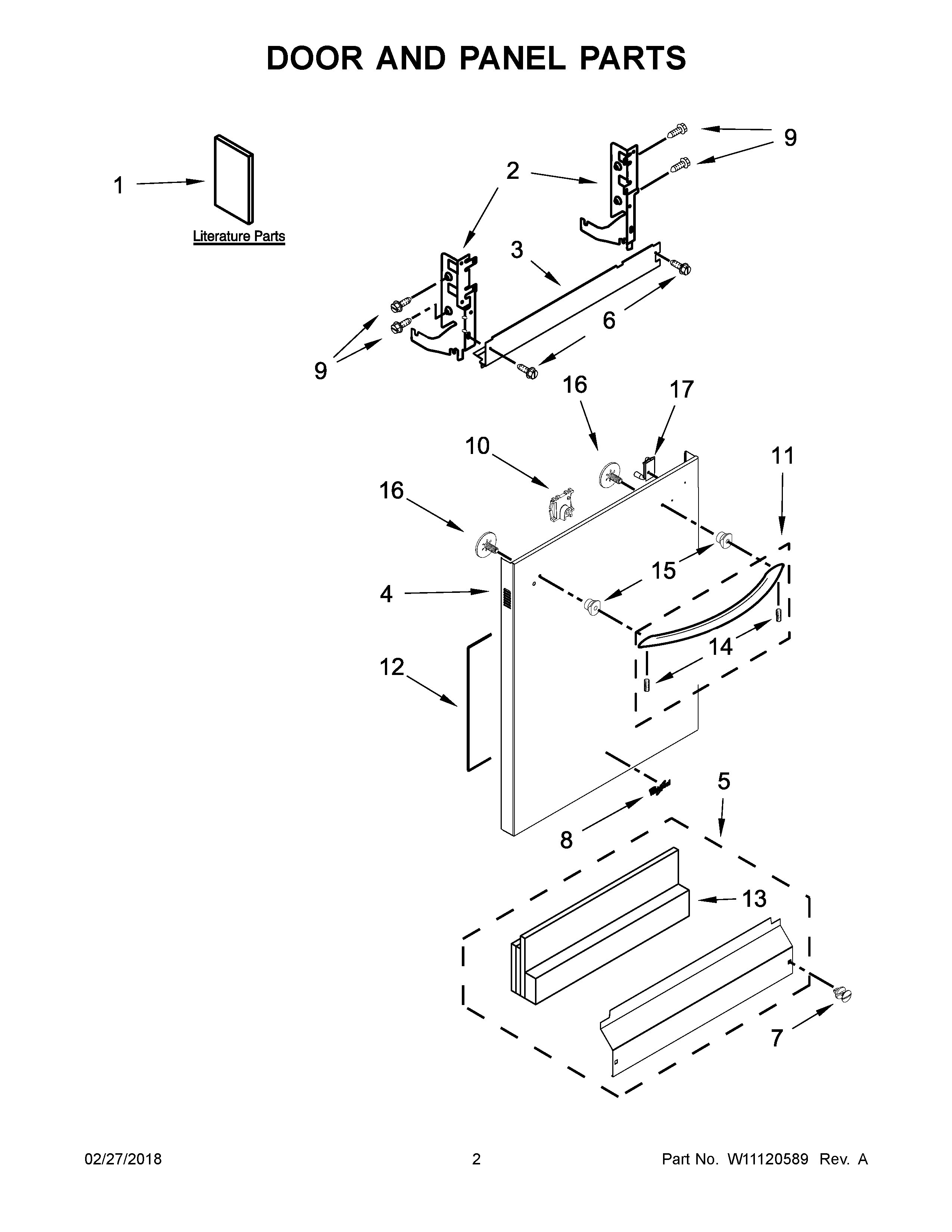

WDT975SAHZ0 02 – DOOR AND PANEL PARTS

WDT975SAHZ0 02 – DOOR AND PANEL PARTS

Written by

in

WDT975SAHZ0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
1INSTALLATION INSTRUCTIONS
1BUSE & CARE GUIDE
1EGUIDE, INTERNET CONNECTIVITY
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W11087377 Whirlpool Dishwasher Panel
5WPW10526114 Whirlpool Dishwasher Access Panel
6WP489069 Whirlpool Compactor Screw
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8W11178521 Whirlpool Dishwasher Nameplate
9WP3400071 Whirlpool Screw
10W10692757 Whirlpool Dishwasher Nut Assembly
11W11685315 Whirlpool Handle
12WPW10073520 Whirlpool Dishwasher Insulation Pad
13SHIELD
14W10907991 Whirlpool Screw
15W11157086 Whirlpool Dishwasher Door Handle Stud
16W10826179 Whirlpool Dishwasher Screw
17W10901145 Whirlpool Dishwasher Indicator Light
