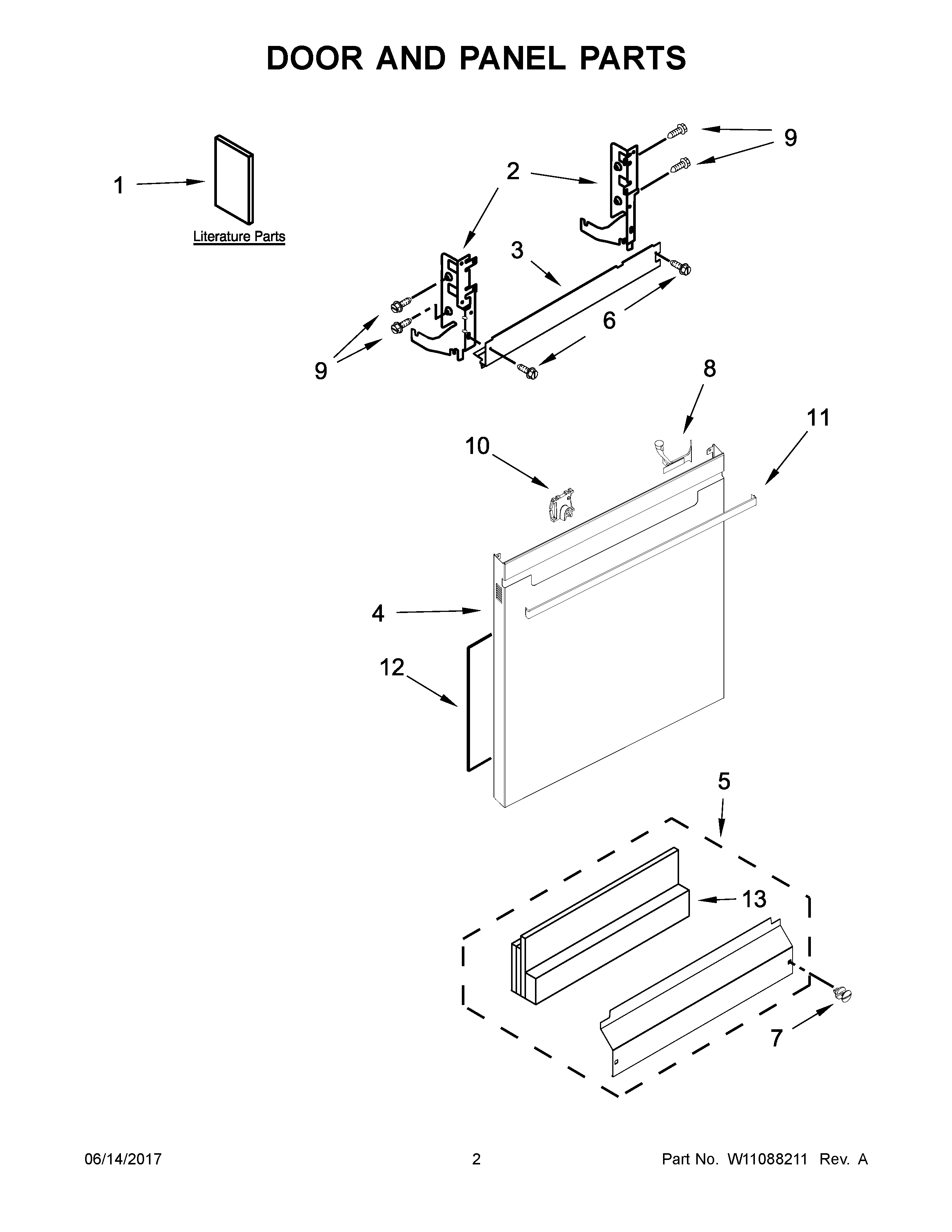

WDTA50SAHN0 02 – DOOR AND PANEL PARTS

WDTA50SAHN0 02 – DOOR AND PANEL PARTS

Written by

in

WDTA50SAHN0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BUSE & CARE GUIDE
1AENERGY GUIDE
1CTECH SHEET
1INSTALLATION INSTRUCTIONS
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4W11090932 Whirlpool Dishwasher Panel
5WPW10526114 Whirlpool Dishwasher Access Panel
6WP489069 Whirlpool Compactor Screw
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8W10901145 Whirlpool Dishwasher Indicator Light
9WP3400071 Whirlpool Screw
10W10692757 Whirlpool Dishwasher Nut Assembly
11W11087930 Whirlpool Dishwasher Handle Pocket
12WPW10073520 Whirlpool Dishwasher Insulation Pad
13SHIELD
