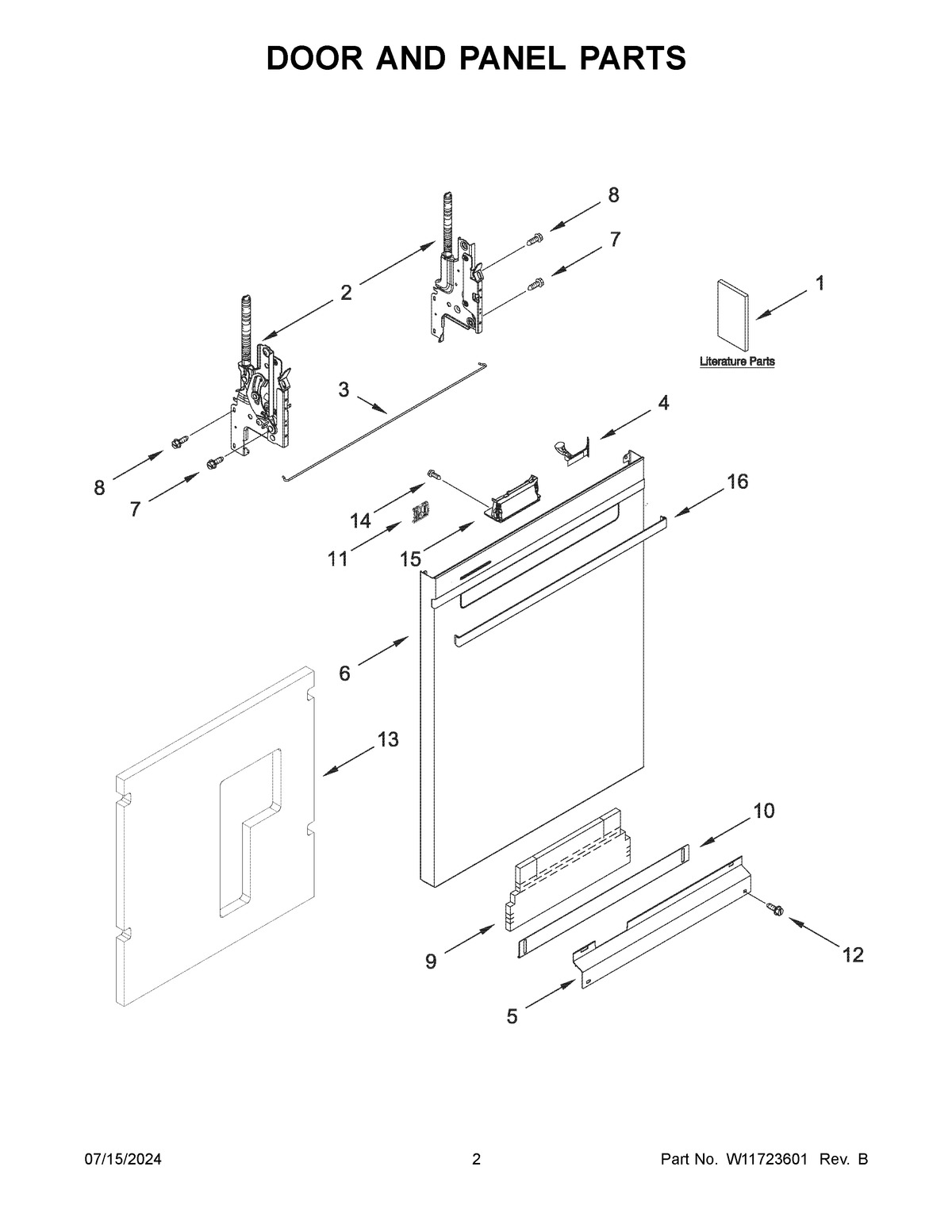

WDTA50SAKB3 02 – DOOR AND PANEL PARTS

WDTA50SAKB3 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BTECH SHEET
1AENERGY GUIDE
1OWNERS MANUAL
2HINGE-DOOR
2AW11712996 Whirlpool Door Hinge
3W11377160 Whirlpool Brace Assembly
4W11102920 Whirlpool Indicator Light
5AW11110746 Whirlpool Panel
5W11545318 Whirlpool Toekick Plate
6BW11462449 Whirlpool Panel
6AW11461685 Whirlpool Panel
6W11462454 Whirlpool Panel
6DW11461683 Whirlpool Panel
6CW11461682 Whirlpool Front Panel
7W11676450 Whirlpool Screw
8WPW10309090 Whirlpool Dishwasher Screw
9W11573704 Whirlpool Dishwasher Shield
10AW11467726 Whirlpool Toe Panel
10W11579528 Whirlpool Toe Panel
11W10692757 Whirlpool Dishwasher Nut Assembly
12W11551775 Whirlpool Screw
12ASCREW
13W10919861 Whirlpool Insulation Pad
14WP9741232 Whirlpool Dishwasher Screw
15POCKET, HANDLE (BLACK)
15AW10896301 Whirlpool Handle Assembly
15BPOCKET, HANDLE (GRAY)
16W11087930 Whirlpool Dishwasher Handle Pocket
