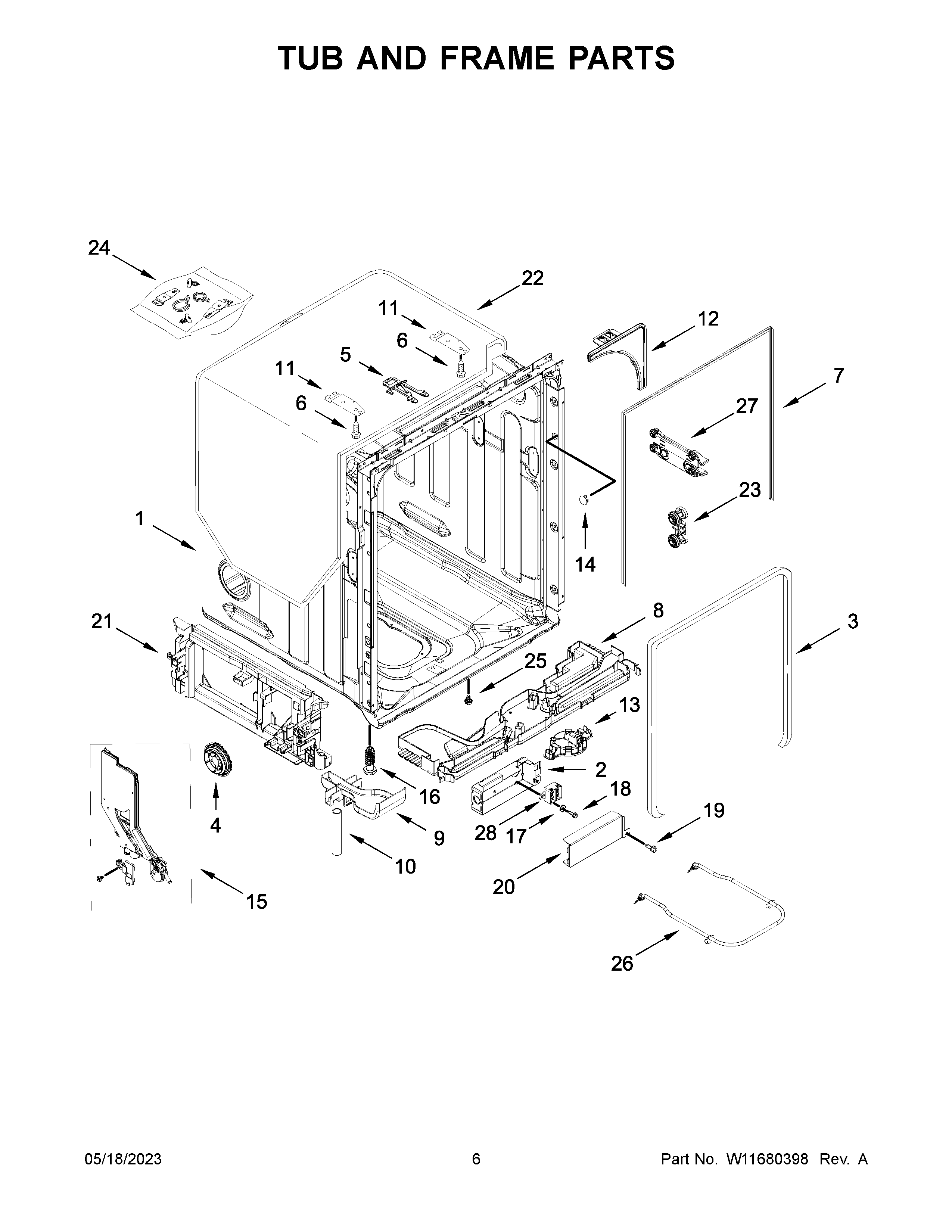

WDTA50SAKZ2 04 – TUB AND FRAME PARTS

Products

Position	Product
1	W11409866 Whirlpool Tub
2	W11226744 Whirlpool Box Cover
3	W11483553 Whirlpool Tub Seal
4	W11535081 Whirlpool Tube Nut
5	STRIKE
6	W11551549 Whirlpool Microwave Screw
7	W11414078 Whirlpool Seal Assembly
8	W11550169 Whirlpool Drip Tray
9	W11025986 Whirlpool Dishwasher Funnel
10	W11025988 Whirlpool Dishwasher Funnel
11	WP8269145 Whirlpool Dishwasher Mounting Bracket
12	W11579566 Whirlpool Insert
13	FLOAT SWITCH
14	W11573757 Whirlpool Cap Assembly
15	INLET-WATR
16	W11561254 Whirlpool Leg Leveler
17	WP3378128 Whirlpool Dishwasher Washer
18	WP3400014 Whirlpool Dishwasher Screw
19	WPW10277003 Whirlpool Screw
20	W11407385 Whirlpool Wiring Cover
21	W11679658 Whirlpool Side Support Tub
21A	W11679657 Whirlpool Support
22	W11579564 Whirlpool Sound Shield Assembly
23	W11614118 Whirlpool Tub Wheel
24	W11502191 Whirlpool Bag Assembly Loose Parts Towel Bar
25	WP3400892 Whirlpool Dishwasher Screw
26	W11537778 Whirlpool Heating Element Assembly
27	W11579562 Whirlpool Track Assembly
27A	W11596053 Whirlpool Track
28	W11573809 Whirlpool Termination Block
