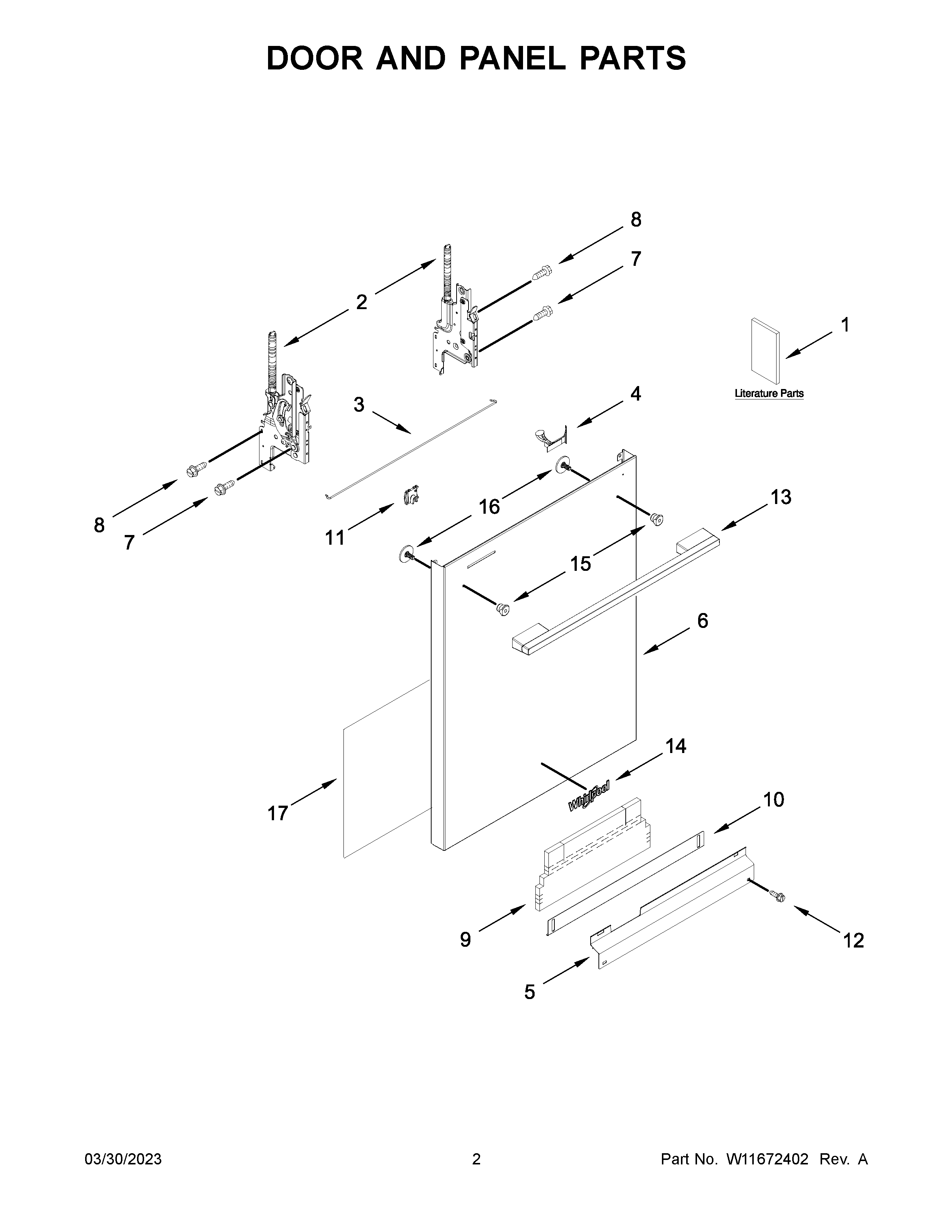

WDTA80SAKZ1 02 – DOOR AND PANEL PARTS

WDTA80SAKZ1 02 – DOOR AND PANEL PARTS

Written by

in

WDTA80SAKZ1 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1OWNERS MANUAL
1BTECH SHEET
2AW11712996 Whirlpool Door Hinge
2HINGE-DOOR
3W11377160 Whirlpool Brace Assembly
4W11102920 Whirlpool Indicator Light
5W11545318 Whirlpool Toekick Plate
6W11461694 Whirlpool Panel Assembly
7W11676450 Whirlpool Screw
8WPW10309090 Whirlpool Dishwasher Screw
9W11573704 Whirlpool Dishwasher Shield
10W11579528 Whirlpool Toe Panel
11W10692757 Whirlpool Dishwasher Nut Assembly
12W11551775 Whirlpool Screw
13W10907188 Whirlpool Dishwasher Aspire Handle
14W11178521 Whirlpool Dishwasher Nameplate
15W11157086 Whirlpool Dishwasher Door Handle Stud
16W10826179 Whirlpool Dishwasher Screw
17W10919861 Whirlpool Insulation Pad
