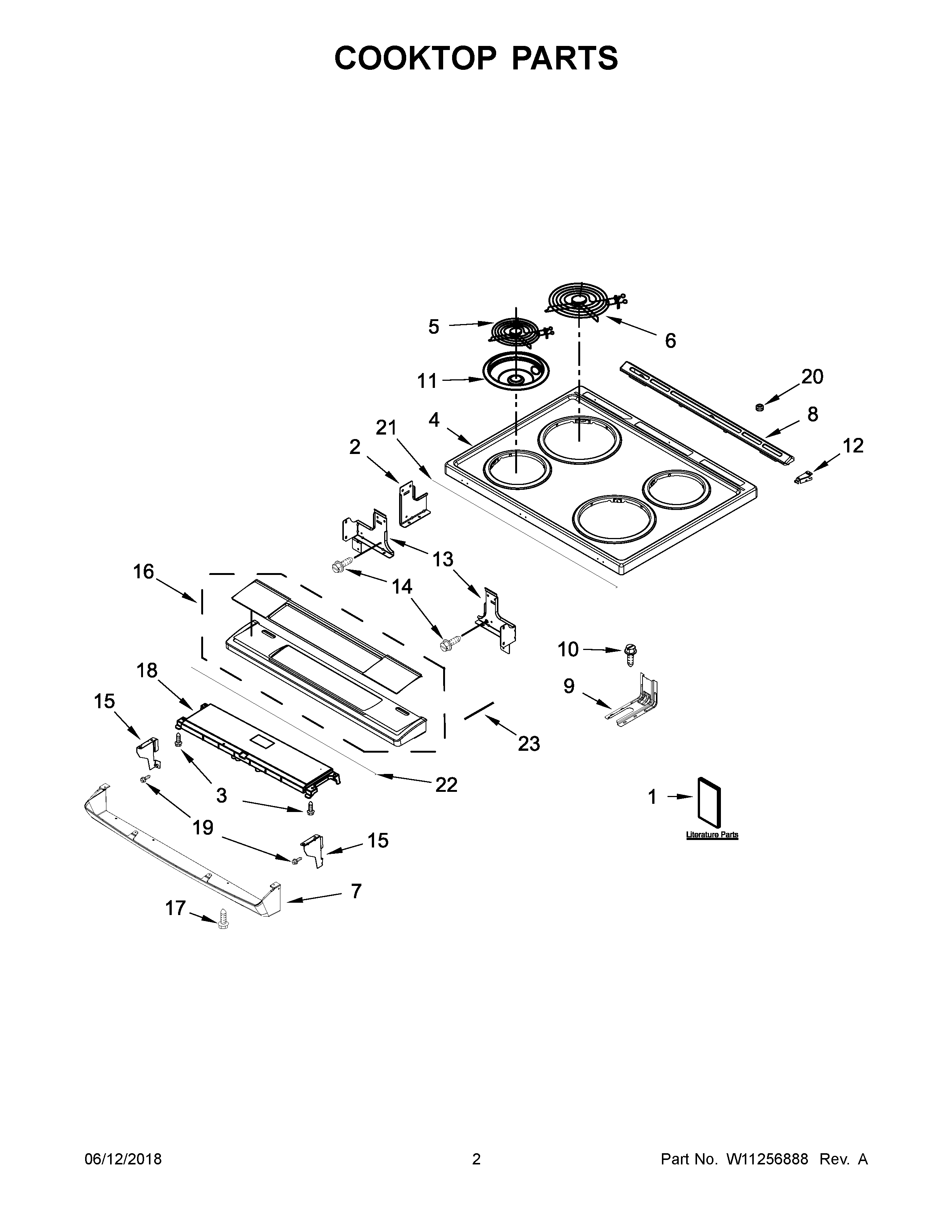

WEC310S0FB2 02 – COOKTOP PARTS

WEC310S0FB2 02 – COOKTOP PARTS

Written by

in

WEC310S0FB2 02 – COOKTOP PARTS

Products

PositionProduct
NIW10664316 Whirlpool Clip
NICLAMP, WIRE
NIW11190435 Whirlpool Wire Harness
NIW11226231 Whirlpool Wire Harness
NIW11568999 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NICABINET (NOT A SERVICEABLE PART)
1INSTRUCTIONS, INSTALLATION
1AUSE AND CARE GUIDE
1BWIRING DIAGRAM
2W10814305 Whirlpool Bracket Support
3W11245710 Whirlpool Refrigerator Screw
4W10795408 Whirlpool Cooktop
4AW11487482 Whirlpool Cooktop
5W11396792 Whirlpool Surface Coil Element
6ELMNT-SURF
7W10894124 Whirlpool Control Panel
7AW10894127 Whirlpool Control Panel
8W11240519 Whirlpool Vent Trim
8AW10636527 Whirlpool Vent Trim
9W11502257 Whirlpool Anchor Tip
10SCREW, ANTI-TIP KIT
11AWPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12AW10162252 Whirlpool Bracket Mounting
12W10162253 Whirlpool Mounting Bracket
13W10814304 Whirlpool Support Bracket
13ASUPPORT, COOKTOP (LEFT)
14WP3196557 Whirlpool Screw
15AW10547961 Whirlpool Endcap Panel
15W10547960 Whirlpool Endcap Panel
16AW10893945 Whirlpool Control Panel
16W10893944 Whirlpool Control Panel
17W10516115 Whirlpool Screw
18W10894095-includeCORE Whirlpool W10894095 Washer Electronic Control Board
19SCREW
20W11690600 Whirlpool Bumper
21W10802441 Whirlpool Gasket
22W10802457 Whirlpool Gasket
23W11744482 Whirlpool Gasket Assembly
