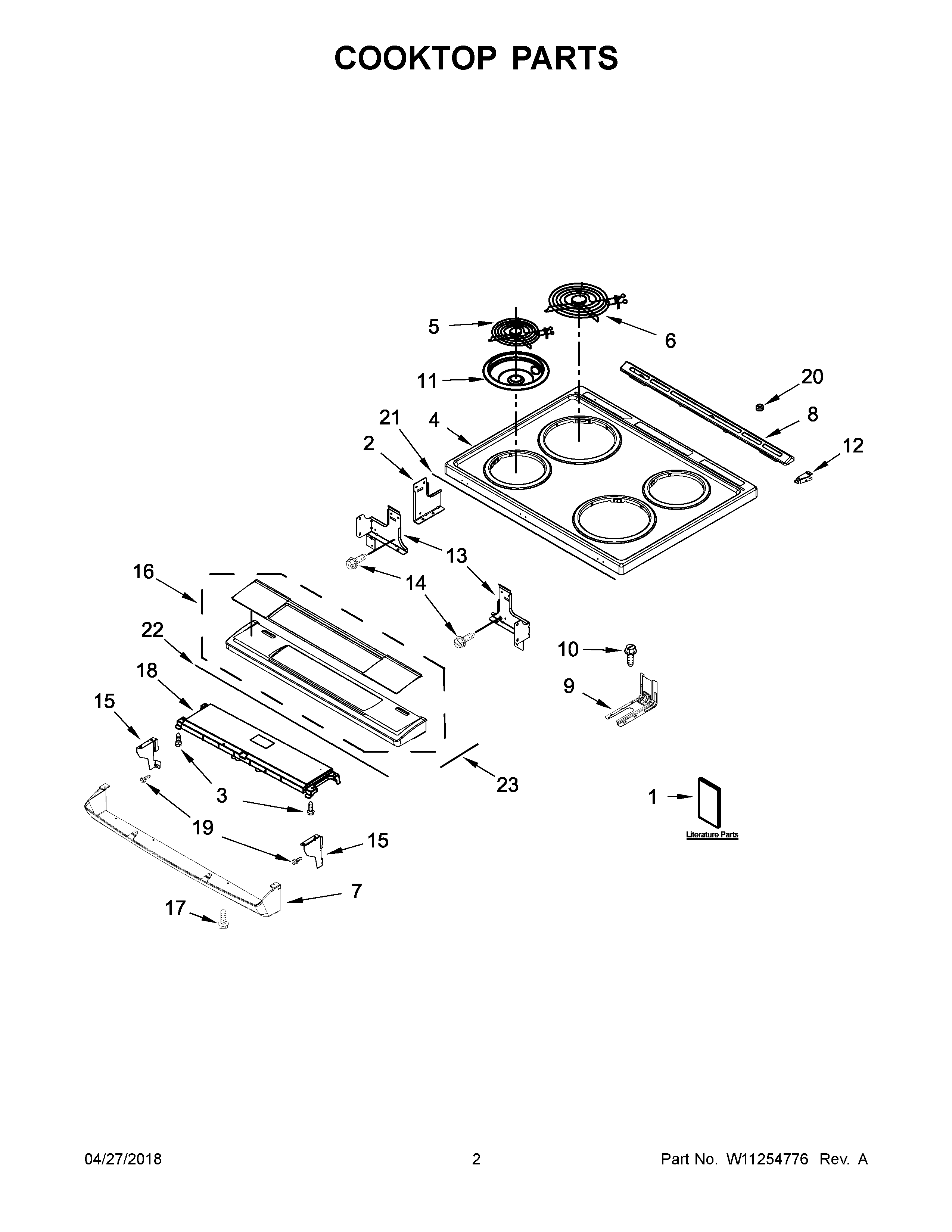

WEC310S0FS2 02 – COOKTOP PARTS

Products

Position	Product
NI	W11190435 Whirlpool Wire Harness
NI	W10664316 Whirlpool Clip
NI	W11226231 Whirlpool Wire Harness
NI	CABINET (NOT A SERVICEABLE PART)
NI	16515 Whirlpool Clip
NI	W11568999 Whirlpool Wire Harness
NI	CLAMP, WIRE
1	INSTRUCTIONS, INSTALLATION
1A	USE AND CARE GUIDE
1B	WIRING DIAGRAM
2	W10814305 Whirlpool Bracket Support
3	W11245710 Whirlpool Refrigerator Screw
4	W10795408 Whirlpool Cooktop
5	W11396792 Whirlpool Surface Coil Element
6	ELMNT-SURF
7	W10894124 Whirlpool Control Panel
8	W11240519 Whirlpool Vent Trim
9	W11502257 Whirlpool Anchor Tip
10	SCREW, ANTI-TIP KIT
11	DRIP BOWL 8" W/HOLE CHROME
11A	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	W10162253 Whirlpool Mounting Bracket
12A	W10162252 Whirlpool Bracket Mounting
13	W10814304 Whirlpool Support Bracket
13A	SUPPORT, COOKTOP (LEFT)
14	WP3196557 Whirlpool Screw
15	W10547960 Whirlpool Endcap Panel
15A	W10547961 Whirlpool Endcap Panel
16	W10893947 Whirlpool Control Panel
17	W10516115 Whirlpool Screw
18	W10894095-includeCORE Whirlpool W10894095 Washer Electronic Control Board
19	SCREW
20	W11690600 Whirlpool Bumper
21	W10802441 Whirlpool Gasket
22	W10802457 Whirlpool Gasket
23	W11744482 Whirlpool Gasket Assembly
