WEC310S0FS2 04 – DOOR PARTS

WEC310S0FS2 04 – DOOR PARTS

Written by

in

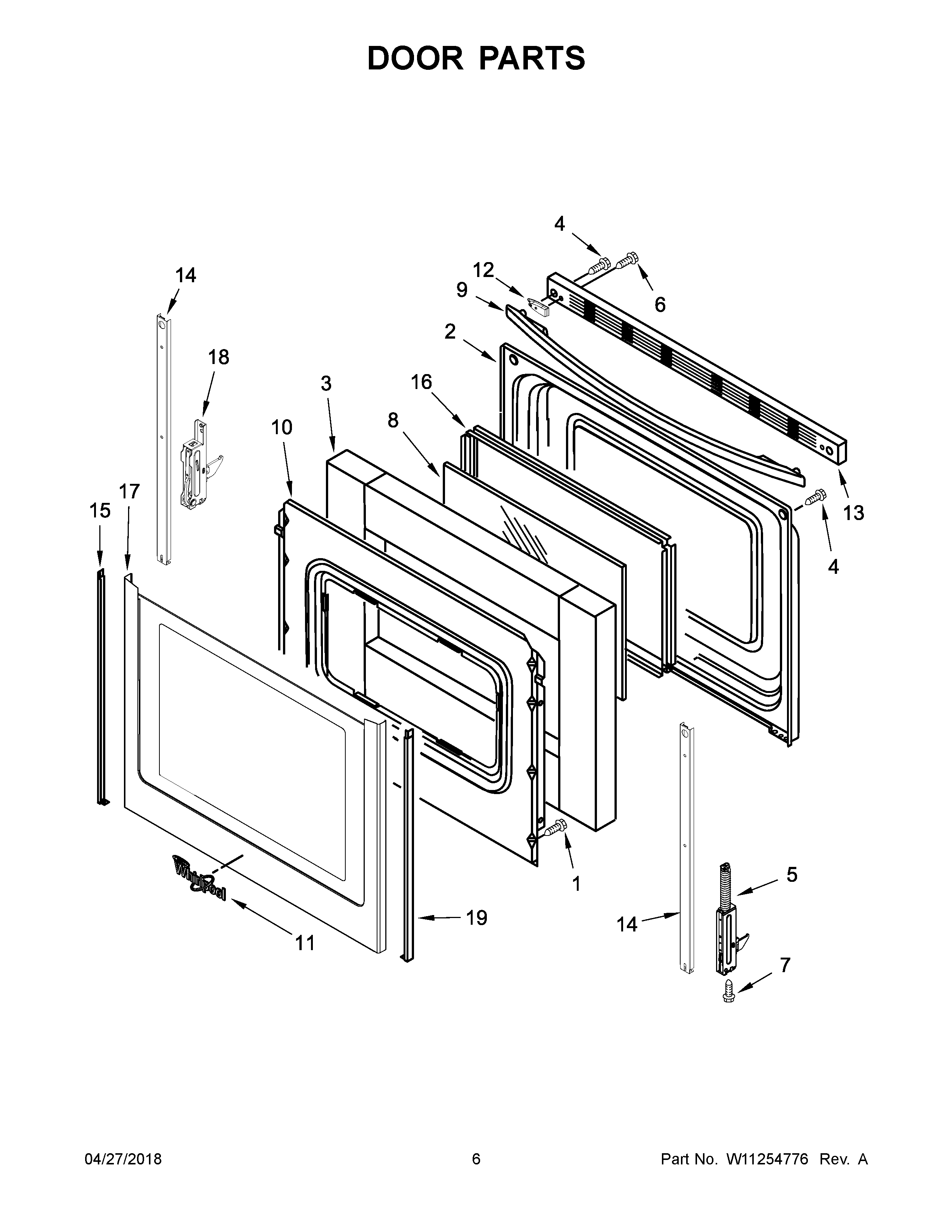

WEC310S0FS2 04 – DOOR PARTS

Products

PositionProduct
1WPW10031790 Whirlpool Screw
2WP9761344 Whirlpool Door Liner
3WPW10278991 Whirlpool Insulation
4WPW10200660 Whirlpool Range Oven Door Handle Screw
5WPW10388635 Whirlpool Door Hinge
6W10896982 Whirlpool Compactor Screw
7WP355214 Whirlpool Screw
8WP8053948 Whirlpool Door Glass
9WPW10618239 Whirlpool Door Handle
10W11539580 Whirlpool Retainer
11W11178521 Whirlpool Dishwasher Nameplate
12WPW10410341 Whirlpool Spacer
13TRIM-VENT
14W11502236 Whirlpool Door Trim
15W10761018 Whirlpool Dishwasher Left Door Trim
16WPW10316950 Whirlpool Window Frame
17W11219379 Whirlpool Door Glass Assembly
18WPW10440013 Whirlpool Door Hinge
19W10761014 Whirlpool Right Door Trim
