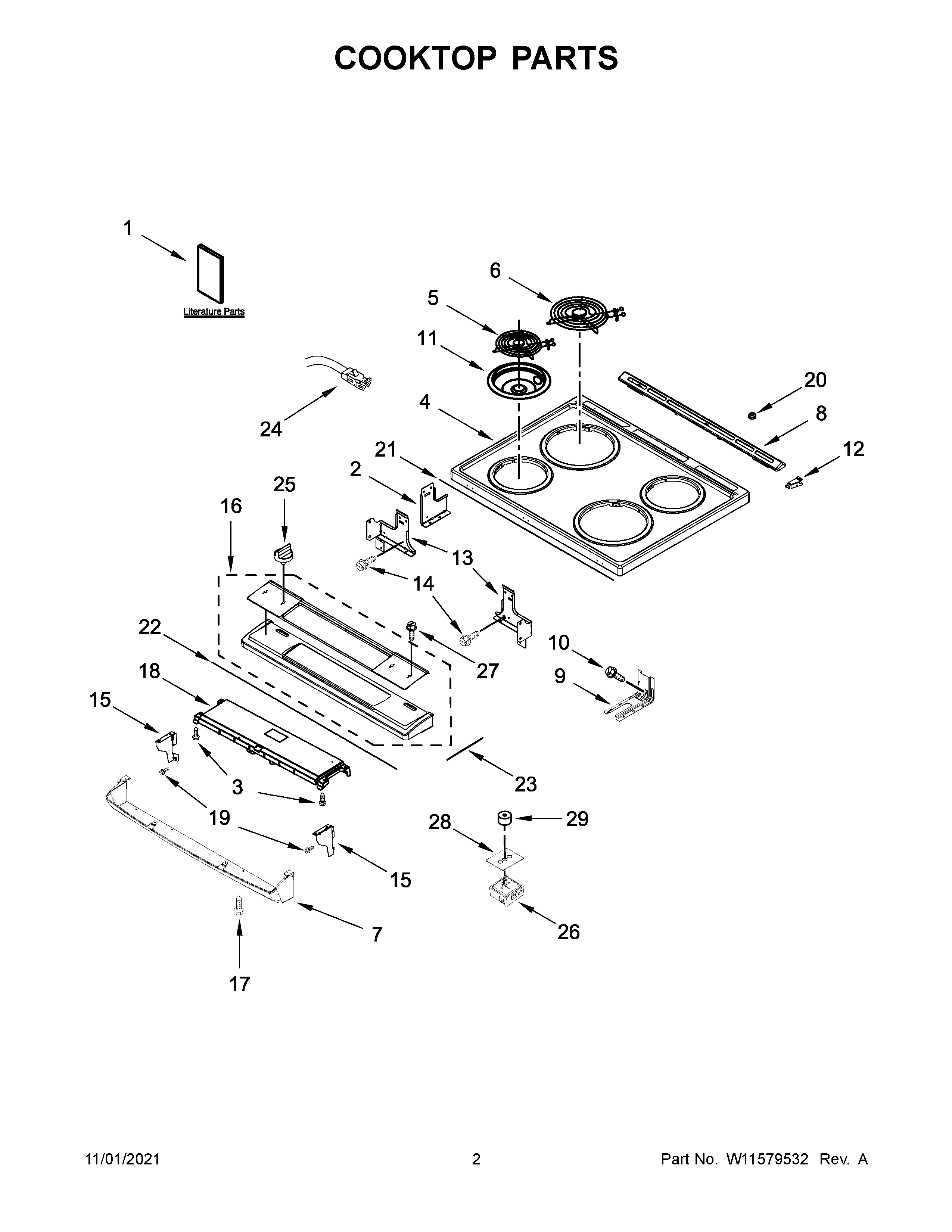

WEC310S0LB1 02 – COOKTOP PARTS

Products

PositionProduct
NICLAMP, WIRE
NIW11453734 Whirlpool Wire Harness
NIW11190435 Whirlpool Wire Harness
NI16515 Whirlpool Clip
NICABINET (NOT A SERVICEABLE PART)
NIW10664316 Whirlpool Clip
NIW10800451 Whirlpool Wire Harness
1BTECH SHEET
1OWNERS MANUAL
1AQUICK START GUIDE
2W10814305 Whirlpool Bracket Support
3W11245710 Whirlpool Refrigerator Screw
4AW11487482 Whirlpool Cooktop
4W10795408 Whirlpool Cooktop
5W11396792 Whirlpool Surface Coil Element
6ELMNT-SURF
7AW10894127 Whirlpool Control Panel
7W10894124 Whirlpool Control Panel
8AW10636527 Whirlpool Vent Trim
8W11240519 Whirlpool Vent Trim
9W11502257 Whirlpool Anchor Tip
10SCREW, ANTI-TIP KIT
11AWPW10196406 Whirlpool 6" Chrome Drip Bowl
11DRIP BOWL 8" W/HOLE CHROME
12W10162253 Whirlpool Mounting Bracket
12AW10162252 Whirlpool Bracket Mounting
13SUPPORT, COOKTOP (LEFT)
13AW10814304 Whirlpool Support Bracket
14WP3196557 Whirlpool Screw
15AW10547961 Whirlpool Endcap Panel
15W10547960 Whirlpool Endcap Panel
16AW11542186 Whirlpool Control Panel
16W11542156 Whirlpool Control Panel
17W10516115 Whirlpool Screw
18W11542161-includeCORE Whirlpool W11542161 Washer Electronic Control Board + Core
19SCREW
20W11690600 Whirlpool Bumper
21W10802441 Whirlpool Gasket
22W10802457 Whirlpool Gasket
23W11744482 Whirlpool Gasket Assembly
24814399 Whirlpool Receptacle Kit
25AKNOB
25W11715915 Whirlpool Knob
26W11661906 Whirlpool Range Infinite Switch
26AW11162115 Whirlpool Infinite Switch
27W10674068 Whirlpool Screw
28GASKET, SWITCH
29W10702912 Whirlpool Switch Gasket
