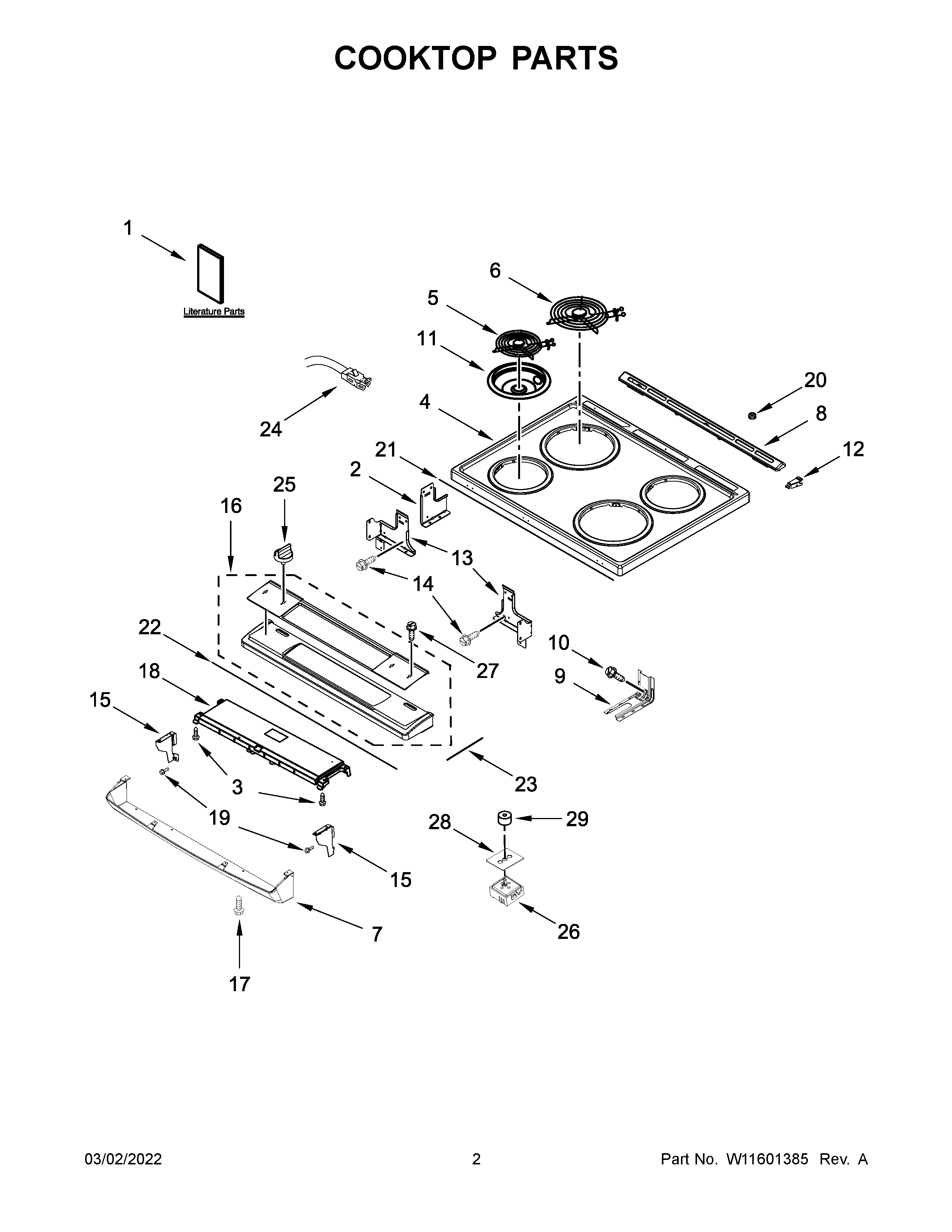

WEC310S0LB2 02 – COOKTOP PARTS

Products

Position	Product
NI	CLAMP, WIRE
NI	W11453734 Whirlpool Wire Harness
NI	W11190435 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	CABINET (NOT A SERVICEABLE PART)
NI	W10664316 Whirlpool Clip
NI	W10800451 Whirlpool Wire Harness
1B	TECH SHEET
1	OWNERS MANUAL
1A	QUICK START GUIDE
2	W10814305 Whirlpool Bracket Support
3	W11245710 Whirlpool Refrigerator Screw
4A	W11487482 Whirlpool Cooktop
4	W10795408 Whirlpool Cooktop
5	W11396792 Whirlpool Surface Coil Element
6	ELMNT-SURF
7A	W10894127 Whirlpool Control Panel
7	W10894124 Whirlpool Control Panel
8A	W10636527 Whirlpool Vent Trim
8	W11240519 Whirlpool Vent Trim
9	W11502257 Whirlpool Anchor Tip
10	SCREW, ANTI-TIP KIT
11A	WPW10196406 Whirlpool 6" Chrome Drip Bowl
11	DRIP BOWL 8" W/HOLE CHROME
12	W10162253 Whirlpool Mounting Bracket
12A	W10162252 Whirlpool Bracket Mounting
13	SUPPORT, COOKTOP (LEFT)
13A	W10814304 Whirlpool Support Bracket
14	WP3196557 Whirlpool Screw
15A	W10547961 Whirlpool Endcap Panel
15	W10547960 Whirlpool Endcap Panel
16A	W11542186 Whirlpool Control Panel
16	W11542156 Whirlpool Control Panel
17	W10516115 Whirlpool Screw
18	CNTRL-ELEC + CORE
19	SCREW
20	W11690600 Whirlpool Bumper
21	W10802441 Whirlpool Gasket
22	W10802457 Whirlpool Gasket
23	W11744482 Whirlpool Gasket Assembly
24	814399 Whirlpool Receptacle Kit
25A	KNOB
25	W11715915 Whirlpool Knob
26	W11661906 Whirlpool Range Infinite Switch
26A	W11162115 Whirlpool Infinite Switch
27	W10674068 Whirlpool Screw
28	GASKET, SWITCH
29	W10702912 Whirlpool Switch Gasket
