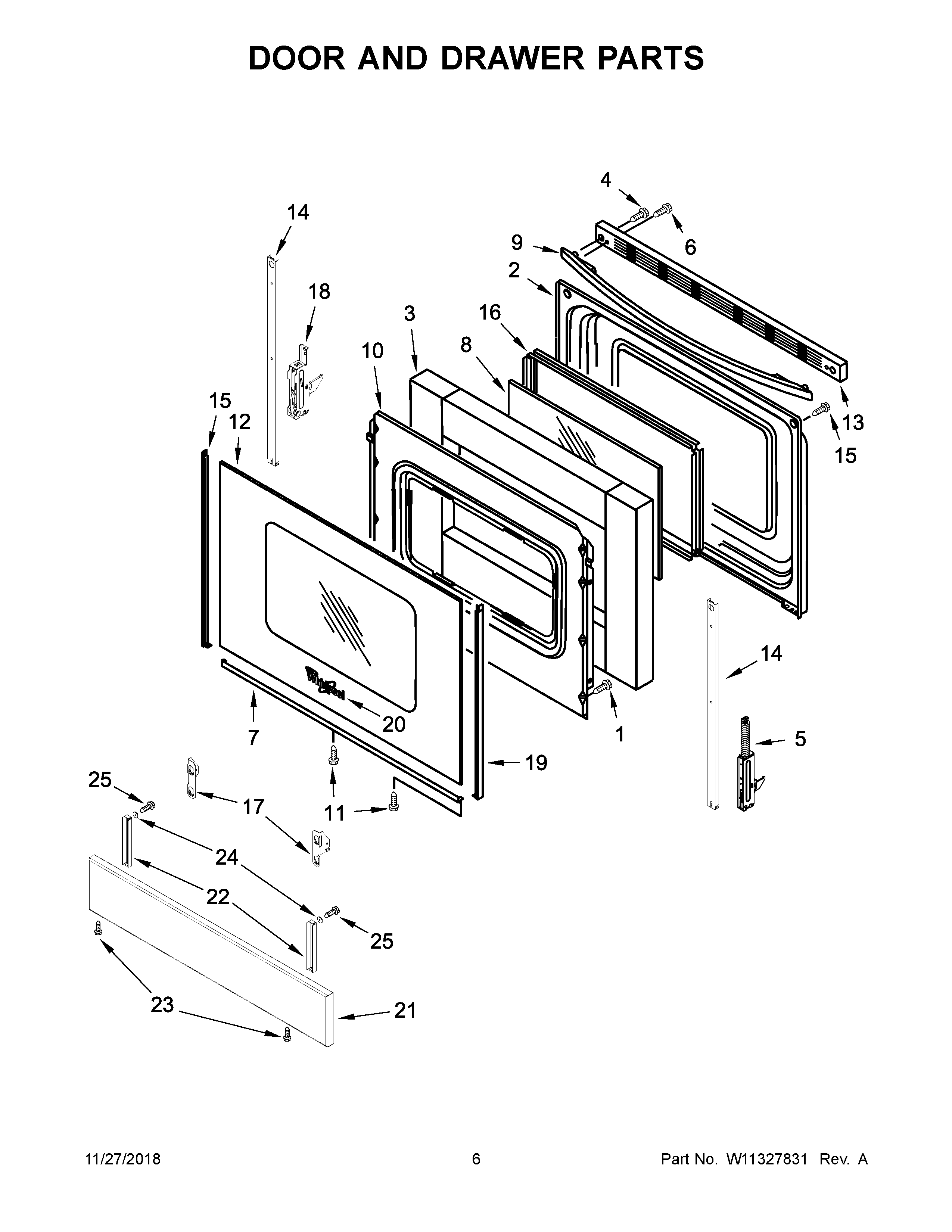

WEC310SAGB2 04 – DOOR AND DRAWER PARTS

Products

Position	Product
1	WPW10031790 Whirlpool Screw
2	WP9761344 Whirlpool Door Liner
3	WPW10278991 Whirlpool Insulation
4	WPW10200660 Whirlpool Range Oven Door Handle Screw
5	WPW10388635 Whirlpool Door Hinge
6	WPW10465148 Whirlpool Screw
7A	WP8523175 Whirlpool Door Trim Assembly
7	WP8523177 Whirlpool Door Trim Assembly
8	WP8053948 Whirlpool Door Glass
9	W10300490 Whirlpool Door Handle
9A	W10300489 Whirlpool Door Handle
10	W11539580 Whirlpool Retainer
11	SCREW
12	W11702167 Whirlpool Door Glass
12A	WPW10409945 Whirlpool Glass Door
13A	W10817433 Whirlpool Vent Trim
13	TRIM-VENT
14	W11502236 Whirlpool Door Trim
15A	WP8523172 Whirlpool Left Door Trim
15	W10761018 Whirlpool Dishwasher Left Door Trim
16	WPW10316950 Whirlpool Window Frame
17A	W11096901 Whirlpool Service Bracket
17	W11096902 Whirlpool Service Bracket
18	WPW10440013 Whirlpool Door Hinge
19	W10761014 Whirlpool Right Door Trim
19A	WP8523166 Whirlpool Door Trim
20	W11178521 Whirlpool Dishwasher Nameplate
21	W11200105 Whirlpool Refrigerator Cover Plate
21A	W11200109 Whirlpool Cover Plate
22	BRACKET, TOE PANEL
23	WP3196557 Whirlpool Screw
24	SPACER, SIDE PANEL
25	SCREW
