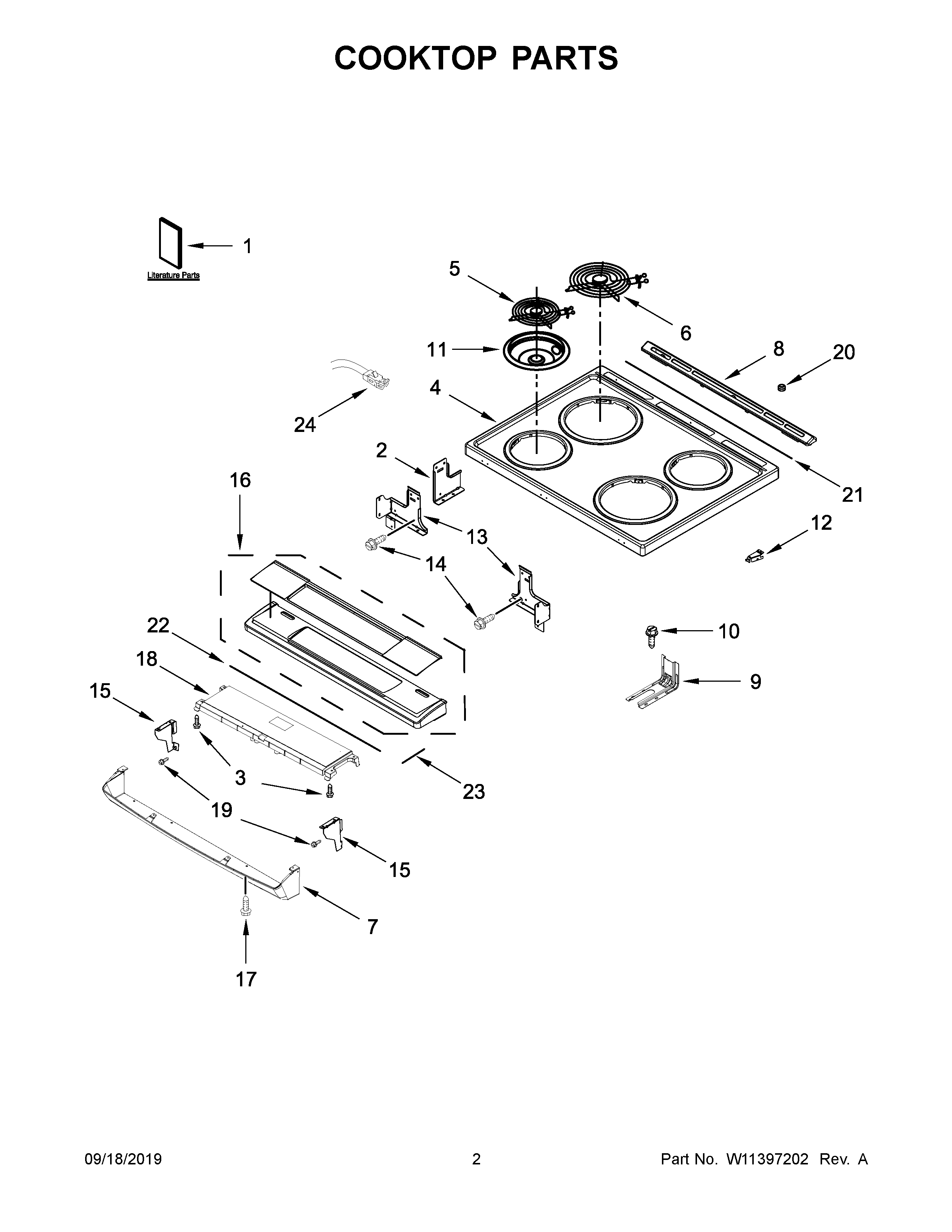

WEC310SAGB3 02 – COOKTOP PARTS

Products

Position	Product
NI	W11226231 Whirlpool Wire Harness
NI	W10664316 Whirlpool Clip
NI	CLAMP, WIRE
NI	W11568999 Whirlpool Wire Harness
NI	16515 Whirlpool Clip
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11190435 Whirlpool Wire Harness
1	INSTRUCTIONS, INSTALLATION
1B	WIRING DIAGRAM
1A	USE AND CARE GUIDE
2	W10814305 Whirlpool Bracket Support
3	W11245710 Whirlpool Refrigerator Screw
4	W10795408 Whirlpool Cooktop
4A	W11487482 Whirlpool Cooktop
5	W11396792 Whirlpool Surface Coil Element
6	ELMNT-SURF
7	W10894124 Whirlpool Control Panel
7A	W10894127 Whirlpool Control Panel
8A	W10636527 Whirlpool Vent Trim
8	W11240519 Whirlpool Vent Trim
9	W11502257 Whirlpool Anchor Tip
10	SCREW, ANTI-TIP KIT
11	DRIP BOWL 8" W/HOLE CHROME
11A	WPW10196406 Whirlpool 6" Chrome Drip Bowl
12	W10162253 Whirlpool Mounting Bracket
12A	W10162252 Whirlpool Bracket Mounting
13	W10814304 Whirlpool Support Bracket
13A	SUPPORT, COOKTOP (LEFT)
14	WP3196557 Whirlpool Screw
15A	W10547961 Whirlpool Endcap Panel
15	W10547960 Whirlpool Endcap Panel
16A	W10893945 Whirlpool Control Panel
16	W10893944 Whirlpool Control Panel
17	W10516115 Whirlpool Screw
18	W10894095-includeCORE Whirlpool W10894095 Washer Electronic Control Board
19	SCREW
20	W11690600 Whirlpool Bumper
21	W10802441 Whirlpool Gasket
22	W10802457 Whirlpool Gasket
23	W11744482 Whirlpool Gasket Assembly
24	814399 Whirlpool Receptacle Kit
