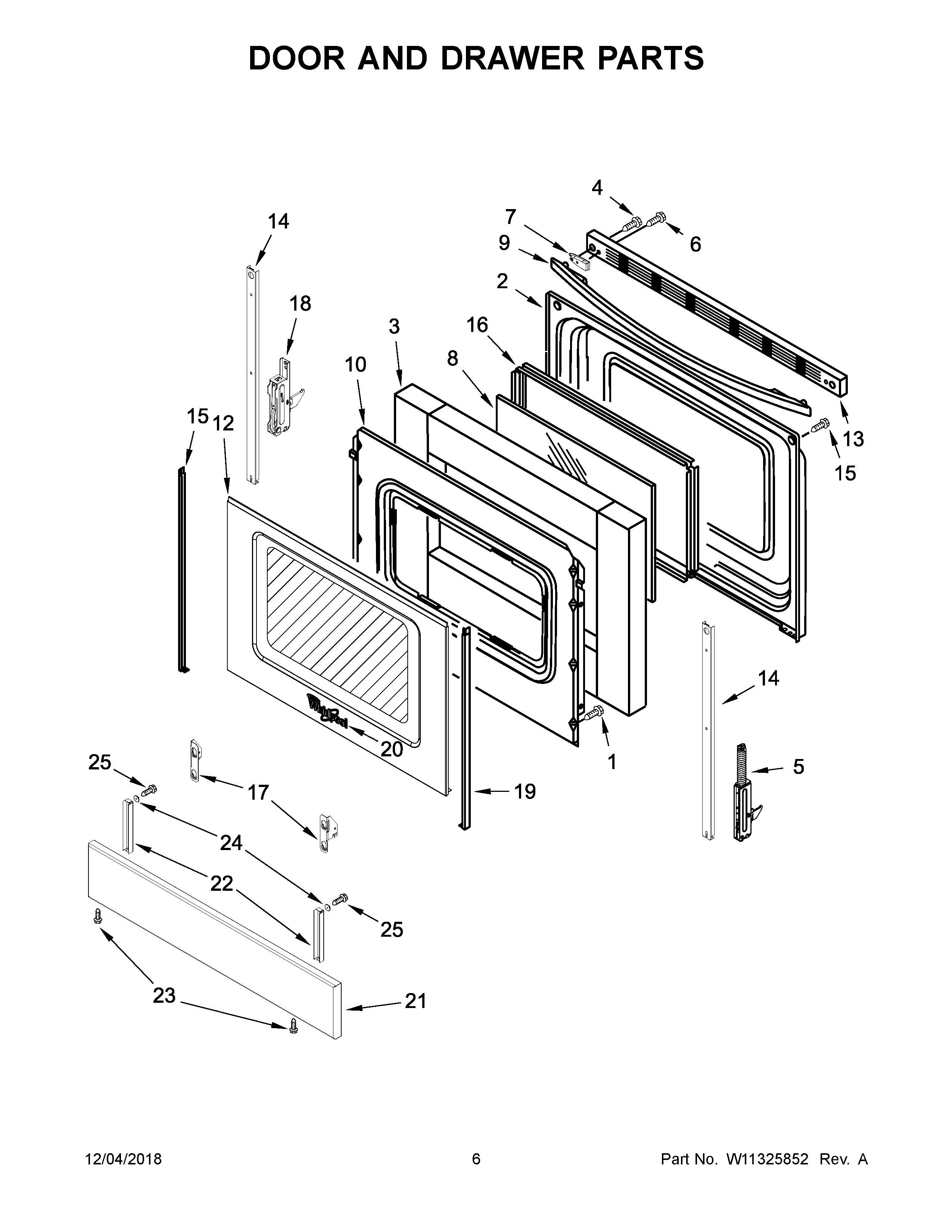

WEC310SAGS2 04 – DOOR AND DRAWER PARTS

WEC310SAGS2 04 – DOOR AND DRAWER PARTS

Written by

in

WEC310SAGS2 04 – DOOR AND DRAWER PARTS

Products

PositionProduct
1WPW10031790 Whirlpool Screw
2WP9761344 Whirlpool Door Liner
3WPW10278991 Whirlpool Insulation
4WPW10200660 Whirlpool Range Oven Door Handle Screw
5WPW10388635 Whirlpool Door Hinge
6W10896982 Whirlpool Compactor Screw
7WPW10410341 Whirlpool Spacer
8WP8053948 Whirlpool Door Glass
9WPW10618239 Whirlpool Door Handle
10W11539580 Whirlpool Retainer
11SCREW
12W11219379 Whirlpool Door Glass Assembly
13TRIM-VENT
14W11502236 Whirlpool Door Trim
15W10761018 Whirlpool Dishwasher Left Door Trim
16WPW10316950 Whirlpool Window Frame
17AW11096901 Whirlpool Service Bracket
17W11096902 Whirlpool Service Bracket
18WPW10440013 Whirlpool Door Hinge
19W10761014 Whirlpool Right Door Trim
20W11178521 Whirlpool Dishwasher Nameplate
21W11200111 Whirlpool Cover Plate
22BRACKET, TOE PANEL
23WP3196557 Whirlpool Screw
24SPACER, SIDE PANEL
25SCREW
