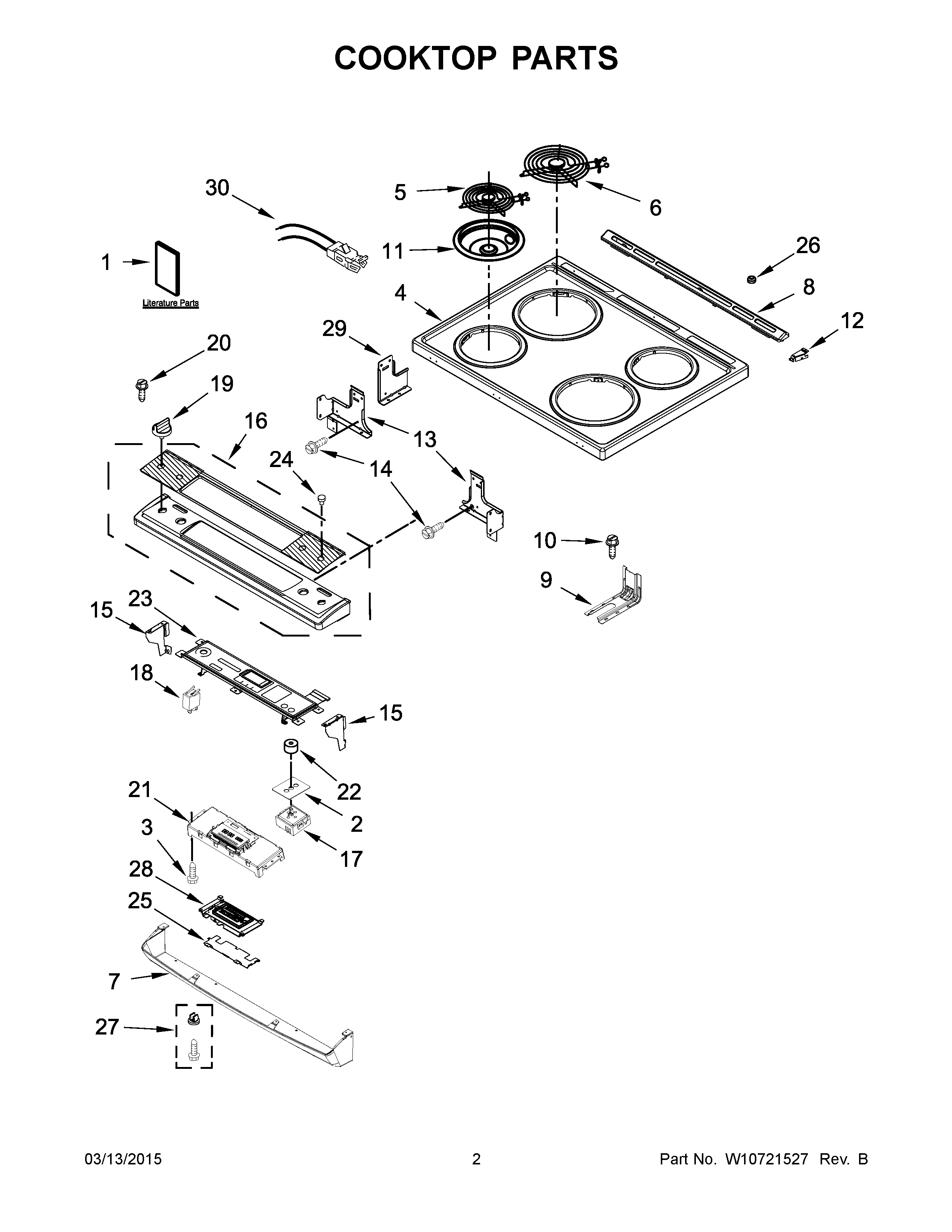

WEC530H0DW0 02 – COOKTOP PARTS

WEC530H0DW0 02 – COOKTOP PARTS

Written by

in

WEC530H0DW0 02 – COOKTOP PARTS

Products

PositionProduct
NIW11025616 Whirlpool Wire Harness
NIW10580239 Whirlpool Wire Harness
NIW10580238 Whirlpool Wire Harness
NICABINET (NOT A SERVICEABLE PART)
NIW10664316 Whirlpool Clip
NIW11226772 Whirlpool Wire Harness
NIW10580260 Whirlpool Wire Harness
1BSHEET, TECH
1INSTRUCTIONS, INSTALLATION
1AUSE AND CARE GUIDE
1EWIRING DIAGRAM
1CSAFER COOKING TIPS (ENGLISH
1DQUICK START GUIDE
2GASKET, SWITCH
3SCREW
4AW10795408 Whirlpool Cooktop
4W11487482 Whirlpool Cooktop
5W11168414 Whirlpool Range 6" Surface Element
6W11161939 Whirlpool Range Surface Element 8"
7WPL W10570528
8W10636527 Whirlpool Vent Trim
8AW11240519 Whirlpool Vent Trim
9W11502257 Whirlpool Anchor Tip
10SCREW, ANTI-TIP KIT
11DRIP BOWL 8" W/HOLE CHROME
11AWPW10196406 Whirlpool 6" Chrome Drip Bowl
12AW10162252 Whirlpool Bracket Mounting
12W10162253 Whirlpool Mounting Bracket
13W10289169 Whirlpool Bracket Support
13AW10289170 Whirlpool Support Bracket
14WPW10067840 Whirlpool Screw
15AW10547961 Whirlpool Endcap Panel
15W10547960 Whirlpool Endcap Panel
16BW10728520 Whirlpool Control Panel
16AW10728519 Whirlpool Control Panel
16W10728518 Whirlpool Control Panel
17AW11162115 Whirlpool Infinite Switch
17W10911303 Whirlpool Infinite Switch
18WP8523265 Whirlpool Indicator Light
19AW11568623 Whirlpool Knob
19BW10828837 Whirlpool Knob
19W11677626 Whirlpool Knob
20WP3400882 Whirlpool Screw
21W11050550 Whirlpool Electronic Control Board + Core
22W10702912 Whirlpool Switch Gasket
23BW10728546 Whirlpool Membrane Switch
23AW10728537 Whirlpool Membrane Switch
23W10728534 Whirlpool Dishwasher Membrane Switch
24WP3196068 Whirlpool Light Lens
25W10558372 Whirlpool Bracket Mounting
26W11104127 Whirlpool Bumper Assembly
27W11025100 Whirlpool Insert
28WPW10603098 Whirlpool Stove Electronic Control Board + Core
29W10598048 Whirlpool Support Bracket
30814399 Whirlpool Receptacle Kit
