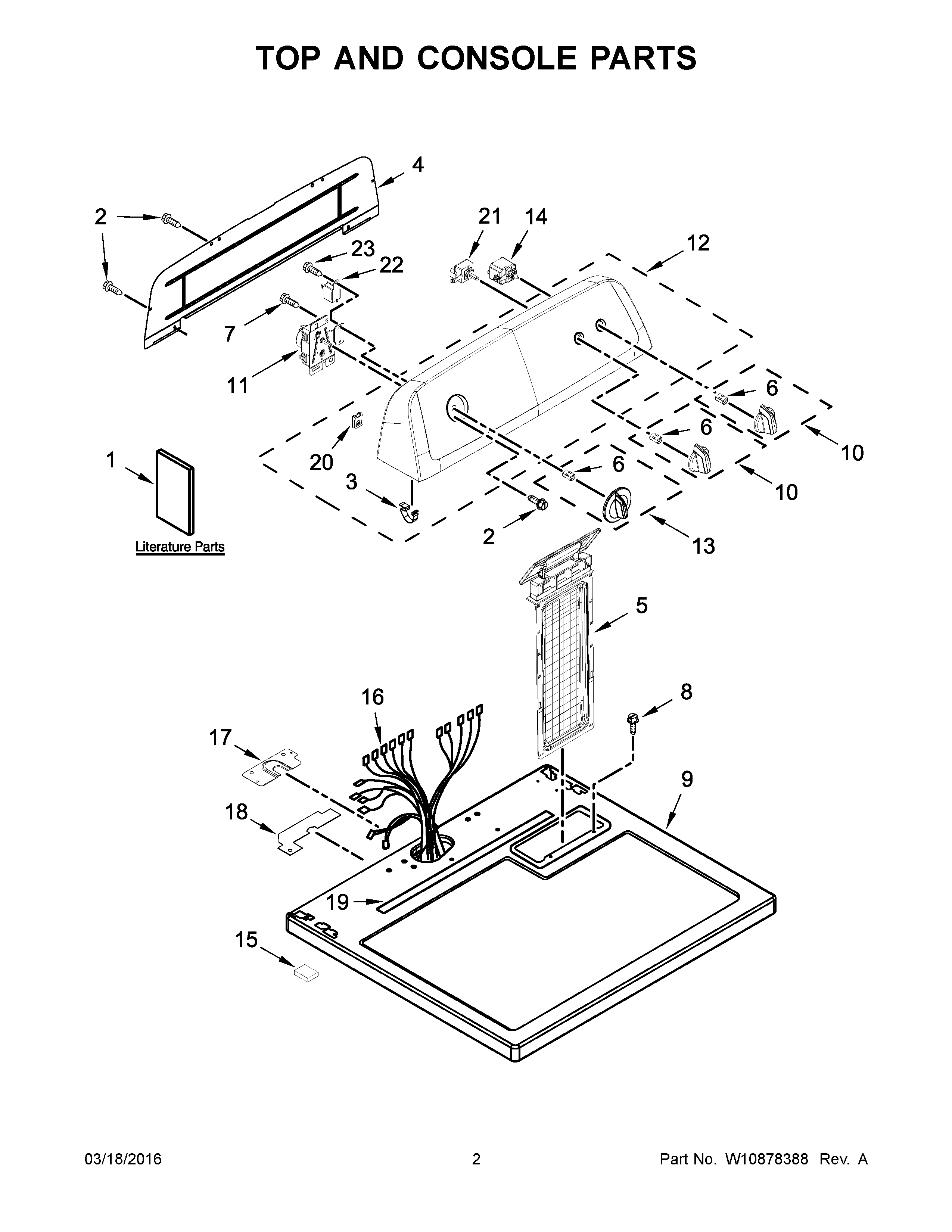

WED4616FW0 02 – TOP AND CONSOLE PARTS

WED4616FW0 02 – TOP AND CONSOLE PARTS

Written by

in

WED4616FW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWiring Diagram
1AINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
2WP693995 Whirlpool Screw
3WP8312709 Whirlpool Endcap Clip
4WPW10416486 Whirlpool Rear Panel
5WPW10717210 Whirlpool Dryer Lint Screen Filter
6WP8536939 Whirlpool Spring Clip
8W11693756 Whirlpool Screw Assembly
9WP8563663 Whirlpool Top Assembly
10WPW10453947 Whirlpool Knob
11WPW10436303 Whirlpool Dryer Timer
12W10917343 Whirlpool Console
13WPW10711289 Whirlpool Washer Control Knob Dryer
14WPW10446920 Whirlpool Switch Start
153389682 Whirlpool Spacer
16W10450289 Whirlpool Wire Harness
17BRACKET, HARNESS
18SEAL, HARNESS
19W10316616 Whirlpool Seal
20W11213336 Whirlpool Nut
21W11661755 Whirlpool Switch
22WP694419 Whirlpool Buzzer Adjuster
23WP90767 Whirlpool Screw
