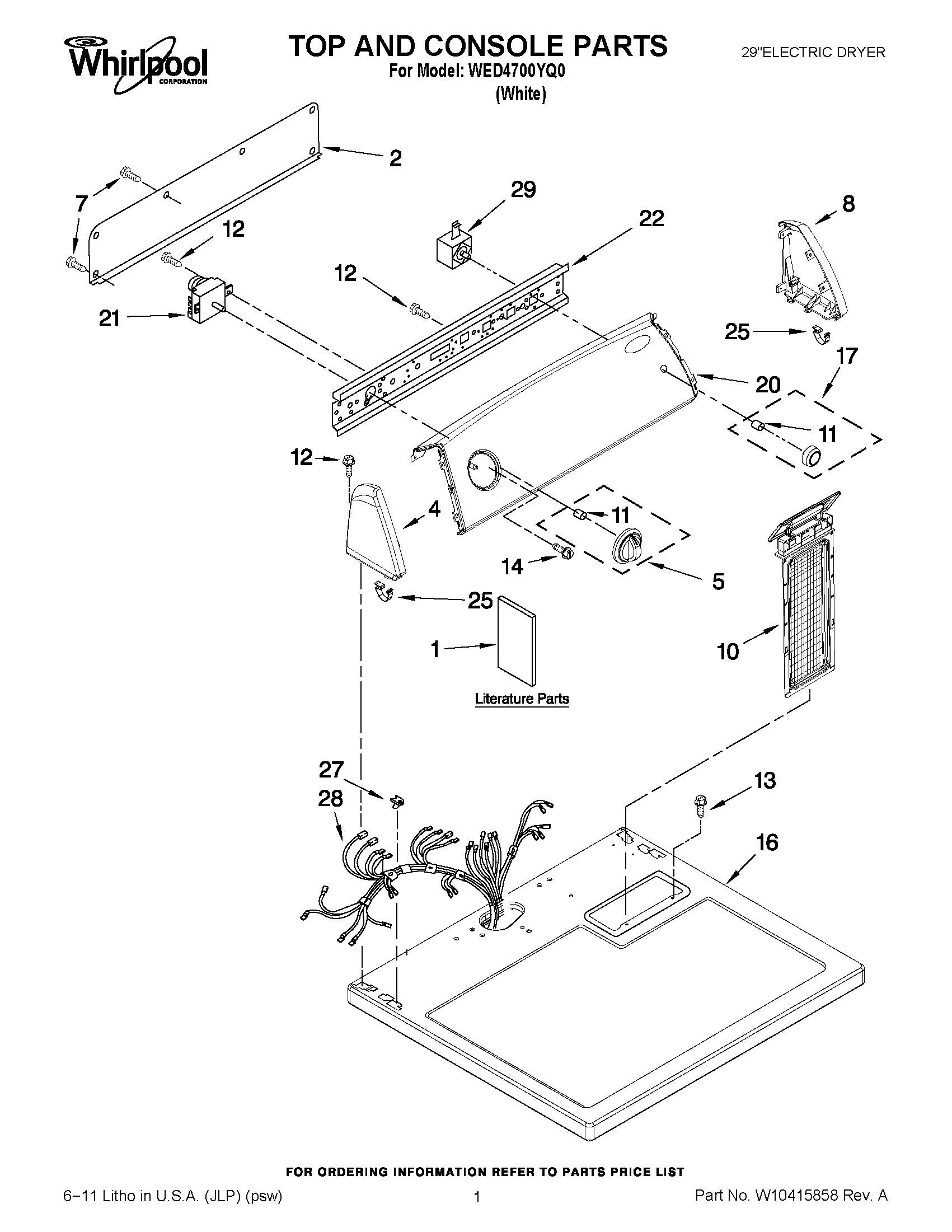

WED4700YQ0 01 – TOP AND CONSOLE PARTS

WED4700YQ0 01 – TOP AND CONSOLE PARTS

Written by

in

WED4700YQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1WIRING DIAGRAM
1GUIDE, USE AND CARE
2W10103406 Whirlpool Rear Panel
4WP8565957 Whirlpool Endcap Assembly
5TIMER KNOB ASSEMBLY
7WP693995 Whirlpool Screw
8WP8565954 Whirlpool Endcap
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10915367 Whirlpool Screw Assembly
16WP8563663 Whirlpool Top Assembly
17W10034770 Whirlpool Knob Assembly
20CONSOLE PANEL & BRACKET ASSEMBLY
21WPW10185976 Whirlpool Timer
228566052 Whirlpool Bracket
25WP8312709 Whirlpool Endcap Clip
27W11229607 Whirlpool Nut
28HARNESS, WIRING
29WP3977456 Whirlpool Start Switch
