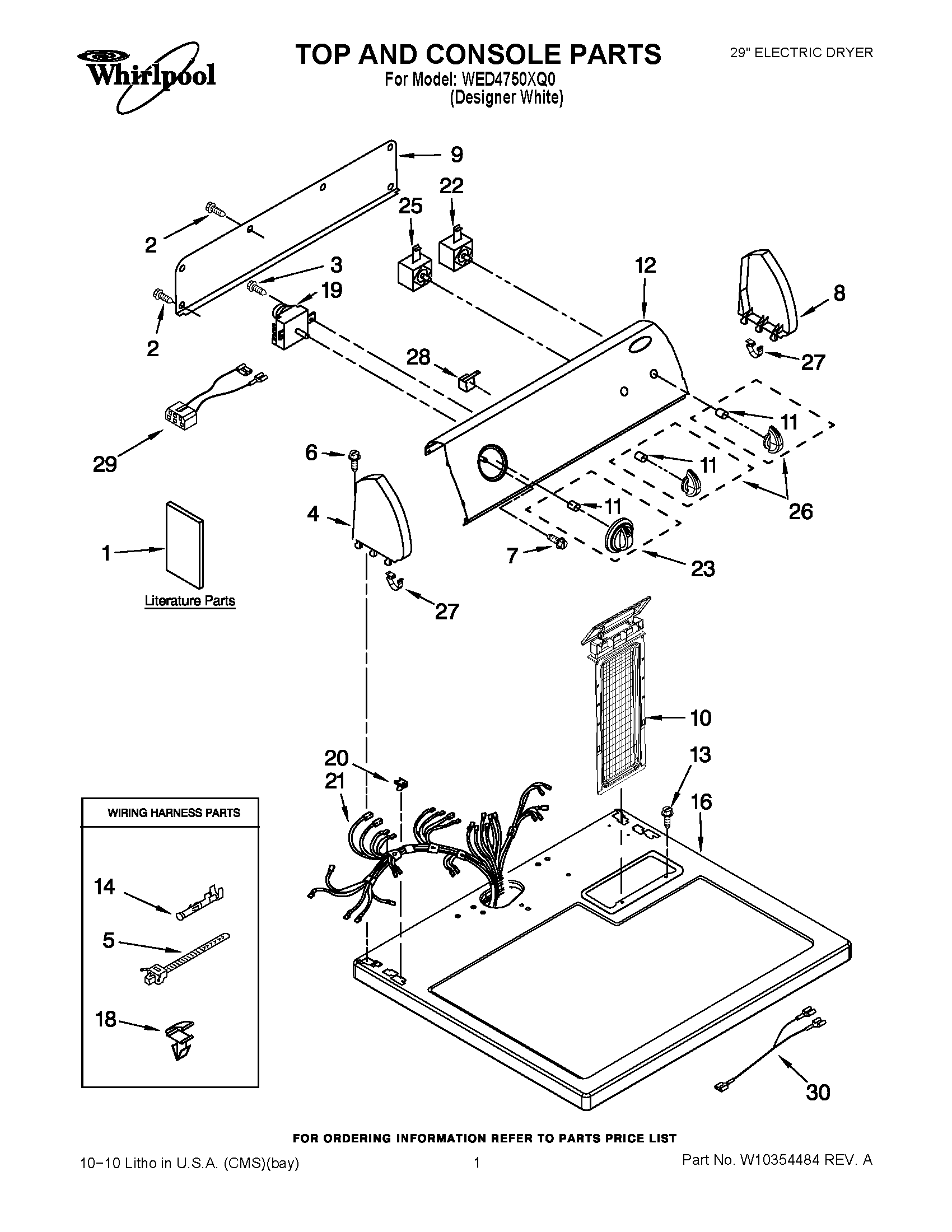

WED4750XQ0 01 – TOP AND CONSOLE PARTS

WED4750XQ0 01 – TOP AND CONSOLE PARTS

Written by

in

WED4750XQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1INSTALLATION INSTRUCTIONS
1GUIDE, USE AND CARE
2WP693995 Whirlpool Screw
3WP90767 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5WP3391018 Whirlpool Wire Tie
6WP388326 Whirlpool Screw
73400859 Whirlpool Screw
8WP8565954 Whirlpool Endcap
9W10103406 Whirlpool Rear Panel
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12CONTROL PANEL & BRACKET ASSEMBLY
13W11693756 Whirlpool Screw Assembly
14WP94614 Whirlpool Terminal
16WP8563663 Whirlpool Top Assembly
18WP3394427 Whirlpool Clip
19WP8299779 Whirlpool Timer
20WP357213 Whirlpool Hinge Stopper
21HARNESS, WIRING
22WP3977456 Whirlpool Start Switch
23TIMER KNOB ASSEMBLY
253405152 Whirlpool Switch Assembly
26W10034770 Whirlpool Knob Assembly
27WP8312709 Whirlpool Endcap Clip
28WP694419 Whirlpool Buzzer Adjuster
293401695 Whirlpool Wire Harness
30JUMPER, PUSH-TO-START
