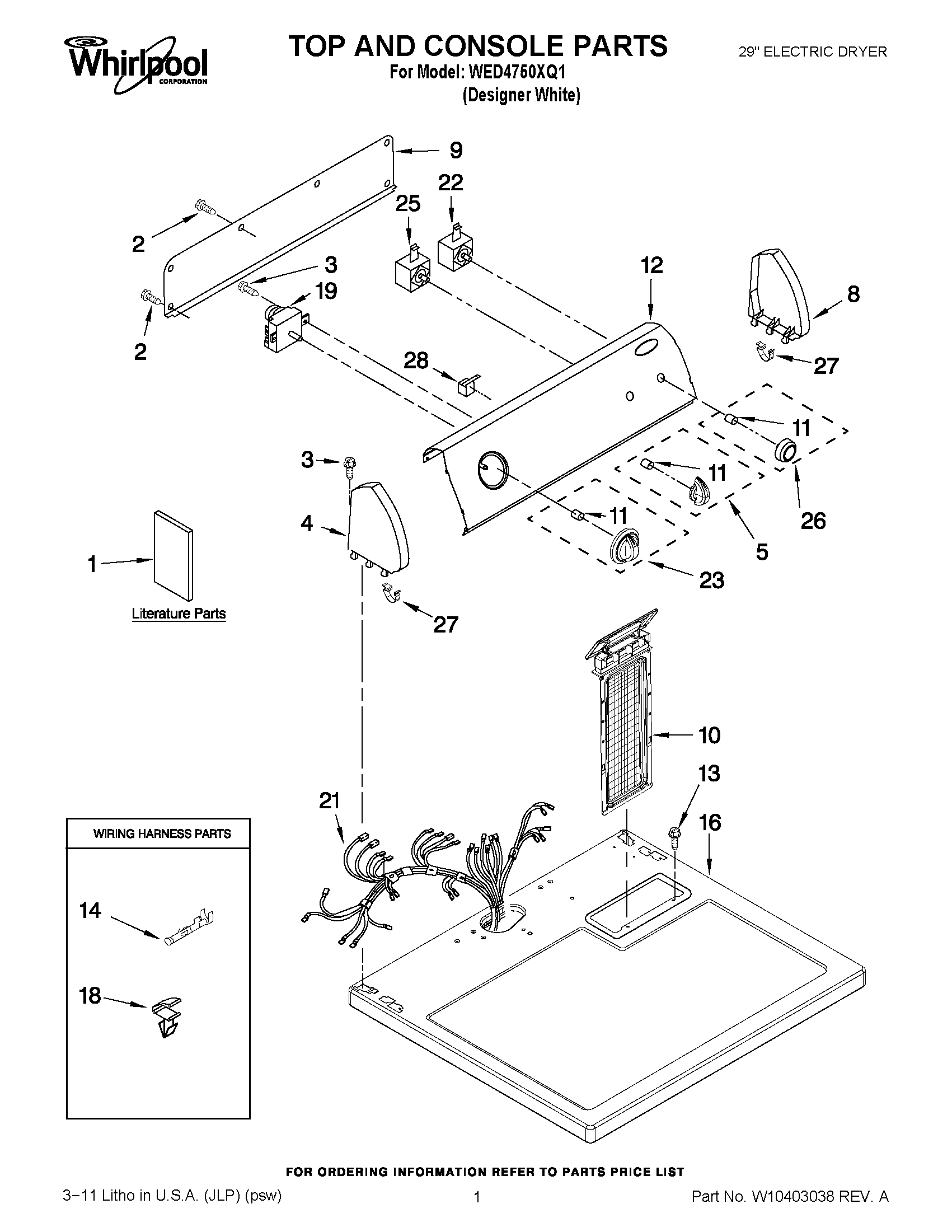

WED4750XQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1	GUIDE, USE AND CARE
1	WIRING DIAGRAM
2	WP693995 Whirlpool Screw
3	WP90767 Whirlpool Screw
4	WP8565957 Whirlpool Endcap Assembly
5	Knob, Control (3)
8	WP8565954 Whirlpool Endcap
9	W10103406 Whirlpool Rear Panel
10	W10874409 Whirlpool Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	CONTROL PANEL & BRACKET ASSEMBLY
13	W11693756 Whirlpool Screw Assembly
14	WP94614 Whirlpool Terminal
16	WP8563663 Whirlpool Top Assembly
18	WP3394427 Whirlpool Clip
19	W10894766 Whirlpool Dryer Timer
21	HARNESS, WIRING
22	WP3977456 Whirlpool Start Switch
23	TIMER KNOB ASSEMBLY
25	3405152 Whirlpool Switch Assembly
26	W10034770 Whirlpool Knob Assembly
27	WP8312709 Whirlpool Endcap Clip
28	WP694419 Whirlpool Buzzer Adjuster
