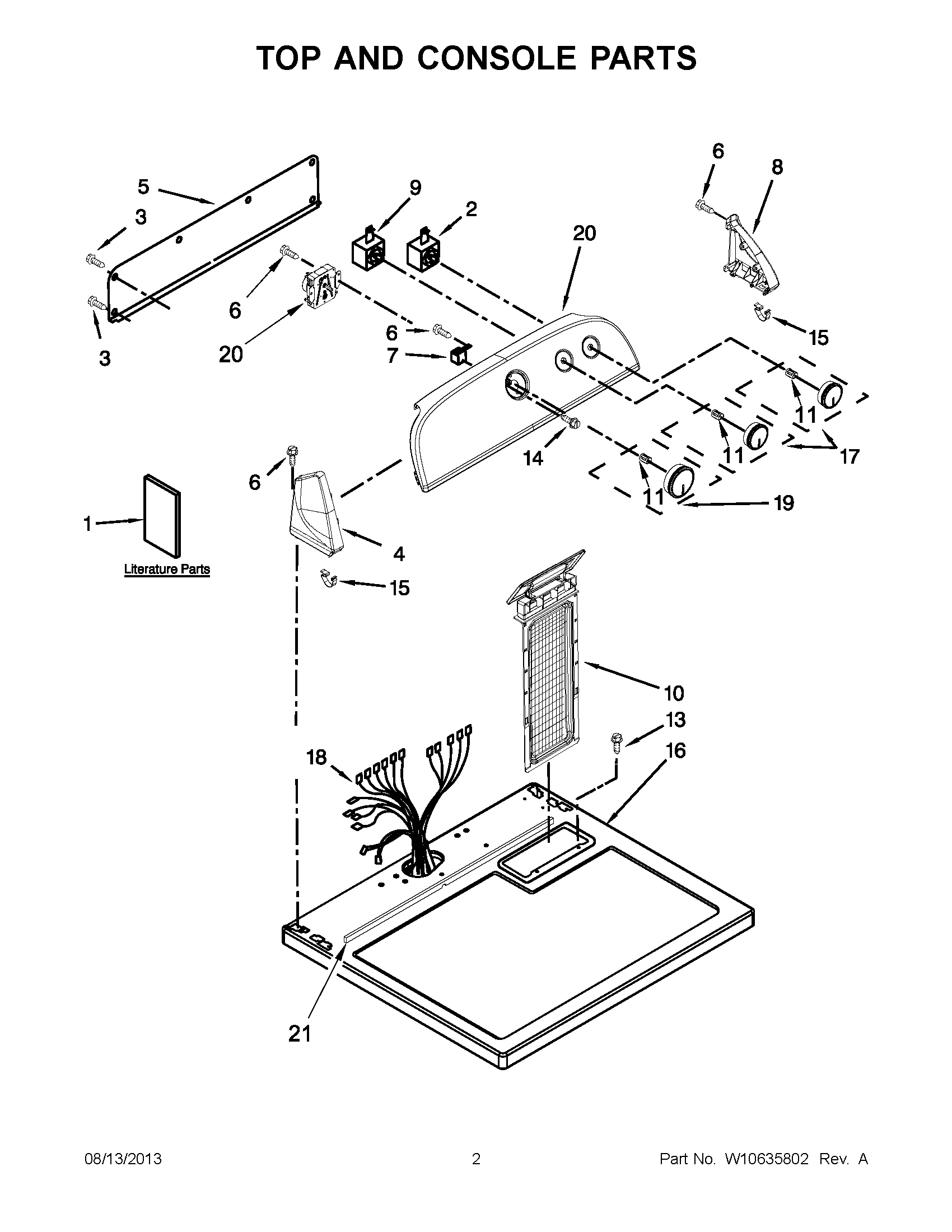

WED4800BQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	USE AND CARE GUIDE
1	Wiring Diagram
1	INSTALLATION INSTRUCTIONS
2	WPW10117655 Whirlpool Dryer Start Switch
3	WP693995 Whirlpool Screw
4	WPW10520782 Whirlpool Panel
5	W10556829 Whirlpool Rear Panel
6	WP90767 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	WPW10520780 Whirlpool Panel
9	WP3399640 Whirlpool Switch
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP3979617 Whirlpool Timer
13	W11693756 Whirlpool Screw Assembly
14	W10850756 Whirlpool Screw
15	WP8312709 Whirlpool Endcap Clip
16	WP8563663 Whirlpool Top Assembly
18	MAIN, WIRING HARNESS
19	W10756270 Whirlpool Dryer Timer Knob
20	WPW10557237 Whirlpool Control Panel
21	W10316616 Whirlpool Seal
