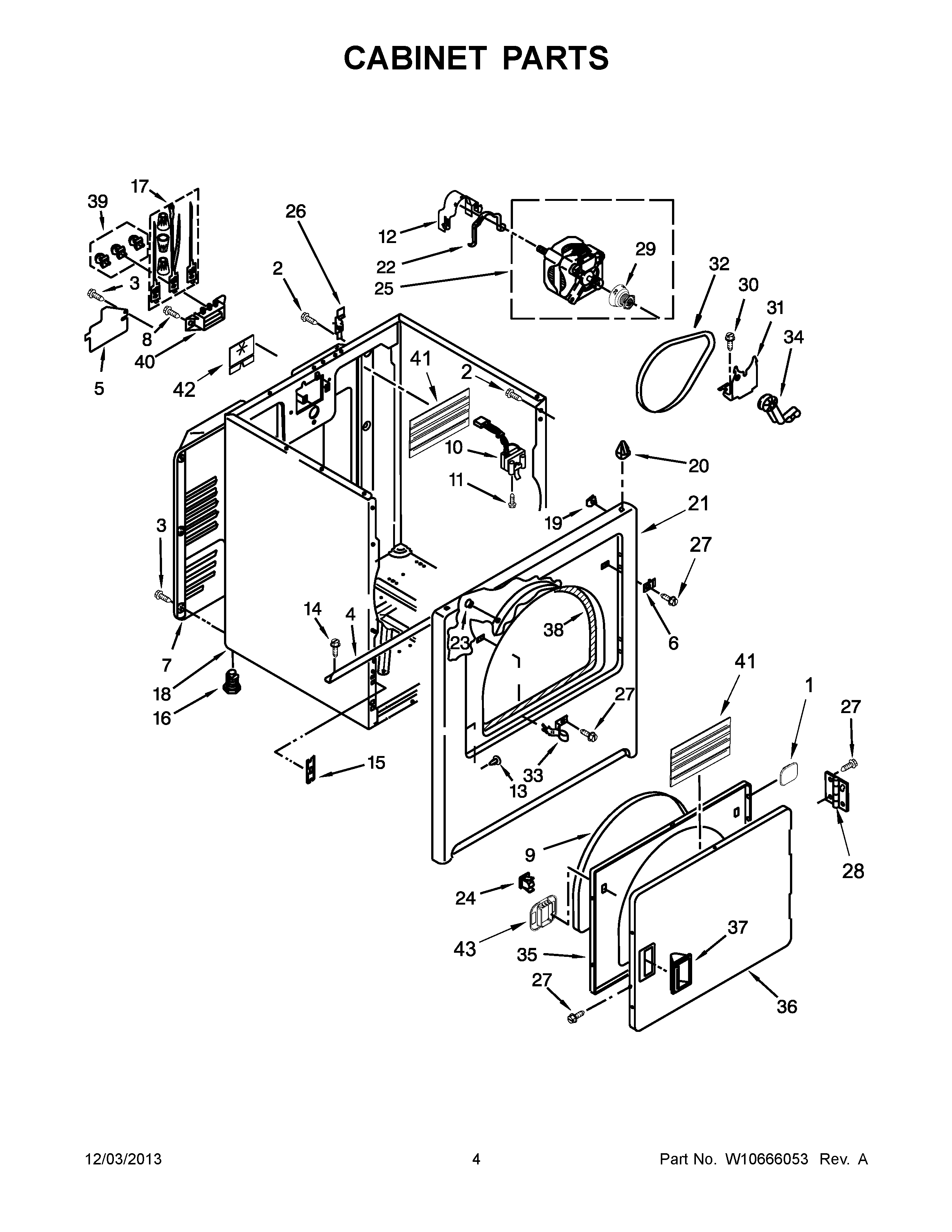

WED4800BQ1 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W11173656 Whirlpool Cover
2	SCREW
3	WP693995 Whirlpool Screw
4	BRACKET, CABINET
5	W11298298 Whirlpool Cover
6	W11684591 Whirlpool Dryer Plug
7	280043 Whirlpool Rear Panel
8	WP308685 Whirlpool Microwave Screw
9	SEAL-DOOR DRYER
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	WP3404162 Whirlpool Clamp
13	WP3404413 Whirlpool Plug
14	WP3390631 Whirlpool Screw
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	FEET-LVLNG (SET OF 4)
17	279318 Whirlpool Terminal
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP8066092 Whirlpool Panel Clip
21	W10806345 Whirlpool Panel
22	CLAMP
23	279220 Whirlpool Clip
24	W11429587 Whirlpool Catch Assembly
25	279827 Whirlpool Dryer Drive Motor
26	WP8066217 Whirlpool Hinge
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	WP8066184 Whirlpool Dryer Motor Pulley
30	3400500 Whirlpool Screw
31	WP348780 Whirlpool Base
32	341241 Whirlpool Dryer Drum Belt
33	W11429589 Whirlpool Strike
34	WP691366 Whirlpool Dryer Idler Pulley Assembly
35	WPW10463967 Whirlpool Door Assembly
36	W10861227 Whirlpool Door Assembly
37	WPW10549553 Whirlpool Dryer Door Handle
38	W11035878 Whirlpool Bearing and Seal
39	279393 Whirlpool Terminal Block Screw and Nut Kit
40	WP3397659 Whirlpool Terminal Block
41	W11230156 Whirlpool Pad
42	WPW10529197 Whirlpool Catch Assembly
