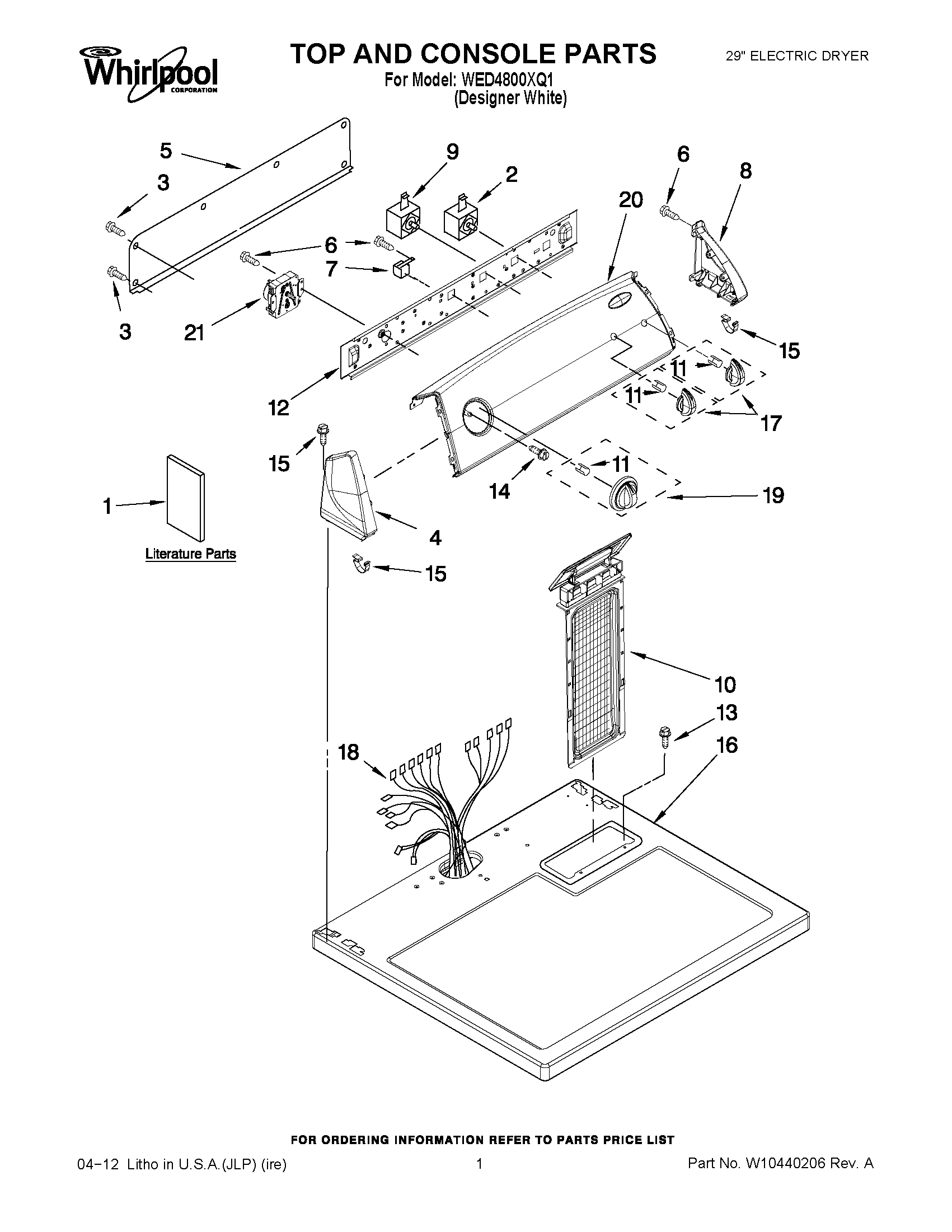

WED4800XQ1 01 – TOP AND CONSOLE PARTS

WED4800XQ1 01 – TOP AND CONSOLE PARTS

Written by

in

WED4800XQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1GUIDE, USE AND CARE
1INSTALLATION INSTRUCTIONS
2WPW10117655 Whirlpool Dryer Start Switch
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5W10103406 Whirlpool Rear Panel
6WP90767 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8WP8565954 Whirlpool Endcap
9WP3399639 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
128566052 Whirlpool Bracket
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP8312709 Whirlpool Endcap Clip
16WP8563663 Whirlpool Top Assembly
17Knob, Control (3)
18Harness, Wiring
19TIMER KNOB ASSEMBLY
20WPW10295262 Whirlpool Control Panel
21WP3979618 Whirlpool Timer
