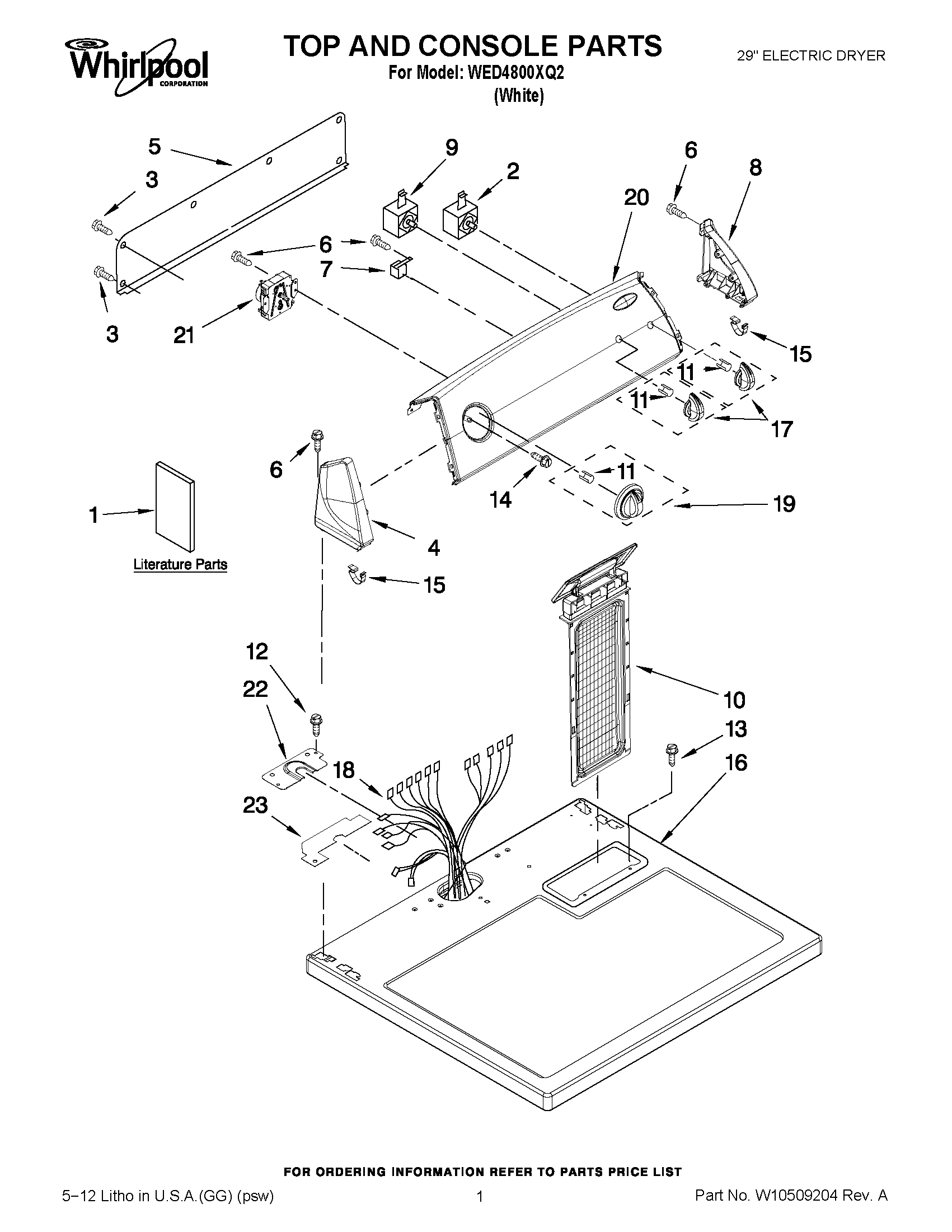

WED4800XQ2 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	WIRING DIAGRAM
1	GUIDE, USE AND CARE
1	INSTALLATION INSTRUCTIONS
2	WPW10117655 Whirlpool Dryer Start Switch
3	WP693995 Whirlpool Screw
4	WP8565957 Whirlpool Endcap Assembly
5	W10103406 Whirlpool Rear Panel
6	WP90767 Whirlpool Screw
7	WP694419 Whirlpool Buzzer Adjuster
8	WP8565954 Whirlpool Endcap
9	WP3399639 Whirlpool Switch
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	W11693756 Whirlpool Screw Assembly
14	W10850756 Whirlpool Screw
15	WP8312709 Whirlpool Endcap Clip
16	WP8563663 Whirlpool Top Assembly
17	Knob, Control (3)
18	W10470705 Whirlpool Harness Wire
19	TIMER KNOB ASSEMBLY
20	CONTROL PANEL & BRACKET ASSEMBLY
21	WP3979618 Whirlpool Timer
22	BRACKET, HARNESS
23	SEAL, HARNESS
