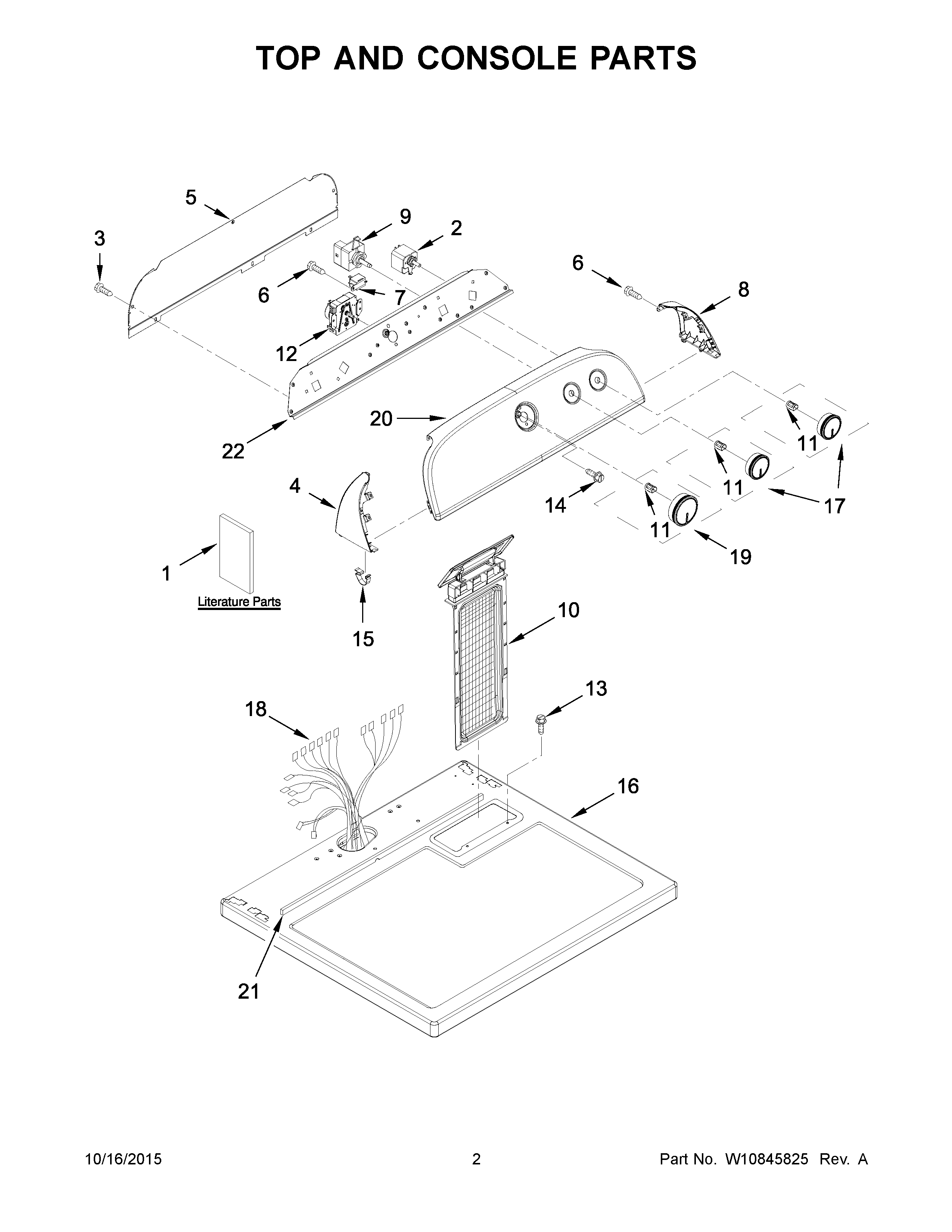

WED4810EW1 02 – TOP AND CONSOLE PARTS

WED4810EW1 02 – TOP AND CONSOLE PARTS

Written by

in

WED4810EW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AUSE AND CARE GUIDE
1BWiring Diagram
1INSTALLATION INSTRUCTIONS
2WPW10117655 Whirlpool Dryer Start Switch
3WP693995 Whirlpool Screw
4WPW10520782 Whirlpool Panel
5W10556829 Whirlpool Rear Panel
6WP90767 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8WPW10520780 Whirlpool Panel
9WP3399640 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WPW10185982 Whirlpool Timer
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP8312709 Whirlpool Endcap Clip
16WP8563663 Whirlpool Top Assembly
18W10565794 Whirlpool Wire Harness
19W10756270 Whirlpool Dryer Timer Knob
20W10692606 Whirlpool Control Panel
21W10316616 Whirlpool Seal
22BRACKET, CONTROL
