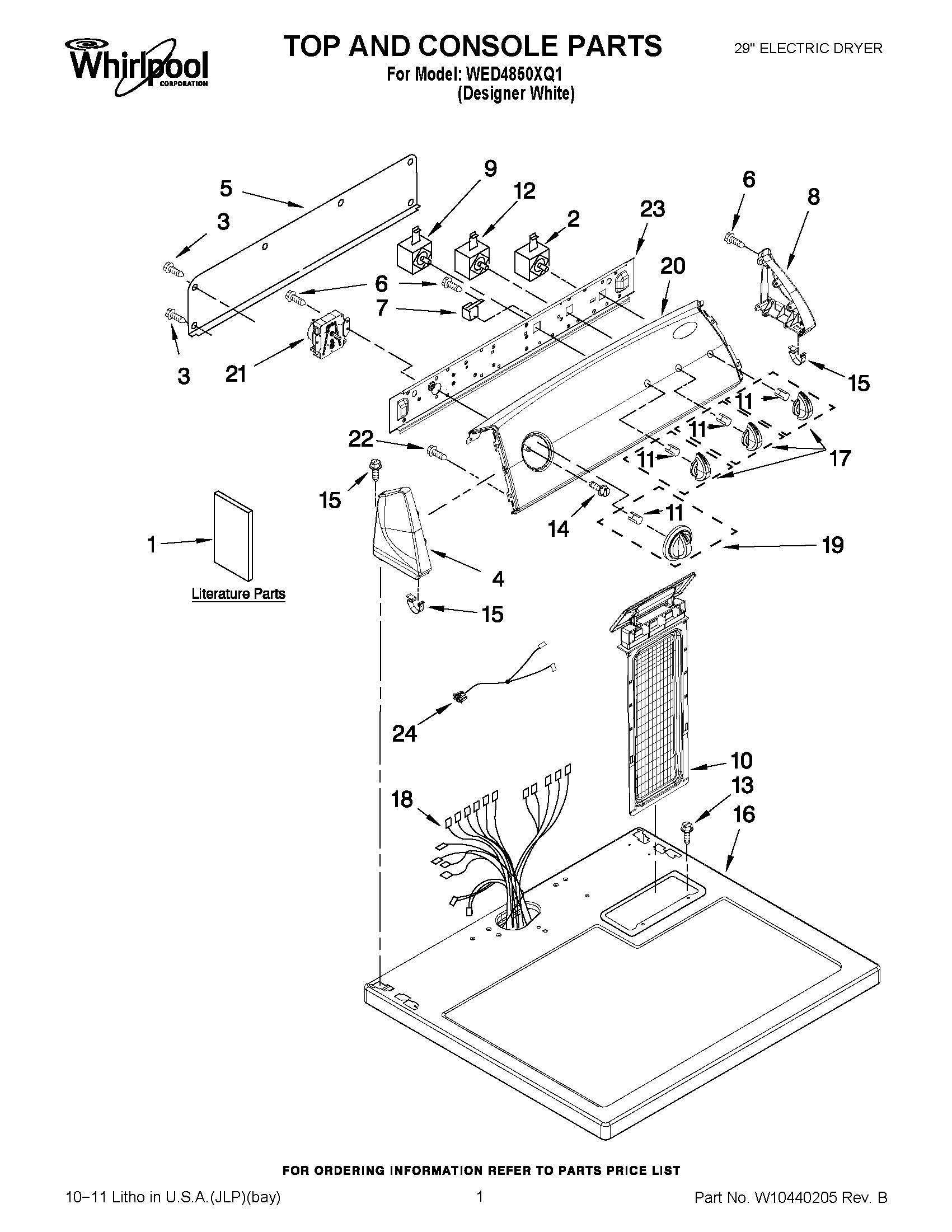

WED4850XQ1 01 – TOP AND CONSOLE PARTS

WED4850XQ1 01 – TOP AND CONSOLE PARTS

Written by

in

WED4850XQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1WIRING DIAGRAM
1GUIDE, USE AND CARE
2WPW10117655 Whirlpool Dryer Start Switch
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5W10103406 Whirlpool Rear Panel
6WP90767 Whirlpool Screw
7WP694419 Whirlpool Buzzer Adjuster
8WP8565954 Whirlpool Endcap
9WP3399639 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP3405156 Whirlpool Switch
13W11693756 Whirlpool Screw Assembly
14W10850756 Whirlpool Screw
15WP8312709 Whirlpool Endcap Clip
16WP8563663 Whirlpool Top Assembly
17Knob, Control (3)
18Harness, Wiring
19TIMER KNOB ASSEMBLY
20CONTROL PANEL & BRACKET ASSEMBLY
21WP3979618 Whirlpool Timer
22WP3400818 Whirlpool Screw
238566052 Whirlpool Bracket
24W10450281 Whirlpool Wire Harness
