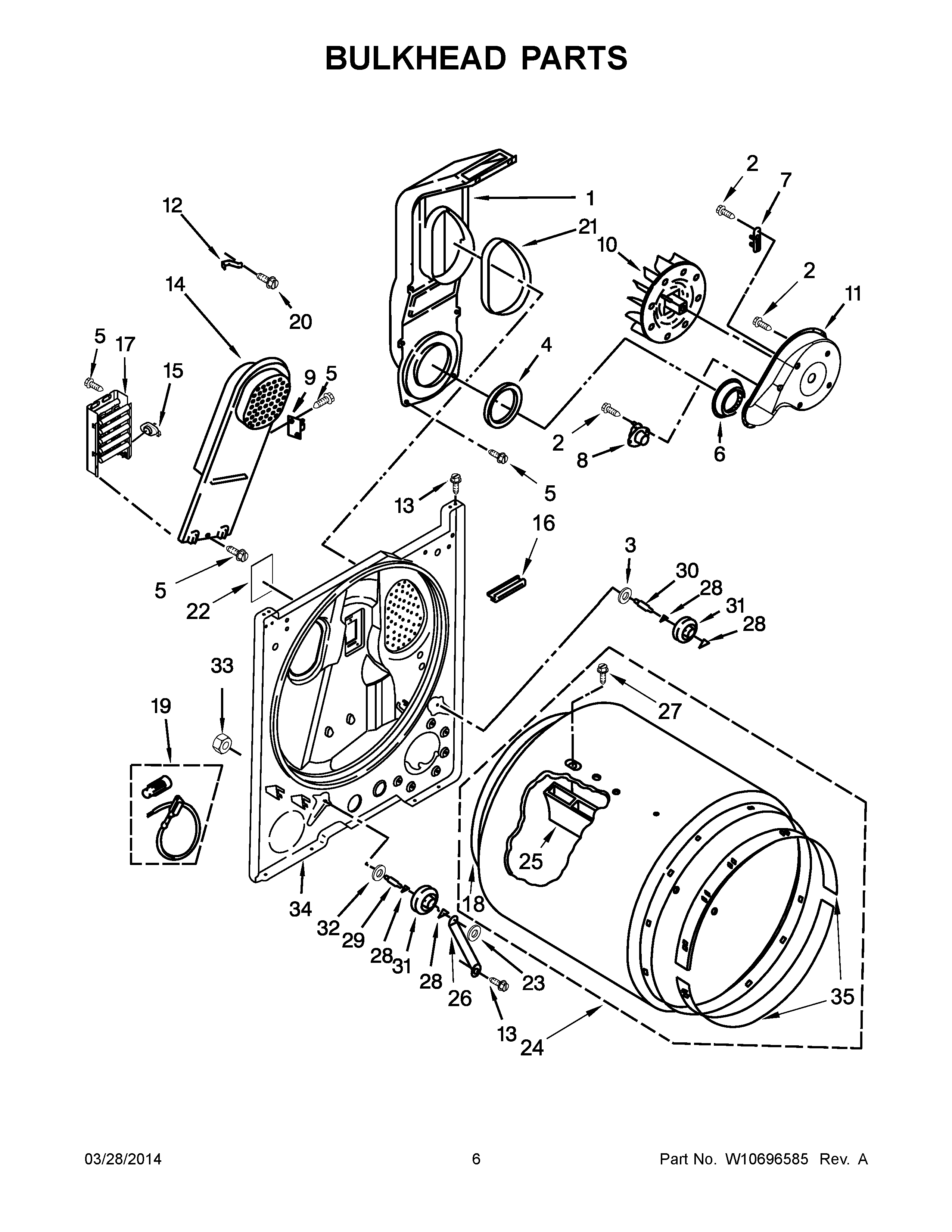

WED4890BQ0 04 – BULKHEAD PARTS

Products

Position	Product
1	279505 Whirlpool Chute
2	WP488729 Whirlpool Refrigerator Door Screw
3	WP3388703 Whirlpool Washer
4	W11415783 Whirlpool Seal
5	WP90767 Whirlpool Screw
6	W11233063 Whirlpool Shield Assembly
7	WP3392519 Whirlpool Dryer Thermal Fuse
8	WP3387134 Whirlpool Dryer Cycling Thermostat
9	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	CLIP, HEATER BOX
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977767 Whirlpoo Dryer High Limit Thermostat
16	686889 Whirlpool Pad
17	279838 Whirlpool Dryer Heating Element 5400W
18	W10612022 Whirlpool Felt Seal
19	279457 Whirlpool Dryer Heating Element Wide Spade Connection
20	WP489463 Whirlpool Refrigerator Screw
21	SEAL
22	W11409002 Whirlpool Pad
23	WP90296 Whirlpool Clip
24	W10502620 Whirlpool Drum
25	8565688 Whirlpool Drum Baffle
26	W11684613 Whirlpool Bracket
27	W10853898 Whirlpool Screw
28	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
29	SHAFT SUPPORT ROLLER DRYER
30	SHAFT SUPPORT ROLLER DRYER
31	349241T Whirlpool Dryer Drum Support Roller Kit
32	WP348197 Whirlpool Washer Assembly
33	W11229607 Whirlpool Nut
34	W11178667 Whirlpool Bulkhead Assembly
35	279441 Whirlpool Front Bearing Ring
