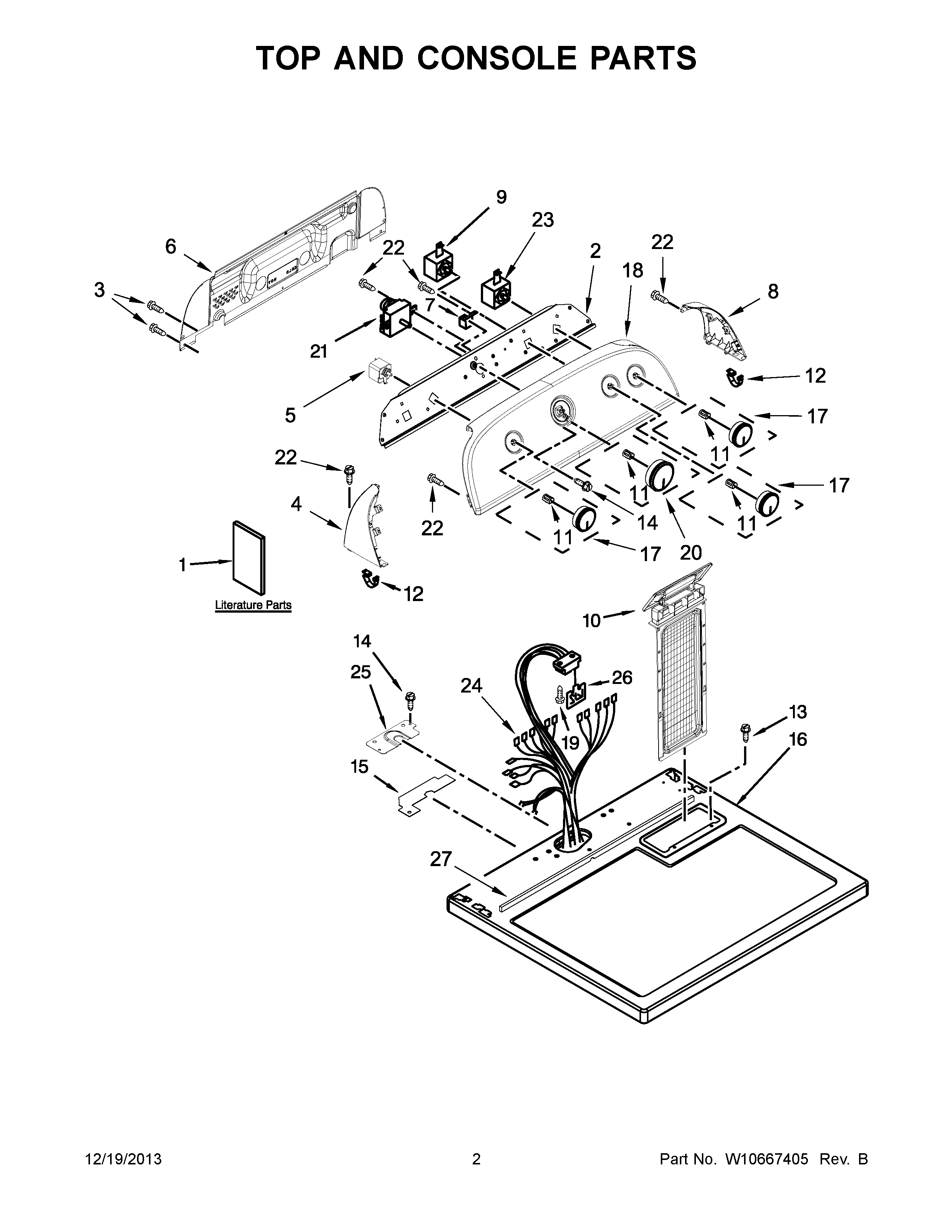

WED4890BW0 02 – TOP AND CONSOLE PARTS

WED4890BW0 02 – TOP AND CONSOLE PARTS

Written by

in

WED4890BW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1USE AND CARE GUIDE
1INSTALLATION INSTRUCTIONS
2BRACKET, CONTROL
3WP693995 Whirlpool Screw
4WPW10520782 Whirlpool Panel
5WP3405156 Whirlpool Switch
6W10556829 Whirlpool Rear Panel
7WP694419 Whirlpool Buzzer Adjuster
8WPW10520780 Whirlpool Panel
9WP8578352 Whirlpool Temperature Switch
10W10641708 Whirlpool Screen
11WP8536939 Whirlpool Spring Clip
12WP8312709 Whirlpool Endcap Clip
13W11693756 Whirlpool Screw Assembly
14WP3400818 Whirlpool Screw
15SEAL, HARNESS
16WP8563663 Whirlpool Top Assembly
17WPW10576637 Whirlpool Knob
18W10557241 Whirlpool Control Panel
19SCREW
20WPW10576635 Whirlpool Knob Assembly
21TIMER
22WP90767 Whirlpool Screw
23WPW10117655 Whirlpool Dryer Start Switch
24W10565798 Whirlpool Wire Harness
25BRACKET, HARNESS
26WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
27W10316616 Whirlpool Seal
