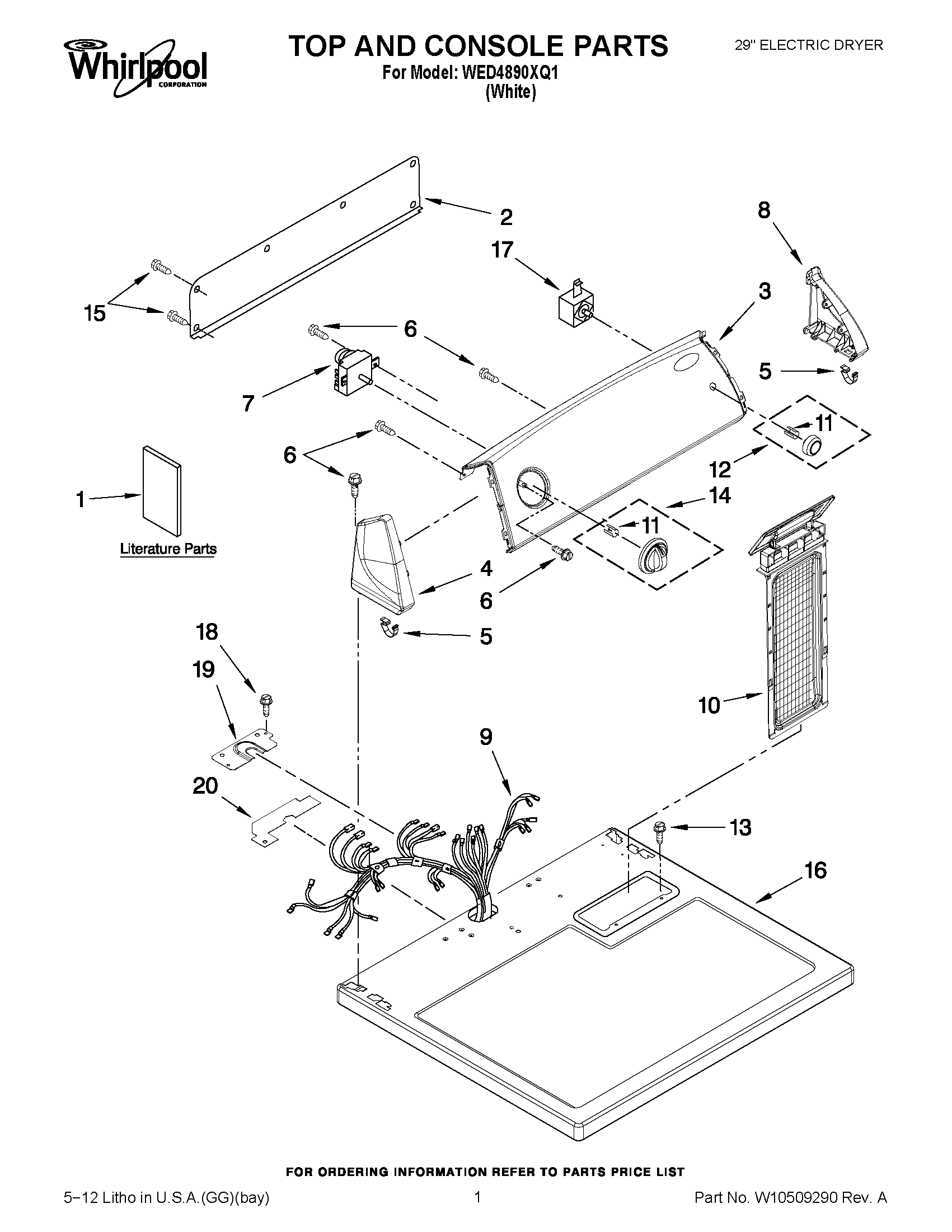

WED4890XQ1 01 – TOP AND CONSOLE PARTS

WED4890XQ1 01 – TOP AND CONSOLE PARTS

Written by

in

WED4890XQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1WIRING DIAGRAM
1GUIDE, USE AND CARE
2W10103406 Whirlpool Rear Panel
3PANEL, CONSOLE & CONTROL BRACKET ASSEMBLY
4WP8565957 Whirlpool Endcap Assembly
5WP8312709 Whirlpool Endcap Clip
6WP90767 Whirlpool Screw
7WPW10185976 Whirlpool Timer
8WP8565954 Whirlpool Endcap
9HARNESS, WIRING
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12W10034770 Whirlpool Knob Assembly
14TIMER KNOB ASSEMBLY
15WP693995 Whirlpool Screw
16WP8563663 Whirlpool Top Assembly
17WP3977456 Whirlpool Start Switch
18W11693756 Whirlpool Screw Assembly
19BRACKET, HARNESS
20SEAL, HARNESS
