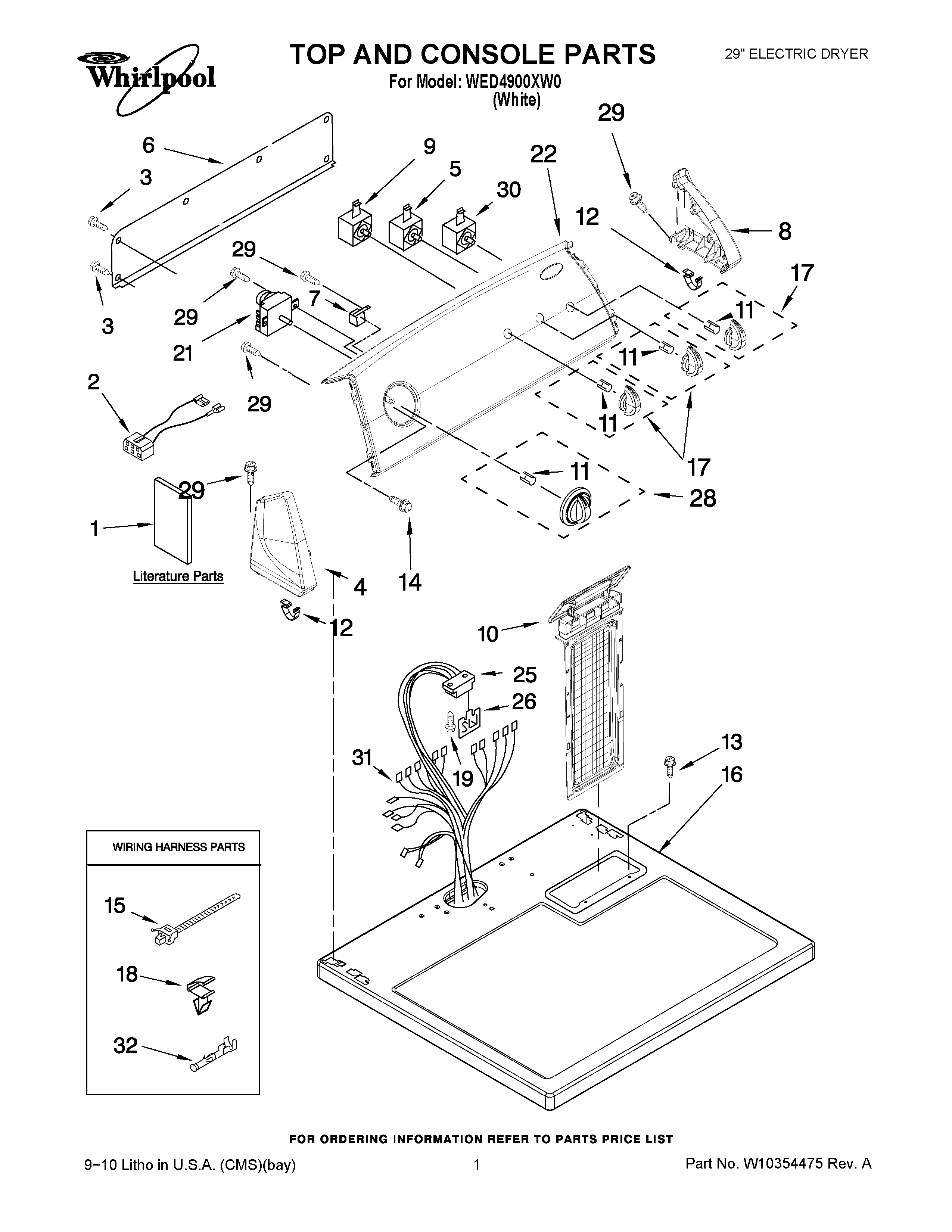

WED4900XW0 01 – TOP AND CONSOLE PARTS

WED4900XW0 01 – TOP AND CONSOLE PARTS

Written by

in

WED4900XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1GUIDE, USE AND CARE
1INSTALLATION INSTRUCTIONS
2W10113080 Whirlpool Wire Harness
3WP693995 Whirlpool Screw
4WP8565957 Whirlpool Endcap Assembly
5WP3405156 Whirlpool Switch
6W10103406 Whirlpool Rear Panel
7WP694419 Whirlpool Buzzer Adjuster
8WP8565954 Whirlpool Endcap
9WP8578354 Whirlpool Temperature Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP8312709 Whirlpool Endcap Clip
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
15WP3391018 Whirlpool Wire Tie
16WP8563663 Whirlpool Top Assembly
17Knob, Control (3)
18WP3394427 Whirlpool Clip
19SCREW
21TIMER
22WPW10295263 Whirlpool Control Panel
253391885 Whirlpool Connector
26WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
28TIMER KNOB ASSEMBLY
29WP90767 Whirlpool Screw
30WPW10117655 Whirlpool Dryer Start Switch
31W10071280 Whirlpool Wiring Harness
32WP94614 Whirlpool Terminal
