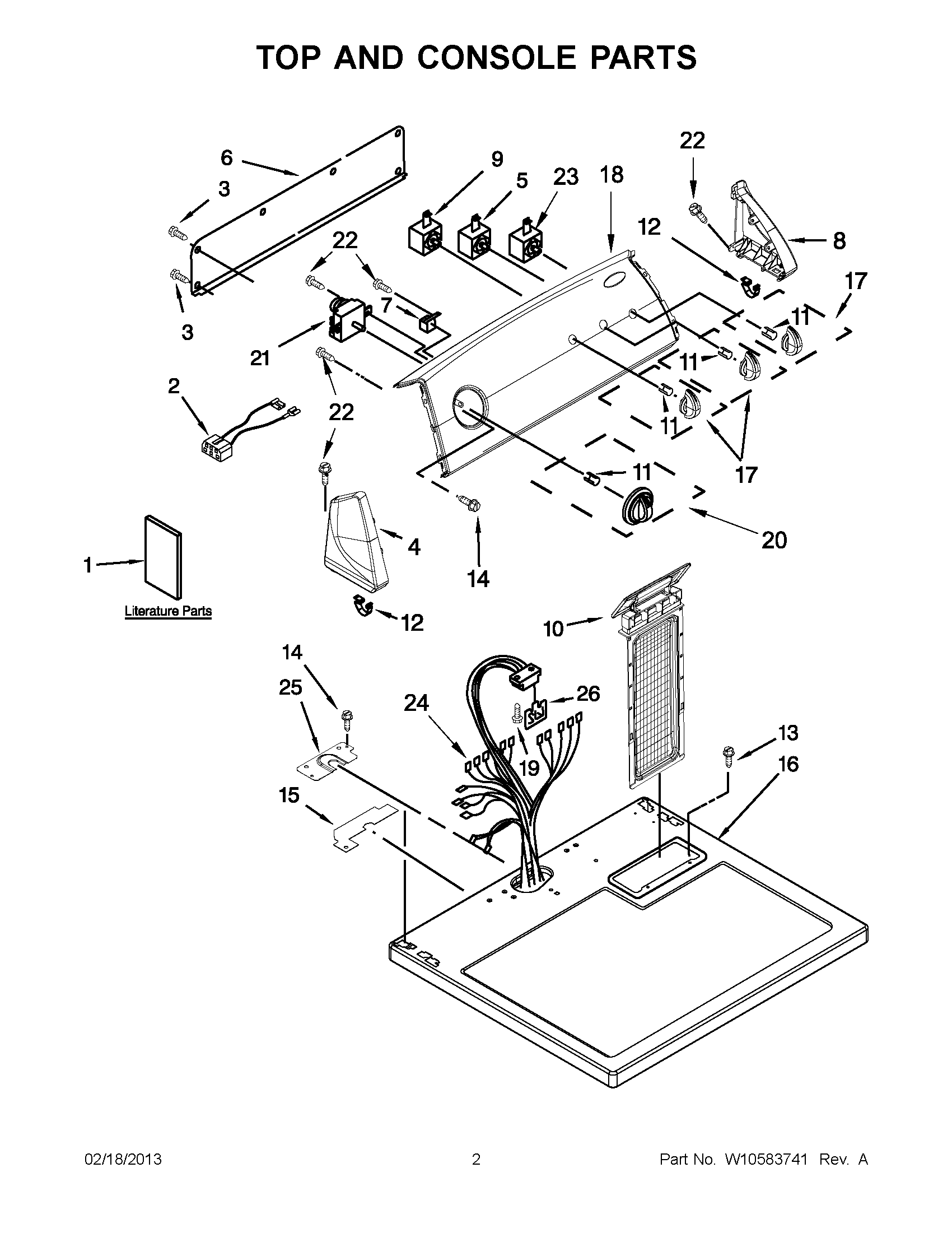

WED4900XW2 01 – TOP AND CONSOLE PARTS
Written by
in
WED4900XW2 01 – TOP AND CONSOLE PARTS
Products
Position
Product
1
MAY 8578889
1
MAY W10514172
1
GUIDE, USE & CARE
2
WIRE, JUMPER (BUZZER)
3
Screw
4
END CAP (L.H.) (WHITE)
5
MAY 3405156
6
MAY W10103406
7
MAY 694419
8
END CAP (R.H.) (WHITE)
9
MAY 8578354
10
LINT SCREEN WHITE
11
CLIP, SPRING
12
MAY 8312709
13
SCREW
14
MAY 359625
15
Seal-Harness
16
MAY 8559800
17
KNOB, CONTROL (WHITE/METALLIC)
18
CONSOLE ASSEMBLY
19
SCREW
20
KNOB, TIMER (WHITE/METALLIC)
21
TIMER ASSEMBLY (60 HZ.)
22
MAY 3348629
23
MAY W10117655
24
MAY 8576544
25
MAY W10112578
26
MAY W10476828
←
