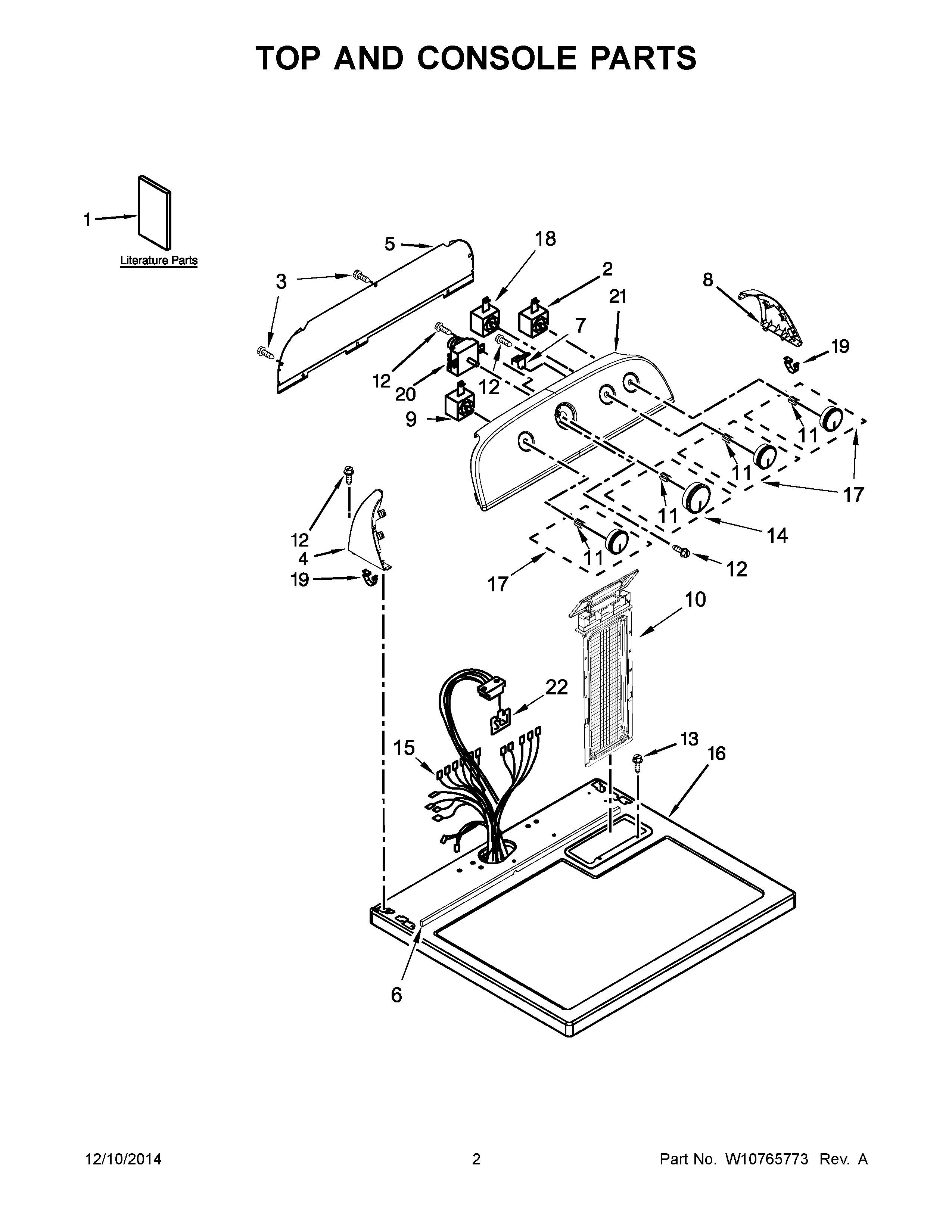

WED4915EW0 02 – TOP AND CONSOLE PARTS

WED4915EW0 02 – TOP AND CONSOLE PARTS

Written by

in

WED4915EW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1BWIRING DIAGRAM
1USE AND CARE GUIDE
1AINSTALLATION INSTRUCTIONS
2WPW10117655 Whirlpool Dryer Start Switch
3WP693995 Whirlpool Screw
4WPW10520782 Whirlpool Panel
5W10556829 Whirlpool Rear Panel
6W10316616 Whirlpool Seal
7WP694419 Whirlpool Buzzer Adjuster
8WPW10520780 Whirlpool Panel
9WP3405156 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12WP90767 Whirlpool Screw
13W11693756 Whirlpool Screw Assembly
14W10756270 Whirlpool Dryer Timer Knob
15W10640707 Whirlpool Wire Harness
16WP8563663 Whirlpool Top Assembly
18WP8578352 Whirlpool Temperature Switch
19WP8312709 Whirlpool Endcap Clip
20TIMER
21W10692608 Whirlpool Control Panel
22WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
