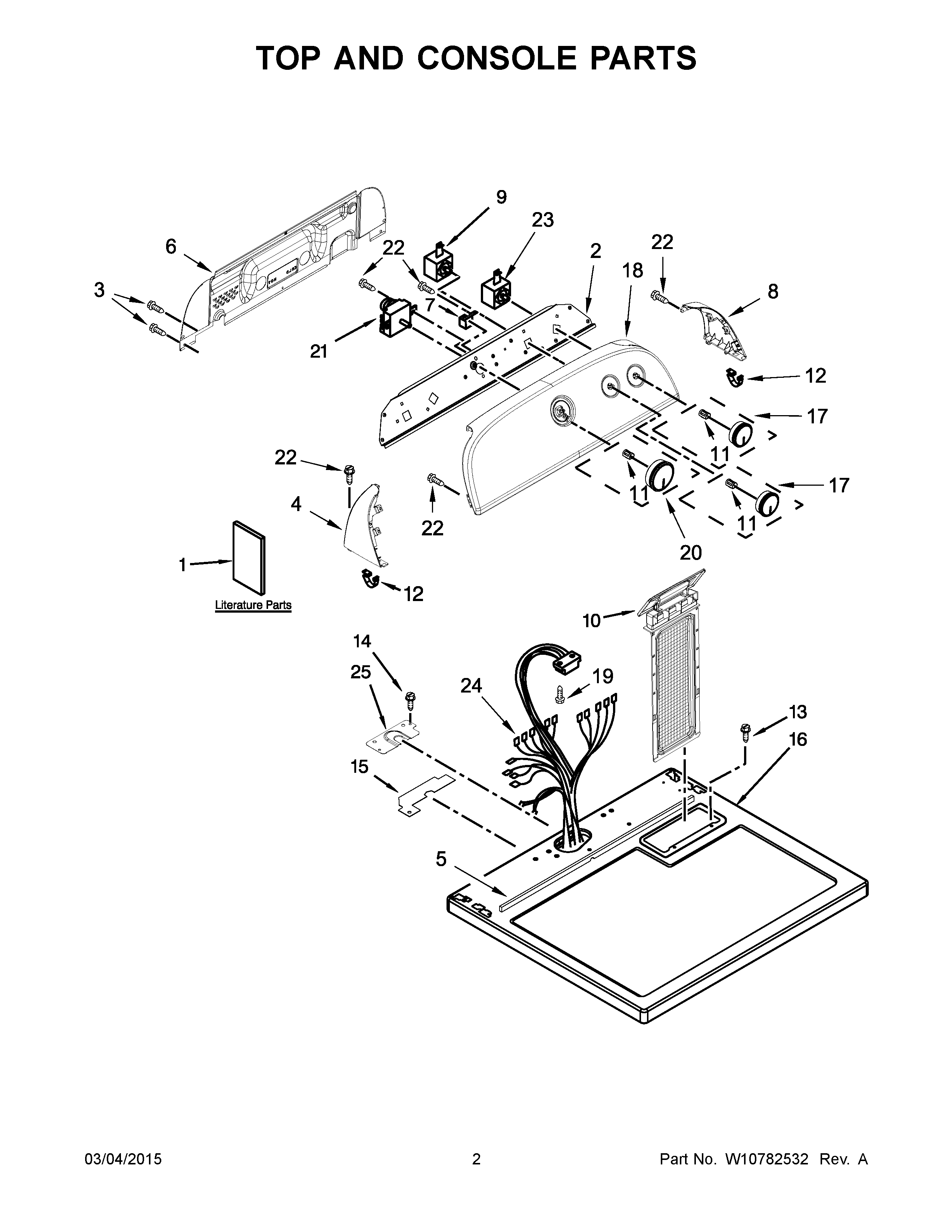

WED4995EW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	USE AND CARE GUIDE
1	INSTALLATION INSTRUCTIONS
2	BRACKET, CONTROL
3	WP693995 Whirlpool Screw
4	WPW10520782 Whirlpool Panel
5	W10316616 Whirlpool Seal
6	W10556829 Whirlpool Rear Panel
7	WP694419 Whirlpool Buzzer Adjuster
8	WPW10520780 Whirlpool Panel
9	WP3399640 Whirlpool Switch
10	W10874409 Whirlpool Lint Screen Filter
11	WP8536939 Whirlpool Spring Clip
12	WP8312709 Whirlpool Endcap Clip
13	W11693756 Whirlpool Screw Assembly
14	WP3400818 Whirlpool Screw
15	SEAL, HARNESS
16	WP8563663 Whirlpool Top Assembly
18	WPW10557237 Whirlpool Control Panel
19	SCREW
20	W10756270 Whirlpool Dryer Timer Knob
21	WPW10185982 Whirlpool Timer
22	WP90767 Whirlpool Screw
23	WPW10117655 Whirlpool Dryer Start Switch
24	W10740198 Whirlpool Wire Harness
25	BRACKET, HARNESS
