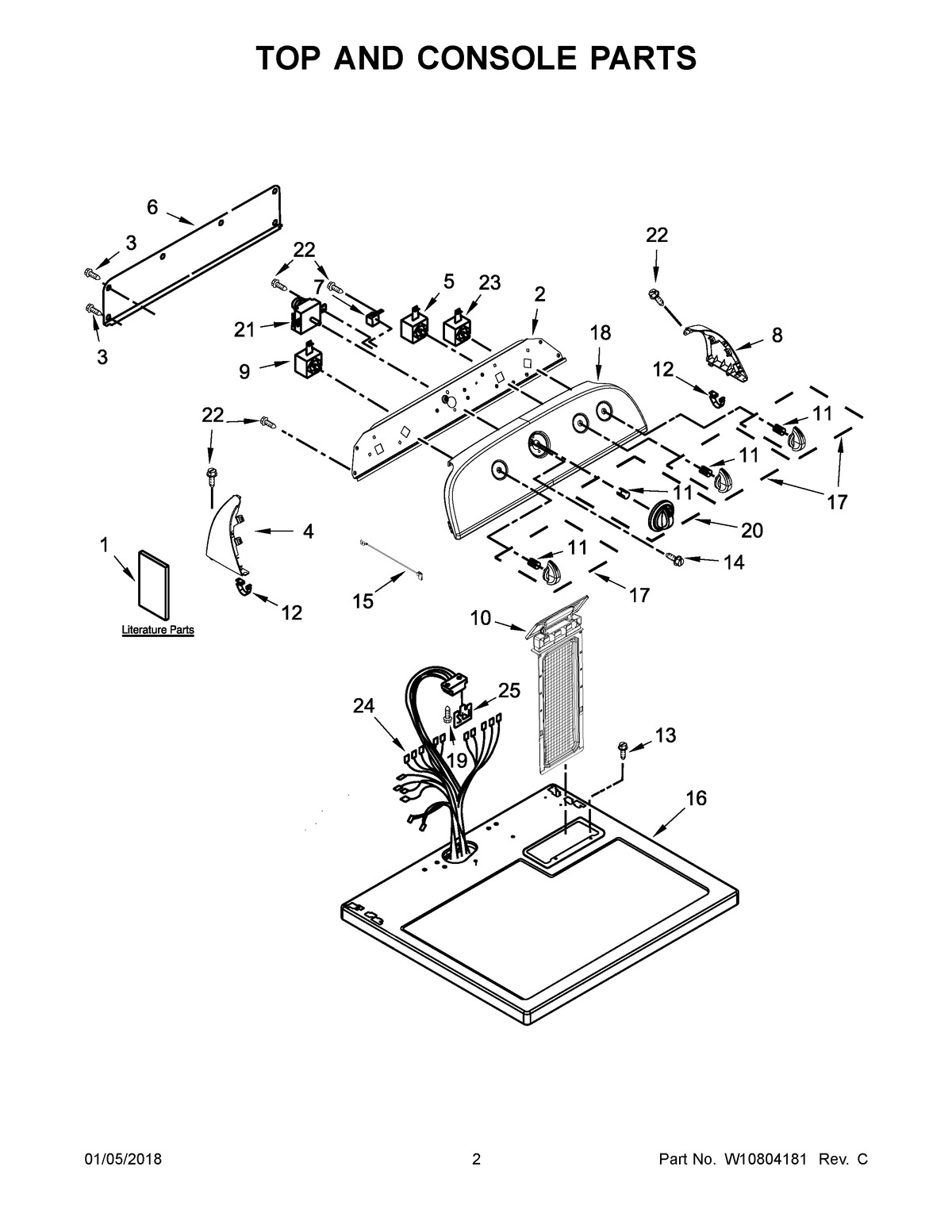

WED49STBW1 02 – TOP AND CONSOLE PARTS

WED49STBW1 02 – TOP AND CONSOLE PARTS

Written by

in

WED49STBW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AUSE AND CARE GUIDE
1INSTALLATION INSTRUCTIONS
1BWIRING DIAGRAM
2BRACKET, CONTROL
3WP693995 Whirlpool Screw
4WPW10520782 Whirlpool Panel
5WP3405156 Whirlpool Switch
6W10556829 Whirlpool Rear Panel
7WP694419 Whirlpool Buzzer Adjuster
8WPW10520780 Whirlpool Panel
9W11050715 Whirlpool Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP688805 Whirlpool Spring Clip
12WP8312709 Whirlpool Endcap Clip
13W11693756 Whirlpool Screw Assembly
14WP3400818 Whirlpool Screw
15W10853337 Whirlpool Wire
16WP8563663 Whirlpool Top Assembly
18W10671235 Whirlpool Control Panel
19SCREW
20W10756270 Whirlpool Dryer Timer Knob
21W10846428 Whirlpool Dryer Timer
22WP90767 Whirlpool Screw
23WPW10117655 Whirlpool Dryer Start Switch
24W10635674 Whirlpool Wire Harness
25WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
