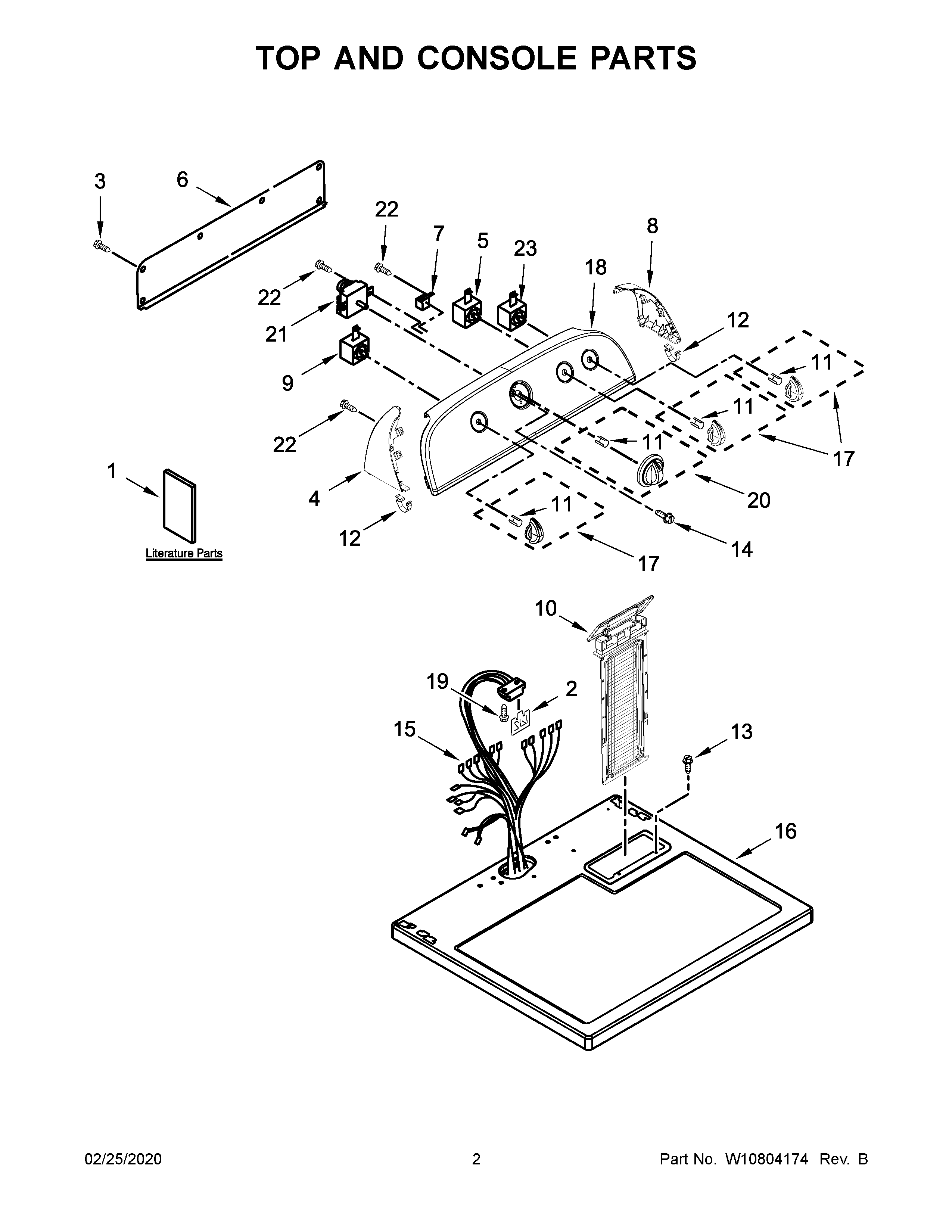

WED5000DW2 02 – TOP AND CONSOLE PARTS

WED5000DW2 02 – TOP AND CONSOLE PARTS

Written by

in

WED5000DW2 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1BWIRING DIAGRAM
1AUSE AND CARE GUIDE
2WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
3WP693995 Whirlpool Screw
4WPW10520782 Whirlpool Panel
5WP3405156 Whirlpool Switch
6W10556829 Whirlpool Rear Panel
7WP694419 Whirlpool Buzzer Adjuster
8WPW10520780 Whirlpool Panel
9WP8578352 Whirlpool Temperature Switch
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP688805 Whirlpool Spring Clip
12WP8312709 Whirlpool Endcap Clip
13W11693756 Whirlpool Screw Assembly
14WP3400818 Whirlpool Screw
15W10640707 Whirlpool Wire Harness
16WP8563663 Whirlpool Top Assembly
18W10672827 Whirlpool Control Panel
19SCREW
20W10756270 Whirlpool Dryer Timer Knob
21TIMER
22WP90767 Whirlpool Screw
23WPW10117655 Whirlpool Dryer Start Switch
