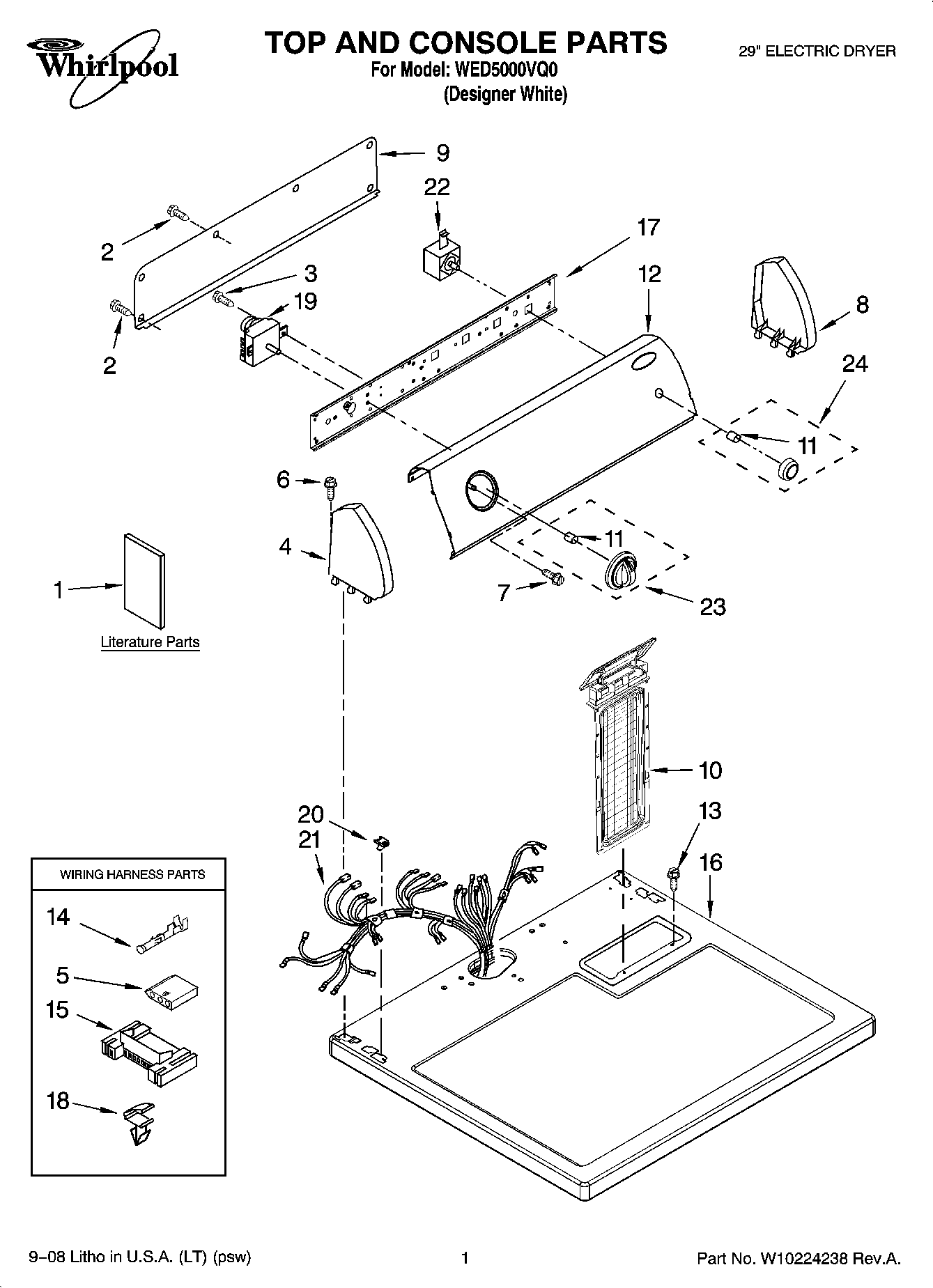

WED5000VQ0 01 – TOP AND CONSOLE PARTS

WED5000VQ0 01 – TOP AND CONSOLE PARTS

Written by

in

WED5000VQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Wiring Diagram
1Instructions, Installation
1WPL 677818
1Sheet, Cycle Feature
1Use & Care Guide
2WP693995 Whirlpool Screw
3WP90767 Whirlpool Screw
53936144 Whirlpool Connector
6WP388326 Whirlpool Screw
73400859 Whirlpool Screw
8W10820038 Whirlpool Endcap
9W10103406 Whirlpool Rear Panel
10W10874409 Whirlpool Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12Panel, Control
13W11693756 Whirlpool Screw Assembly
14WP94614 Whirlpool Terminal
153395683 Whirlpool Connector
16Top
17Bracket, Control
18WP3394427 Whirlpool Clip
19WP8299778 Whirlpool Timer
20WP357213 Whirlpool Hinge Stopper
21WPW10450292 Whirlpool Wire Harness
22WP3977456 Whirlpool Start Switch
23WP8566061 Whirlpool Knob
24WP8566065 Whirlpool Knob
